PCB Screw Terminal Blocks
- Yan Tian
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCED | |

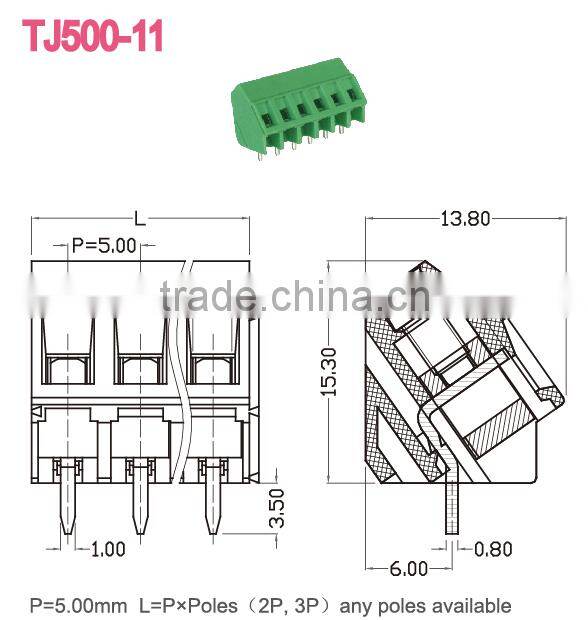

| Model Number | TJ500-11 |
Product Description
Parameters:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 |
| 300/10 |
Wire Range AWG | 12-26 |
| 12-26 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 10 | 320 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.4 | ||
Stripping Length mm | 7-8 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
