PCB Screw Terminal Blocks

PCB Screw Terminal Blocks thumbnail-1
PCB Screw Terminal Blocks photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TJ508-06
Contact Supplier Request Quote Chat Now
Shenzhen Sced Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Yan Tian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SCED
Model Number TJ508-06

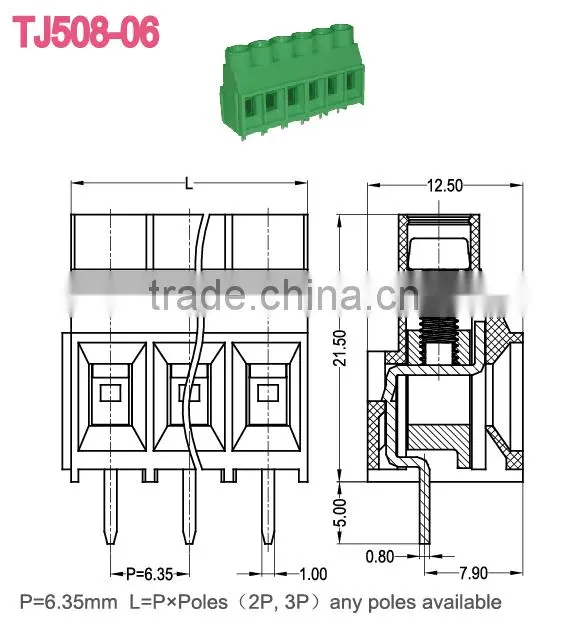

PCB screw terminal blocks



Parameters:




UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/30



 300/10

Wire Range                       AWG

12-26



 12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 32

320 / 32

630 / 32

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

4.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 /4.4-5.3













Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
