PCB Spring terminal blocks
Negotiable
/ Piece
500 Pieces(Min. Order)
- Yan Tian
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCED | |

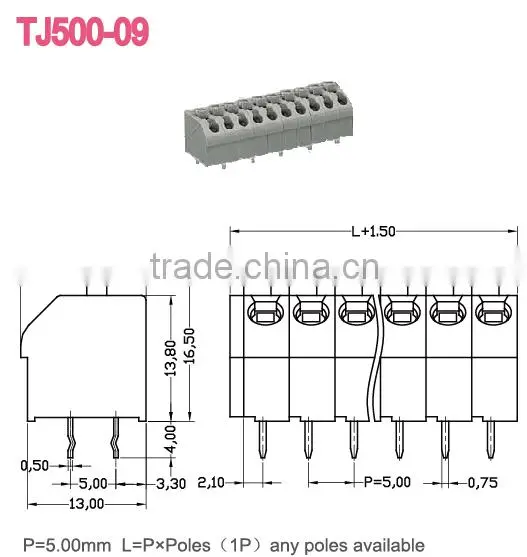

| Model Number | TJ500-09 |
Product Description
Parameters:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 |
|
|
Wire Range AWG | 14-20 |
|
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 320/10 | 320/10 | 630 /10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Spring / Plating | Stainless Steel/- | ||
Terminal / Plating | Brass/Tin plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.3 | ||
Stripping Length mm | 9-10 | ||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
