Home > Products > High Current Terminal Blocks > High Current Terminal Blocks
High Current Terminal Blocks
Negotiable
/ Piece
100 Pieces(Min. Order)
- Yan Tian
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCED | |
| Model Number | TR60-01-BCM0-N5 |
Product Description

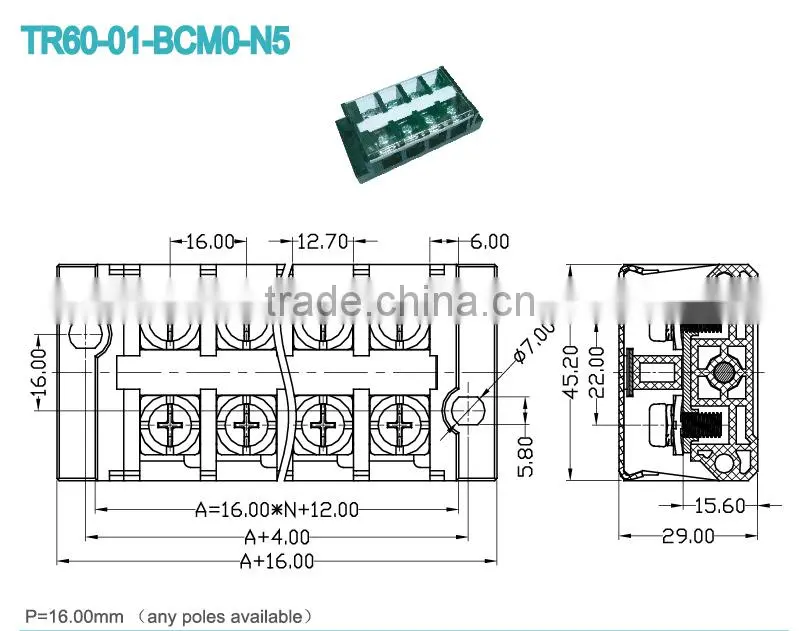

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 60 | 600 / 60 | |
Wire Range AWG | 4-20 | 4-20 | |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 60 | 1000 /60 | 1000 / 60 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 14 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel /Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 12-15 | ||
Screw Torque mm | M5 /14-18 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
