Help CenterHigh Current Terminal Blocks
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TR80-01-BM0-N2
Payment & Shipping
Payment Methods:
Port of Shipment:
Yan Tian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces -
Heavy Duty Terminal Blocks Barrier Din Rail MountNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TR80-01-BM0-N2

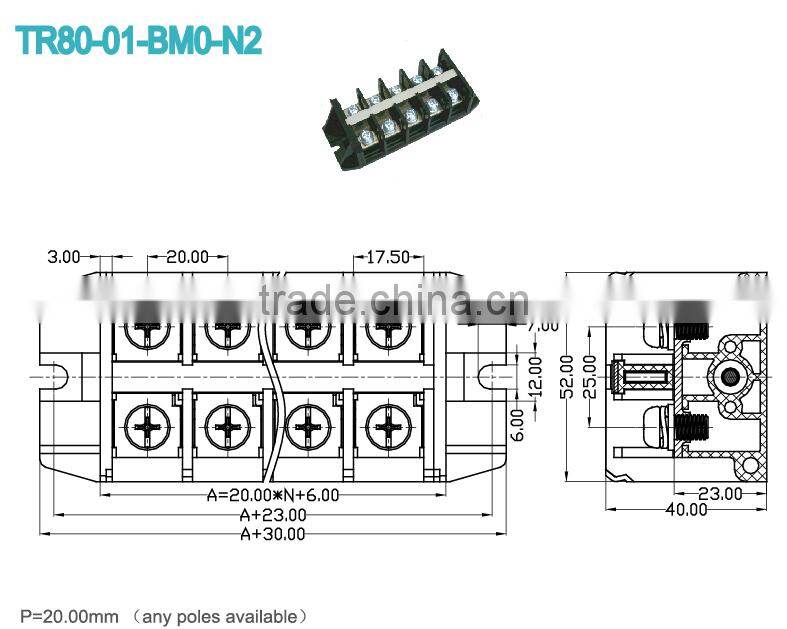

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 80 | 600 / 80 | |
Wire Range AWG | 4-20 | 4-20 | |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 80 | 1000 /80 | 1000 / 80 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 22 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel /Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 12-15 | ||
Screw Torque mm | M6 /18-22 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
