PERT pipe fittings end cap for underfloor heating system

FOB Price

USD $0.21 - $1.12 / Piece

500 Pieces(Min.Order)

Supply Ability 150000 Ton / Tons per Month
Port TIANJIN PORT
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Plastic	Technics	Other, INJECTION
Type	Cap	Place of Origin	Tianjin, China
Model Number	JXGY-336	Brand Name	JUNXING
Connection	Other, fusion, press fittings,compression fittings,hot fusion fittings	Shape	Equal
Head Code	Other, round

Product Description

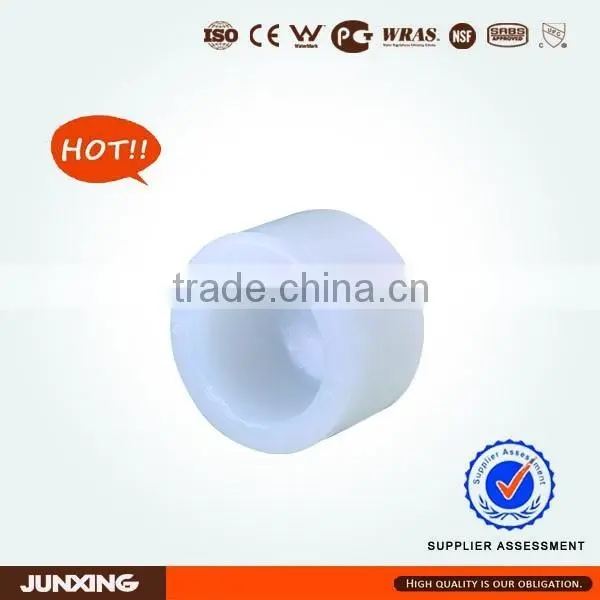

PERT pipe fittings end cap for underfloor heating system

Product Description

PE-RT pipes produced by the polyethylene of raw material, transparent for all, is the most common under floor heating pipe at preaent.Pipes nexine is smooth, it can reduce the blocking phenomena by the residuum in the water: good flexibility, easy to install and carry: resistance to low temperature and frost crack, service life up to 50 years.

Features:

1. Good thermal stability and long-term pressure resistance

2. In conformity with potable water hygienic standard,

3.Strong impact resistance

4. Good flexibility

5. Easy to be connected (hot-melt connection or mechanical connection)

6.Good thermal conductivity

7.Good processing property

8.Can be recycled, good to the environment.

Name	Pert fittings
Brand	Junxing
Material	pert
Color	white,orange,red,etc
Material	LG SP980,SK DX800,Basell 4731B
Certificate	EN22391
Equal coupling	dn20~dn32
Reducing 90 elbow	dn2520~dn3225
Equal 90 elbow	dn20~dn32
Equal tee	dn20~dn32
45°elbow	dn20~dn63
Reducing coupling	dn2520~dn3225
End cap	dn20~dn32
Female/male threaded coupling	dn201/2″~dn321″
Female/male threaded elbow	dn201/2″~dn321″
Female/male threaded tee	dn201/2″~dn321″
Reducing tee	dn202520~dn253225
Female/male threaded union	dn201/2″~dn321″
Over bend	dn20~dn32
Hot fusion brass stop valve	dn20~dn32
Double plastic end union	dn20~dn32
Single fusion brass ball valve	dn201/2″~dn321″
Single female/male brass ball valve	dn201/2″~dn321″

Specifications(unit:mm):

end cap	20
	25
	32

Choice of S

Design pressure	Pipe Series S
Design pressure	20℃ 50years σs =7.36MPa	S1 σs =3.06MPa	S2 σs =2.15MPa	S4 σs =3.34MPa	S5 σs =2.02MPa
0.4	6.3	6.3	5	6.3	5
0.6	6.3	5	3.2	5	3.2
0.8	6.3	3.2	2.5	4	2.5
1.0	6.3	2.5	--	3.2	--

Applications:

1. Heating system pipelines for floor, wall, roof and street.

2. Industrial and residential water system, water supply system of geothermal water

3. Pipeline system of pure water, mineral water, drinking water and sanitary water

4. Central air-condition pipeline system

Product	Working Pressure	Size(mm)	Quantity(Meters/Unit)
PEXa pipe, PEXb pipe, PEX/EVOH pipe, PERT pipe, PERT/EOVH pipe.	S5, 1.25Mpa	16x1.8	100 to 500 Meters/roll, 5.8Meters, 11.8Meters or customized per piece.
		20x2
		25x2.3
		32x2.9
	S4, 1.6Mpa	16x2
		20x2.3
		25x2.8
		32x3.6
	S3.2, 2.0Mpa	20x2.8
		25x3.5
		32x4.4

The maximum working temperature for the above pipe is 95 centigrade.

Product	Working Pressure	Size(mm)	Quantity(Meters/Unit)
PB pipe, PB/EVOH pipe PBR pipe	S5, 1.25Mpa	20x2	100 to 500 Meters/roll, 5.8Meters, 11.8Meters or customized per piece.
		25x2.3
		32x2.9
		40x3.7
		50x4.6
	S4, 1.6Mpa	20x2.3
		25x2.8
		32x3.6
		40x4.5
		50x5.6
	S3.2, 2.0Mpa	20x2.8
		25x3.5
		32x4.4
		40x5.5
		50x6.9

The maximum working temperature for the above pipe is 110 centigrade.

1. The raw material for our PEXa pipe is LG XL1800 from South Korea.

2. The raw material for our PEXb pipe is LG XL6500 from South Korea.

3. The raw material for our PEXa pipe is LG SP980 from South Korea, SK DX800 from South Korea.

4. The raw material for our PB pipe is LyondellBasell 4235 from Netherland.

The production line of our underfloor heating pipe is high speed Battenfeld-Cincinnati from Germany.
