PERT Pipe Fittings Equal Coupling for Underfloor Heating System
- TIANJIN PORT
- T/T Credit Card
You May Like
-
Double Thermal Fusion Fittings Female Threaded Coupling for PERT-AL-PERT Pipe
-
Double Thermal Fusion Fittings Reducing 90 Elbow for PERT-AL-PERT Pipe
-
Double Thermal Fusion Fittings Reducing Tee for PERT-AL-PERT Pipe
-
Double Thermal Fusion Fittings Equal Tee for PERT-AL-PERT Pipe
-
Double Thermal Fusion Fittings Male Threaded Coupling for PERT-AL-PERT Pipe
-
Double Thermal Fusion Fittings Male Threaded Union for PERT-AL-PERT Pipe
Product Details
| Material | Plastic | Technics | Other, INJECTION | |
| Type | Coupling | Place of Origin | Tianjin, China | |
| Model Number | JXGY-328 | Brand Name | JUNXING | |
| Connection | Other, fusion, press fittings,compression fittings,hot fusion fittings | Shape | Equal | |
| Head Code | Other, round |
Product Description

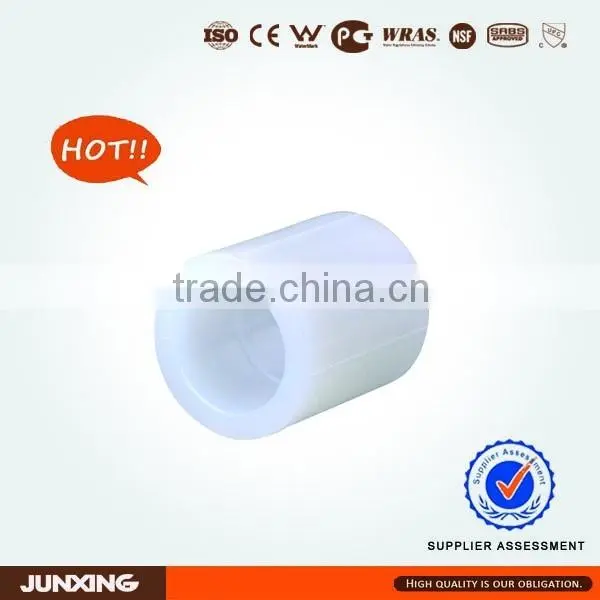

PERT pipe fittings equal coupling for underfloor heating system
PE-RT pipes produced by the polyethylene of raw material, transparent for all, is the most common under floor heating pipe at preaent.Pipes nexine is smooth, it can reduce the blocking phenomena by the residuum in the water: good flexibility, easy to install and carry: resistance to low temperature and frost crack, service life up to 50 years.
Features:
1. Good thermal stability and long-term pressure resistance
2. In conformity with potable water hygienic standard,
3.Strong impact resistance
4. Good flexibility
5. Easy to be connected (hot-melt connection or mechanical connection)
6.Good thermal conductivity
7.Good processing property
8.Can be recycled, good to the environment.
| Name | Pert fittings |
| Brand | Junxing |
| Material | pert |
| Color | white,orange,red,etc |
| Material | LG SP980,SK DX800,Basell 4731B |
| Certificate | EN22391 |
| Equal coupling | dn20~dn32 |
| Reducing 90 elbow | dn25*20~dn32*25 |
| Equal 90 elbow | dn20~dn32 |
| Equal tee | dn20~dn32 |
| 45°elbow | dn20~dn63 |
| Reducing coupling | dn25*20~dn32*25 |
| End cap | dn20~dn32 |
| Female/male threaded coupling | dn20*1/2″~dn32*1″ |
| Female/male threaded elbow | dn20*1/2″~dn32*1″ |
| Female/male threaded tee | dn20*1/2″~dn32*1″ |
| Reducing tee | dn20*25*20~dn25*32*25 |
| Female/male threaded union | dn20*1/2″~dn32*1″ |
| Over bend | dn20~dn32 |
| Hot fusion brass stop valve | dn20~dn32 |
| Double plastic end union | dn20~dn32 |
| Single fusion brass ball valve | dn20*1/2″~dn32*1″ |
| Single female/male brass ball valve | dn20*1/2″~dn32*1″ |
Specifications(unit:mm):
| equal coupling | 20 | |
| 25 | ||
| 32 | ||
Choice of S
Design pressure | Pipe Series S | ||||
20℃ 50years σs =7.36MPa | S1 σs =3.06MPa | S2 σs =2.15MPa | S4 σs =3.34MPa | S5 σs =2.02MPa | |
0.4 | 6.3 | 6.3 | 5 | 6.3 | 5 |
0.6 | 6.3 | 5 | 3.2 | 5 | 3.2 |
0.8 | 6.3 | 3.2 | 2.5 | 4 | 2.5 |
1.0 | 6.3 | 2.5 | -- | 3.2 | -- |
Applications:
1. Heating system pipelines for floor, wall, roof and street.
2. Industrial and residential water system, water supply system of geothermal water
3. Pipeline system of pure water, mineral water, drinking water and sanitary water
4. Central air-condition pipeline system
| Product | Working Pressure | Size(mm) | Quantity(Meters/Unit) |
PEXa pipe, PEXb pipe, PEX/EVOH pipe, PERT pipe, PERT/EOVH pipe. | S5, 1.25Mpa | 16x1.8 |
5.8Meters, 11.8Meters or customized per piece. |
| 20x2 | |||
| 25x2.3 | |||
| 32x2.9 | |||
| S4, 1.6Mpa | 16x2 | ||
| 20x2.3 | |||
| 25x2.8 | |||
| 32x3.6 | |||
| S3.2, 2.0Mpa | 20x2.8 | ||
| 25x3.5 | |||
| 32x4.4 |
The maximum working temperature for the above pipe is 95 centigrade.
| Product | Working Pressure | Size(mm) | Quantity(Meters/Unit) |
PB pipe, PB/EVOH pipe PBR pipe | S5, 1.25Mpa | 20x2 | 100 to 500 Meters/roll, 5.8Meters, 11.8Meters or customized per piece. |
| 25x2.3 | |||
| 32x2.9 | |||
| 40x3.7 | |||
| 50x4.6 | |||
| S4, 1.6Mpa | 20x2.3 | ||
| 25x2.8 | |||
| 32x3.6 | |||
| 40x4.5 | |||
| 50x5.6 | |||
| S3.2, 2.0Mpa | 20x2.8 | ||
| 25x3.5 | |||
| 32x4.4 | |||
| 40x5.5 | |||
| 50x6.9 |
The maximum working temperature for the above pipe is 110 centigrade.
1. The raw material for our PEXa pipe is LG XL1800 from South Korea.
2. The raw material for our PEXb pipe is LG XL6500 from South Korea.
3. The raw material for our PEXa pipe is LG SP980 from South Korea, SK DX800 from South Korea.
4. The raw material for our PB pipe is LyondellBasell 4235 from Netherland.
The production line of our underfloor heating pipe is high speed Battenfeld-Cincinnati from Germany.
Sample Availability & Policy
We will provide free samples with the freight paid by our clients.But if you shows sincerity,it depends.
Guarantees/Warranties/Terms and Conditions
We guarantee our products to be free from manufacturer defects.
Export/Import Processing Support
We handle all our raw plastic materials which is imported from abroad and guarantee for the delivery time for the products.
After Sales Service
We have Customer Service personnel to help you to solve all the problems in efficient way.
