Home > Products > gel seal closures > ZY-GC-78ANT Antenna weather proofing 7/8" cable to Antenna, quick seal of coaxial connector at cell site
ZY-GC-78ANT Antenna weather proofing 7/8" cable to Antenna, quick seal of coaxial connector at cell site
- 20000 Piece / Pieces per Month
- xiamen
- T/T Credit Card PayPal
- 136-174MHz rf directional coupler 200W N female connector
- Low pim -150dBc 10dB power tapper 800-2700MHz N type,
- 2.4G 802.11b/g/n 20W WIFI Signal Booster with 1000mW 2.4GHz wifi signal booster 20W for 5km outdoor wifi
- 2.4GHz 802.11b/g/n 5W WIFI Signal Booster ( 1000mW 2.4G WIFI amplifier For out door 5W wifi booster )
- 5.8GHz 802.11a/n 2w Signal Booster ( outdoor wifi signal booster for 1000mW 2w amplifier )
- 802.11b/g/n 1000mW 5W 2.4GHz WIFI Signal Booster ( 2.4G WIFI Signal Amplifier For WLAN )
Product Details
Place of Origin: | China | Brand Name: | Zhongyu | Model Number: | ZY-GC-78ANT |
Product Description

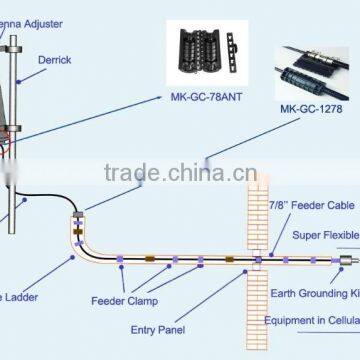

The Zhongyu gel closure is a weatherproofing system for sealing coaxial cable jumper-to-feeder, jumper-to-antenna and grounding kit connectors exposed to the outside environment. The housing contains an innovative gel material and provides an efficient moisture block effectively water-proofing the connectors. The ease of installation and the long term protection makes it a reliable and cost effective sealing solution for outside plant cables and connectors.
In-line transitions (Jumper-to-feeder):
Model No. | Description | Jumper Cable | Feeder Cable |
ZY-GC-1278 | Gel closure for jumper 1/2’’ to feeder 7/8’’ | 1/2’’ | 7/8’’ |
ZY-GC-12114 | Gel closure for jumper 1/2’’ to feeder 1-1/4’’ | 1/2’’ | 1-1/4’’ |
ZY-GC-12158 | Gel closure for jumper 1/2’’ to feeder 1-5/8’’ | 1/2’’ | 1-5/8’’ |
Antenna transitions (Jumper-to-antenna):
Model No. | Description | Jumper Cable | Antenna |
ZY-GC-12ANT | Gel closure for jumper 1/2’’ to antenna | 1/2’’ | standard |
ZY-GC-12ANTS | Short version gel closure for jumper to antenna | 1/2’’ | standard |
ZY-GC-78ANT | Gel closure for feeder 7/8’’ to antenna | 7/8’’ | standard |
In-line transitions (Feeder-to-RRU):
Model No. | Description | Feeder Cable | RRU N Connector |
ZY-GC-12SN | Gel closure for feeder 1/2’’ super flexible cable to RRU N connector | 1/2’’ super flexible cable | N connector |
ZY-GC-38N | Gel closure for feeder 3/8’’ cable to RRU N connector | 3/8’’ | N connector |
Grounding kit closure:
Model No. | Description | Grounding Kit Cable |
ZY-GC-12G | Gel closure for 1/2’’ grounding kit | 1/2’’ Cable |
ZY-GC-78G | Gel closure for 7/8’’ grounding kit | 7/8’’ Cable |
