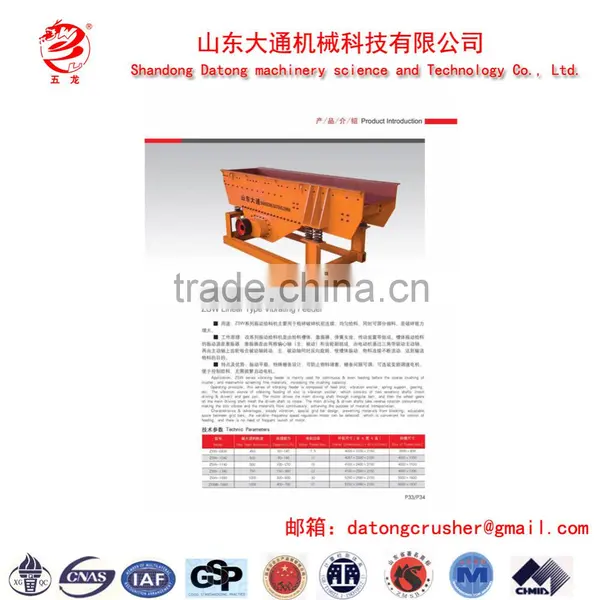

ZSW series vibrating feeder is mainly used for continuous&even feeding before the coarse crushing of crusher, and meanwhile screening fine materials, increasing the crushing capacity.
Operating principle:
This series of vibrating feeding of slot is vibration exciter, spring support, gearing, etc.The vibration source of vibrating feeding of slot is vibration exciter, which consists of two eccentric shafts(main driving&driven) and gear pair.The motor drives the main driving shaft through triangular belt, and then the wheel gears on the main driving shaft mesh the driven shaft to rotate,The main driving&driven shafts take reverse rotation concurrently, making the slot vibrate and the materials flow continuously, achieving the purpose of material transportation.
Chracteristics&advantages:
Steady vibration;special grid bar design, preventing materials from blocking;adjustable space between grid bars; the variable-frequency speed regulation motor can be selected, which is convenient for control of feeding, and there is no need of frequent launch of motor.
Main Features
2、The model for the latest products, a wide range of applications, can be used with a variety of crusher products, long service life, high efficiency.
3、The equipment is more compact, the adjustment is more stable, the speed is quick, the work efficiency is improved obviously.
4、First-class technology, reliable pre service quality. The products meet the standards of the European chief executive.
Machine Parts
Name: ZSW Linear Type Vibrating Feeder
Brand: SD-DaTong
Original:Chine
Theelectric motor drives the eccentric shaft by belt pulley to make moving jaw toothed plate move upward and downward, so as to push the moving jaw toothed plate to the fixed jaw toothed plate, to crush the material or splitting the material by doing reciprocating motion of approaching and leaving.

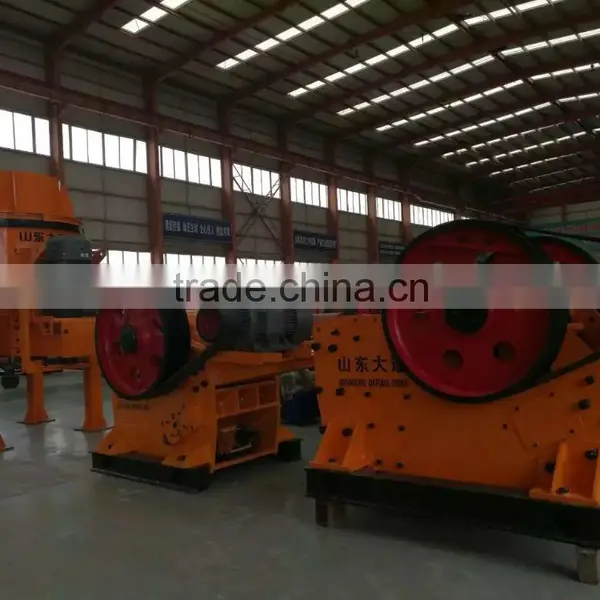

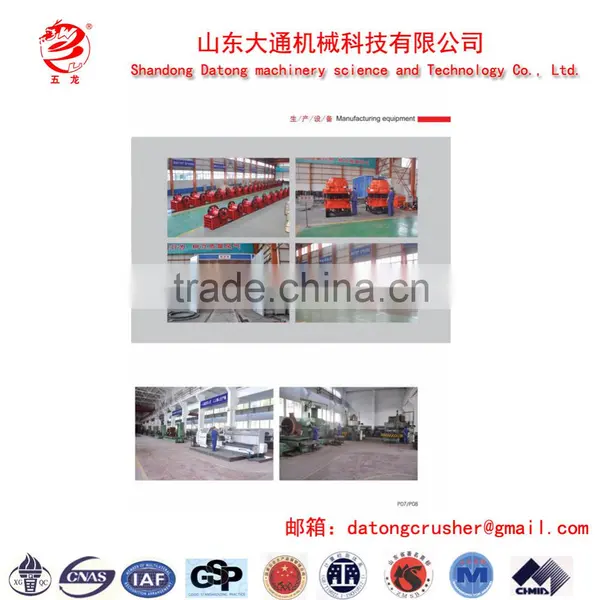

Shandong Datong production workshop
We in accordance with requirements of the African friends, for customers to provide a complete production line crusher, discharge senior engineer to site installation and training machines and provide detailed advice for operator training for customers, according to customer's on-site demand and application conditions, we help African customers choose the right equipment, drilling rigs, loaders, trucks, excavators and other equipment.
Advantages Of SD-Datong Stone Production Line
Name:Vibrating Feeder
Brand:SD-DaTong
Original: Chine
1、First-class technology;
2、Complete stone production line,the Crusher near to turn-key project
3、Fixed or mobile choice
4、With the approval of the chief executive of reliable quality, the products meet the European standards
5、Design, function is updated every year, taking into account the cost savings, the formation of its own unique design, improve the user's ability to think.
6、Invention patent technology.
Pre-Sales Service
1、 Inquiry and consulting support.
2、Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.
3、 View our Factory.Field trips to sell products
After-Sales Service
1、After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process
2、After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
