3 axles flatbed semi-trailer 35ton

Specifications

3 axles flatbed semi-trailer 35ton
factory sale
short lead time
small order accepted
best price

3 axles flatbed semi-trailer 35ton



Standard Specification
Model	JDF9402TP
Demension(L*W*H)	13000*2500*2900  mm
Chassis(Main Beam)	Heavy duty and extra durability designed, Opting for high tensile steel
	Q345.500mm height; Top flange 16*140mm; Middle flange 10mm; Bottom flange 20*140mm, Side beam30A, Floor Steel 3mm.
	Capacity:35T
King pin	2" standard welded style
Landing gear	FUWA 19"heavy duty landing gear
Axle	Two Units of American style FUWA(brand) 16T 10 Hole Axle
Suspension	Leaf spring 90*16mm 8pcs
Tyre ( Wheel Rim)	13 units of 12.00R20 Double Coin Steel Tyre, include One spare tyre
	13 units of 8.5-20 Wheel rim
Brake	Two unis of WABCO RE 6 relay valve;Four units of T30/30 Spring brake chamber
	Two units of T30 Spring brake chamber
	Two units of reliable local brand 40L air tank
Electric	International standard 24v circuit 7-pin ISO socket
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Sand blasting processing clean rust
	1 coat of anticorrosive primer
	2 coats of finish urethane paint color at customer’s choice
Other	One spare tyre holder; one box with a set of standard trailer tool
	Distant from King pin to the front part: 450mm
Packing	Transfer to Shanghai port, and carry by ro-ro ship, the ocean freight depends on the voulumn

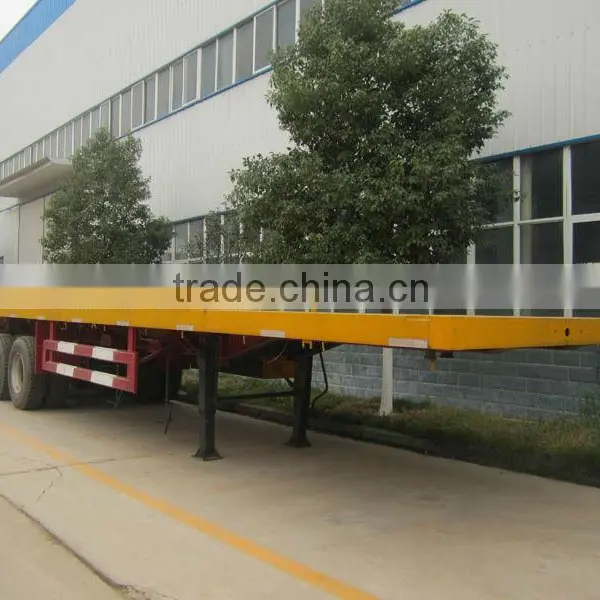

More image of the 3 axles flatbed semi trailer :
