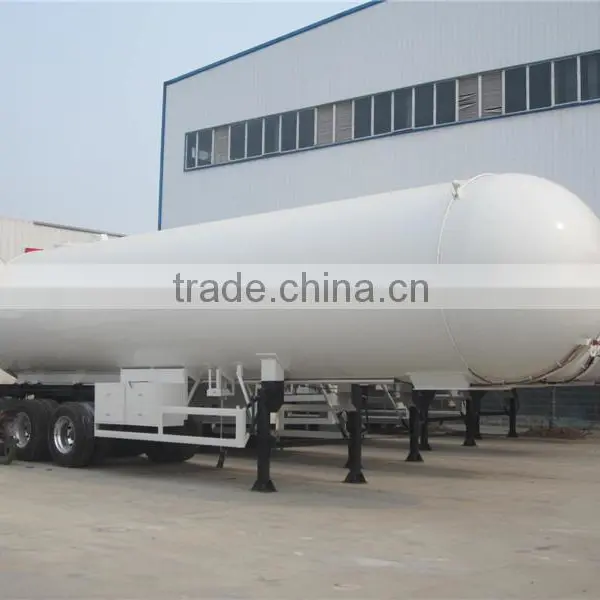

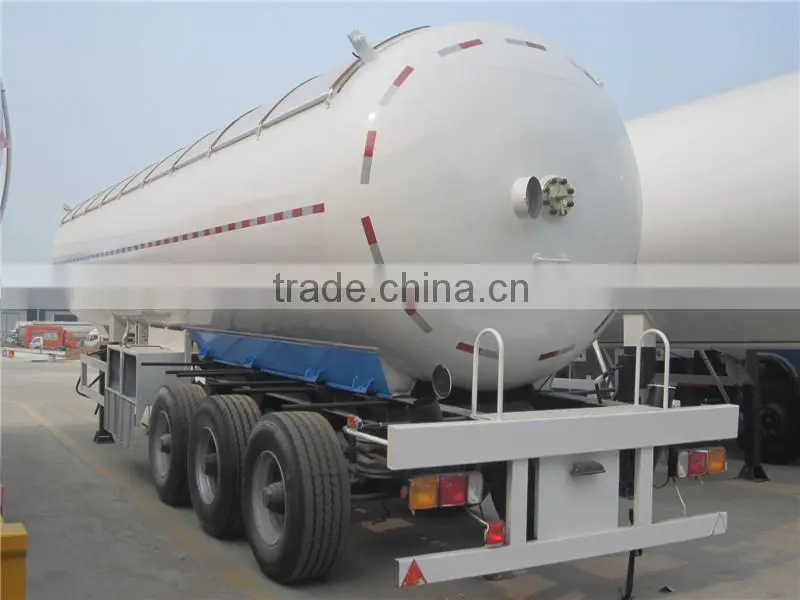

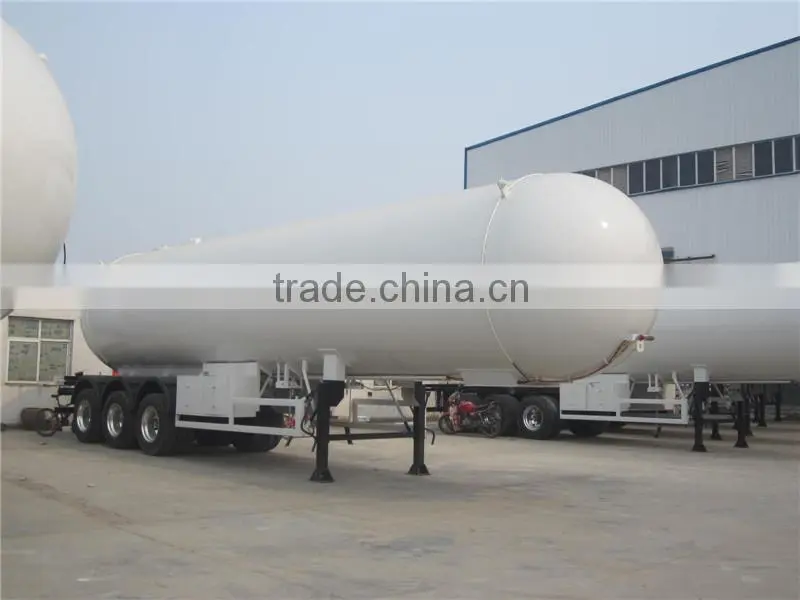

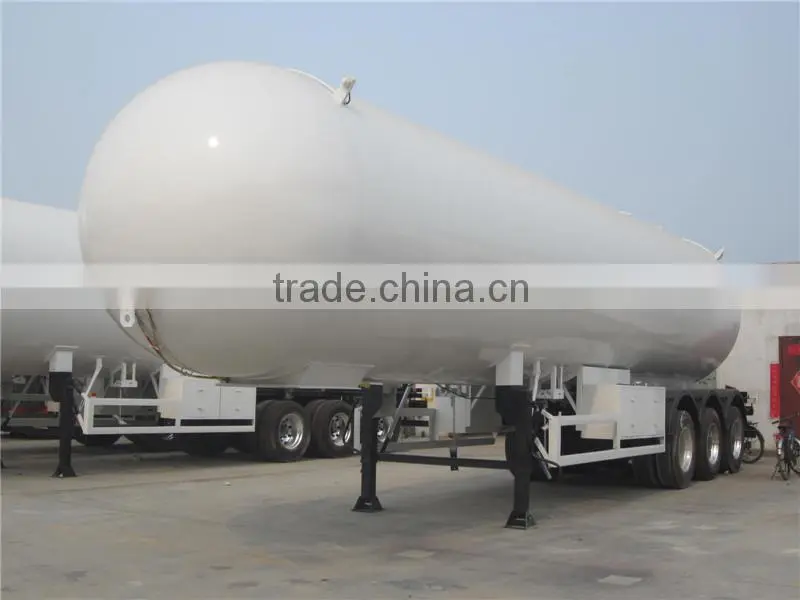

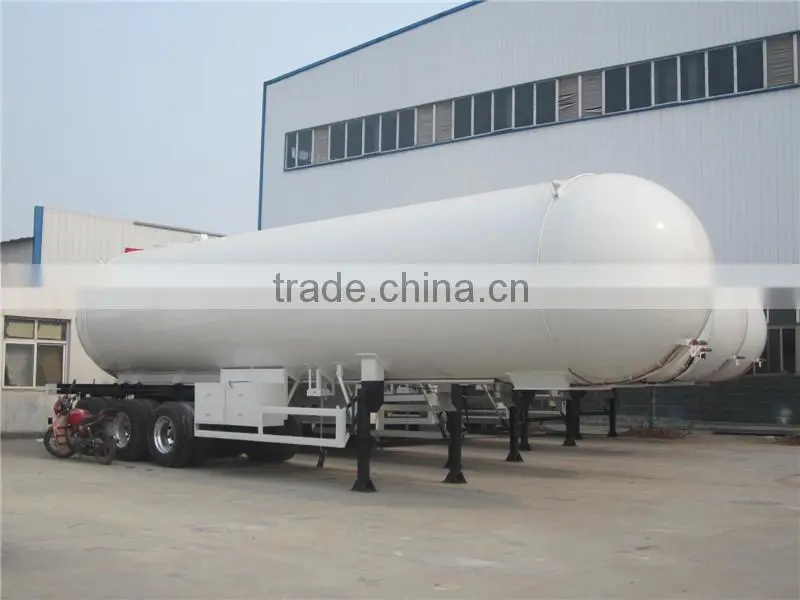

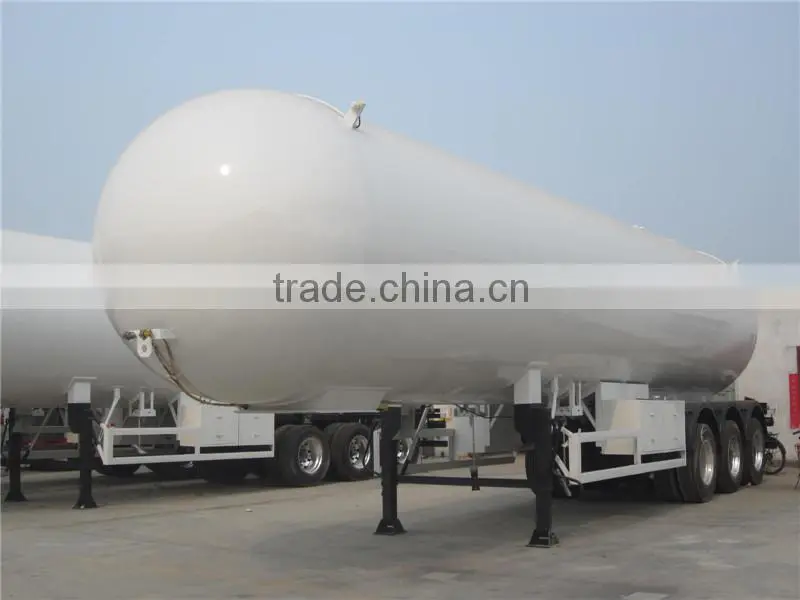

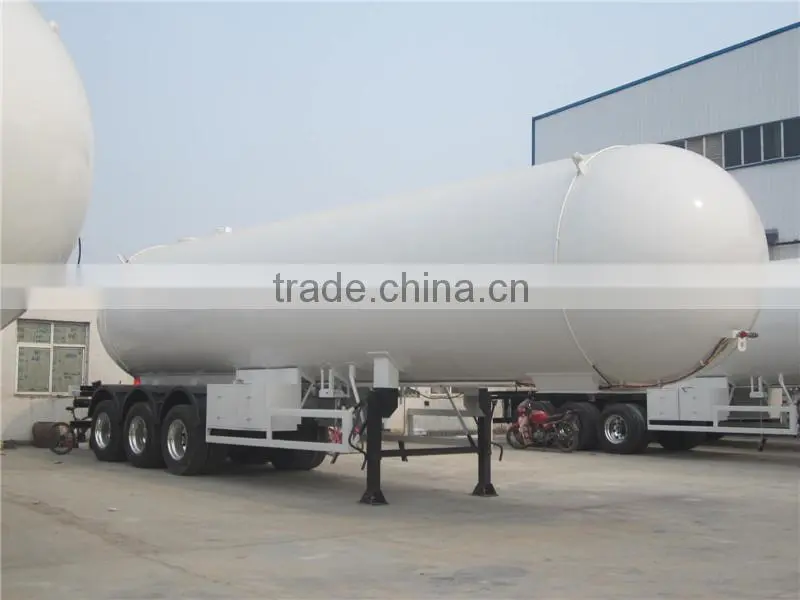

45cbm LPG trailer

FOB Price

USD $41,000 - $43,000 / Unit

1 Unit(Min.Order)

Product Details

OEM No.:	8716311000	Max Payload:	27120	Size:	1300025003990
Place of Origin:	Hubei, China	Brand Name:	JDF	Model Number:	JDF9402GYQ

45cbm LPG trailer
3 axles
factory direct sale
best price

45cbm LPG trailer

Filling Medium:propane
design pressure :1.77Mpa
design temperature 50 temperature
filling ratio:0.42t/Mpa
certificazione:AMS

Item			Unit	Parameter
Product name				3 axle semi-trailer
Practical capacity			M3	58.8
Gross weight			kg	40000
Curb weight				12880
rated loading capacity				27120
Overall dimension			mm	13000×2500×3990
Axle				3
Wheelbase				7160+1310+1310
Tread		Front tread		-
		Rear tread		1840/1840/1840
Front/rear suspension			mm	-/1450
Leaf spring				-7/7/7
Fifth wheel max loading			kg	16000
Tyre specification				12R22.5
Exclusive configuration	Tank material		Q345R
	Standard configuration		12T BPW axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield.
	Other		Filling Medium:propane;design pressure 1.77Mpa,design temperature 50°C,filling ratio:0.42t/m3,corrosion allowance:1mm;dimension of tank:12850×2496mm .
	Standard configuration		GB150-1998<Steel pressure vessels>,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck.
Shanghai price			FOB: USD41000.00
