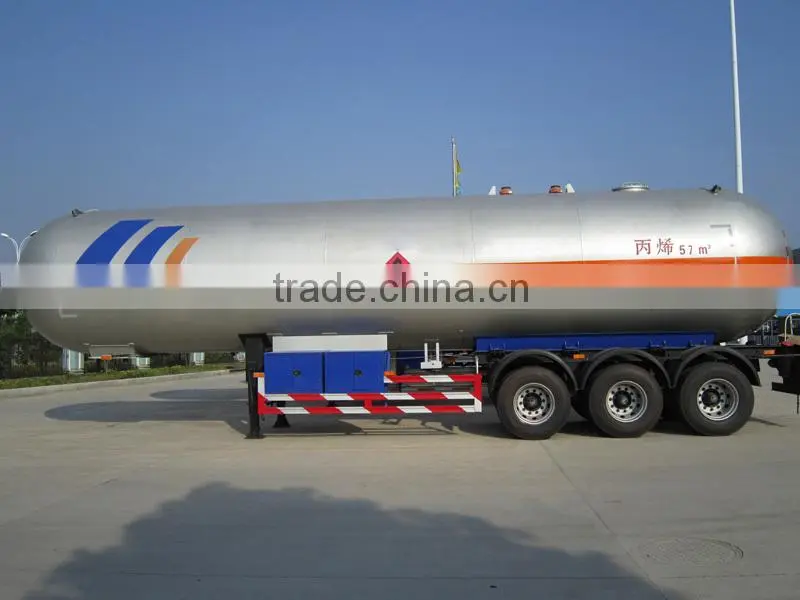

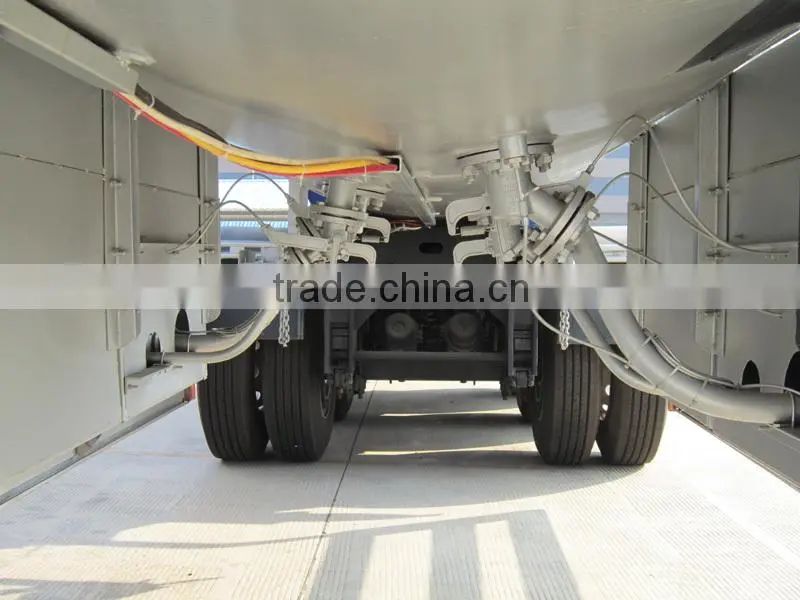

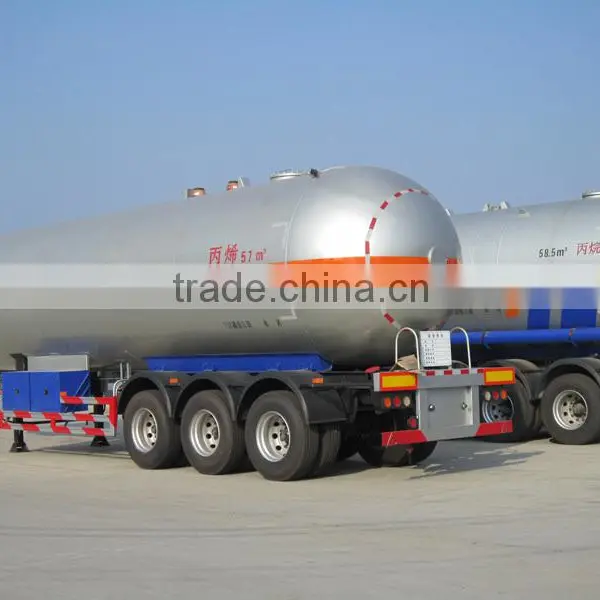

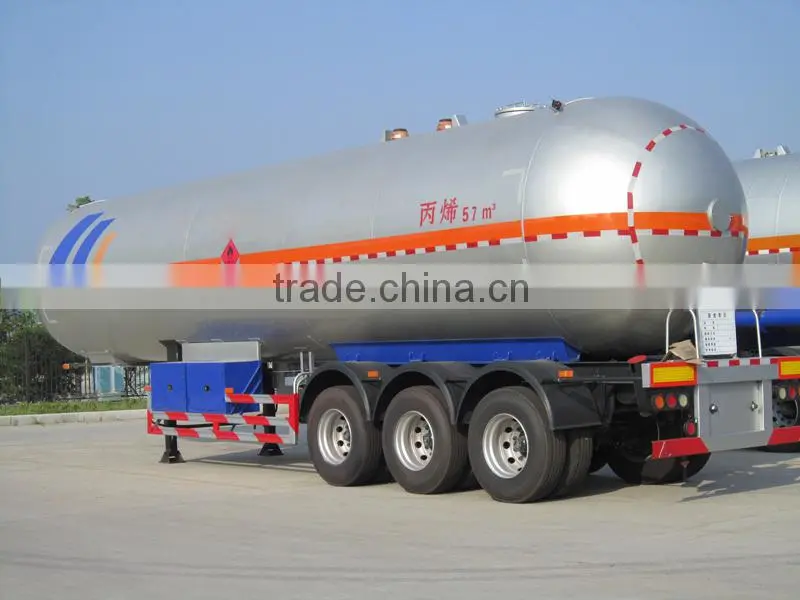

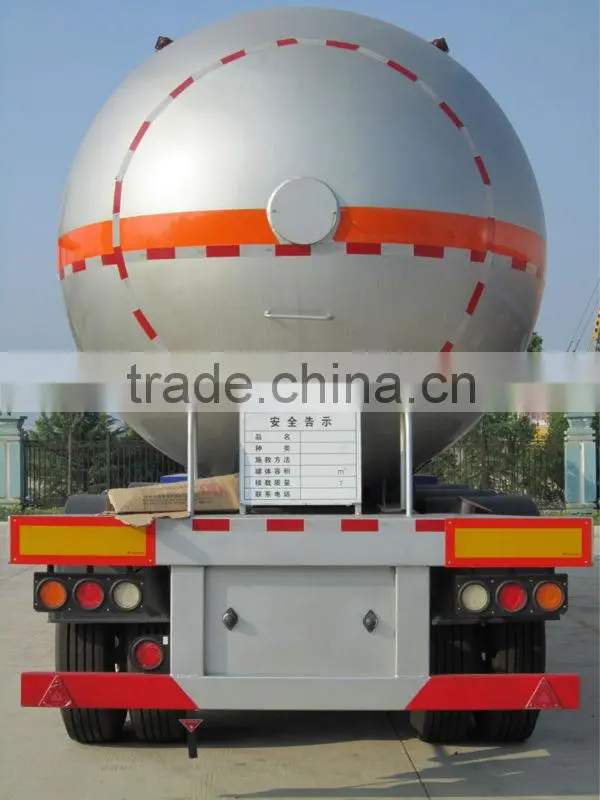

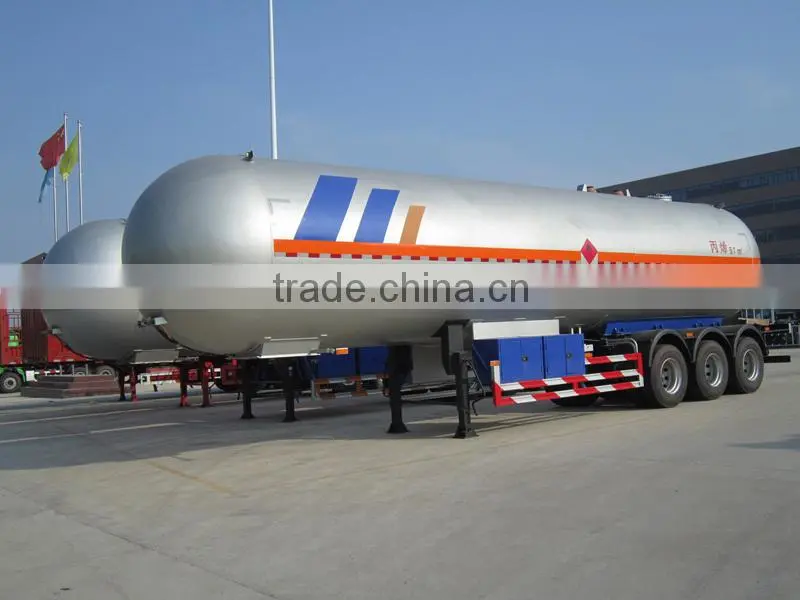

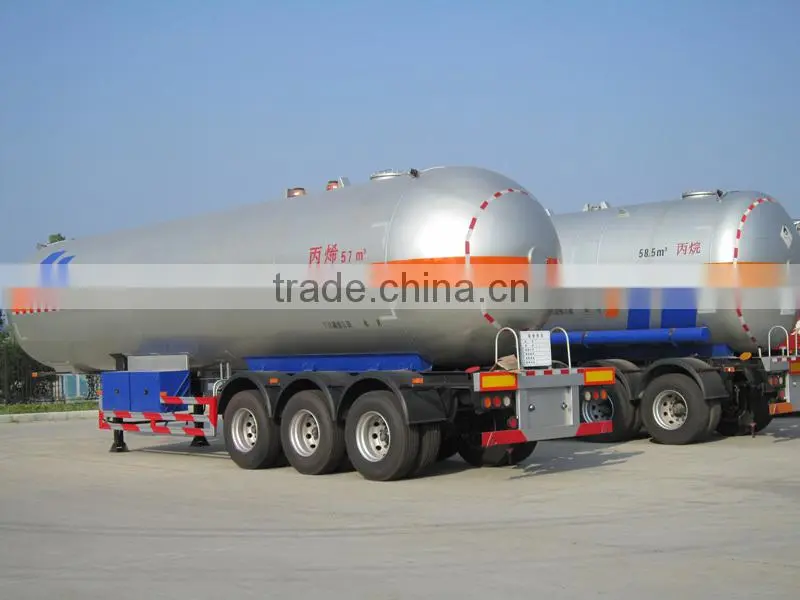

57cbm LPG Gas Trailer

US$ 41,000 - 43,000 MOQ: 1 Unit

Key Specifications

OEM No.:

8716311000

Max Payload:

24680

Size:

13000*2500*3990

Hubei Jiangnan Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

OEM No. 8716311000

Max Payload 24680

Size 13000*2500*3990

Place of Origin Hubei, China

Brand Name JDF

Model Number JDF9402GYQA

Specifications

57cbm LPG gas trailer
3 axles
fuwa axle
tire: 11.00R20
factory direct sale

57cbm LPG gas trailer

Filling Medium:propane
design pressure :1.77Mpa
design temperature 50 temperature
filling ratio:0.42t/Mpa
certificazione:AMS

Item			Unit	Parameter
Product name				3 axle semi-trailer
Practical capacity			M3	57
Gross weight			kg	40000
Curb weight				15320
rated loading capacity				24680
Overall dimension			mm	13000×2500×3990
Axle				3
Wheelbase				6710+1310+1310
Tread		Front tread		-
		Rear tread		1850/1850/1850
Front/rear suspension			mm	-/1650
Leaf spring				-7/7/7
Fifth wheel max loading			kg	16000
Tyre specification				11.00R20
Exclusive configuration	Tank material		Q345R

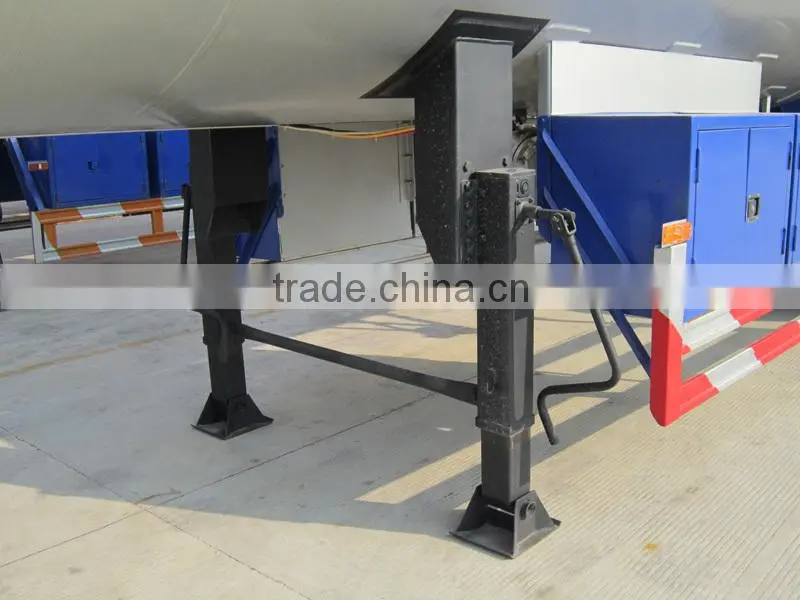

	Standard configuration		12T BPW axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield.
	Other		Filling Medium:propane;design pressure 1.77Mpa,design temperature 50°C,filling ratio:0.42t/m3,corrosion allowance:1mm;dimension of tank:12850×2496mm .
	Standard configuration		GB150-1998<Steel pressure vessels>,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck
Shanghai price			FOB: USD41000.00
