Specifications
Foton platform wrecker trucklovol engine 135hp
5.3m length sliding platform
original rhd
ccc

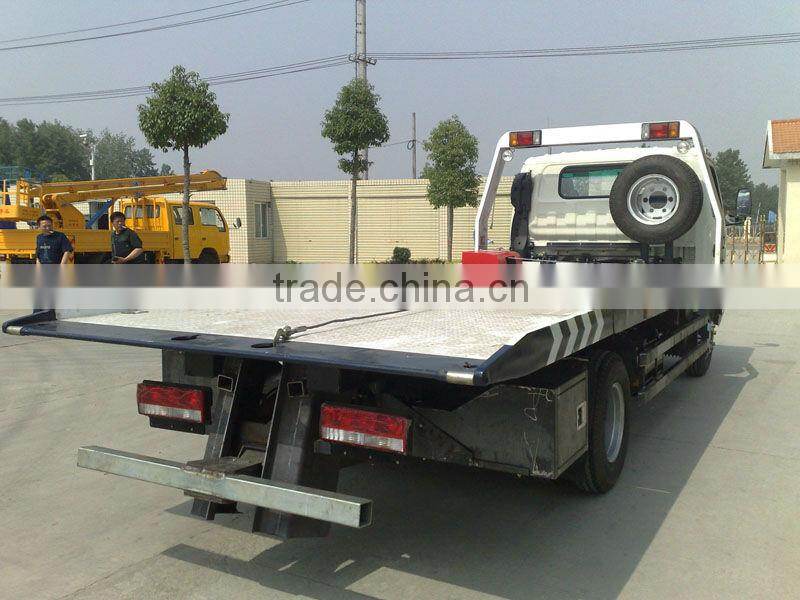

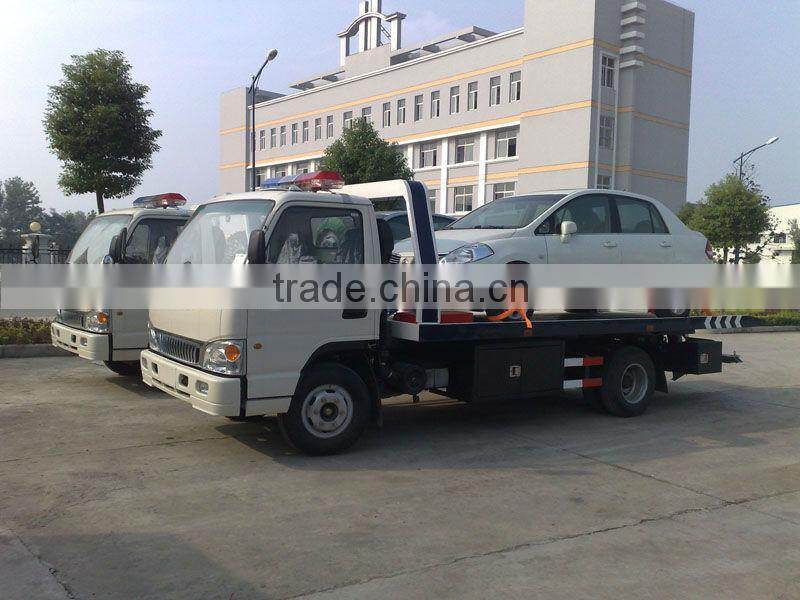

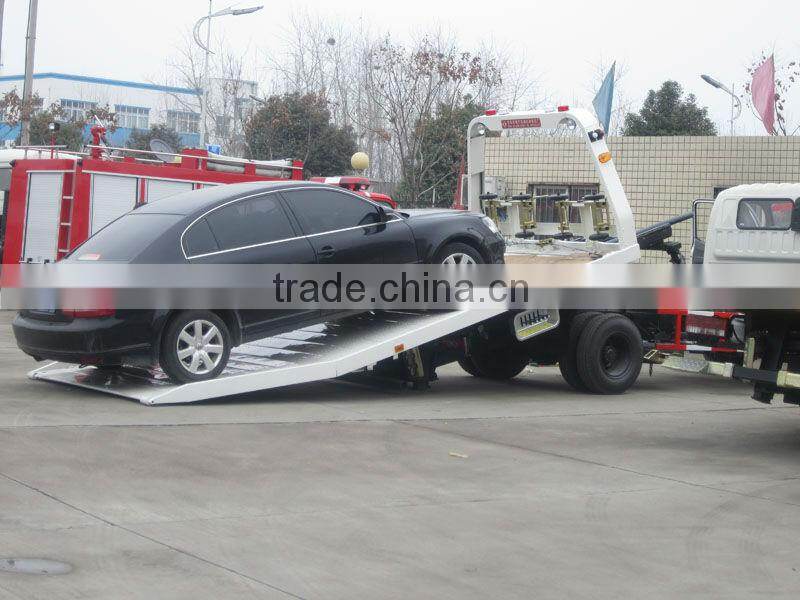

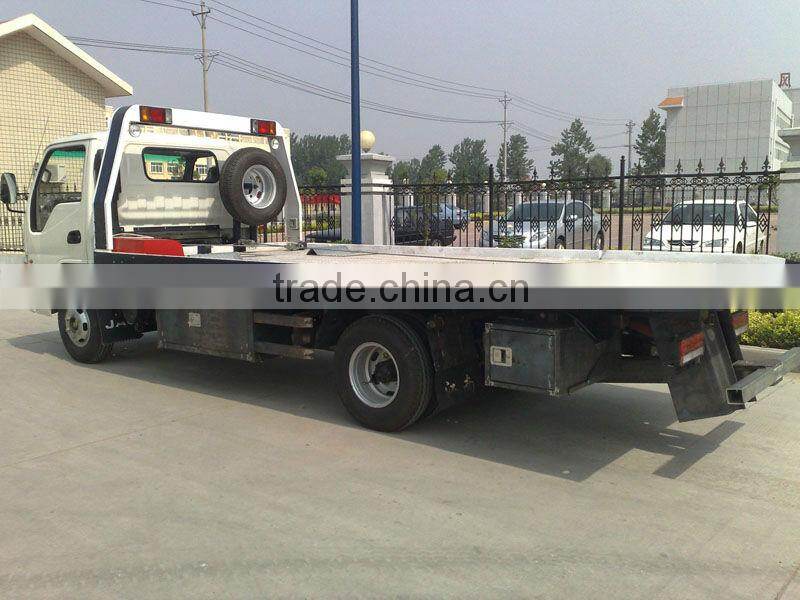

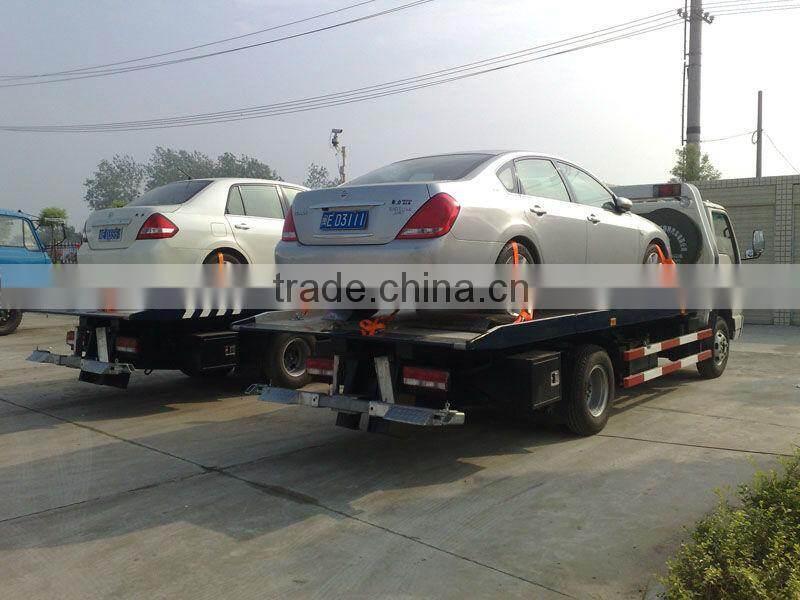

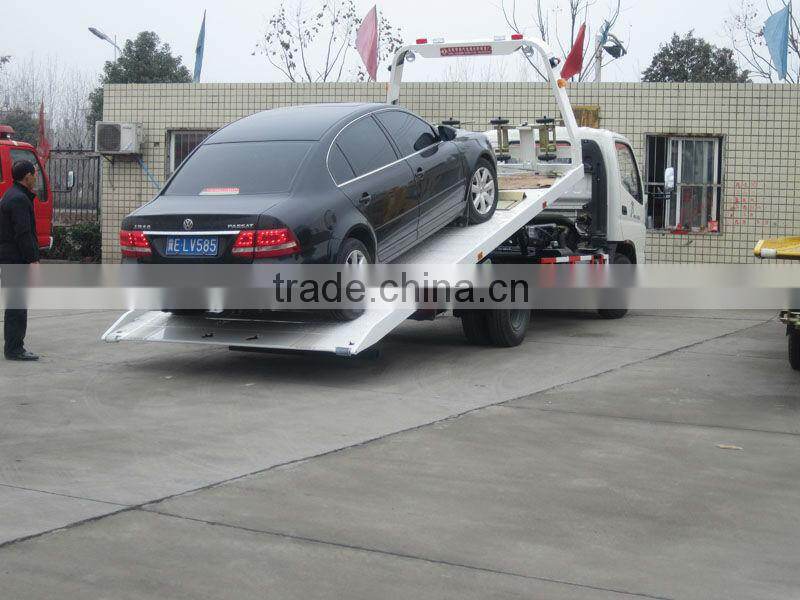

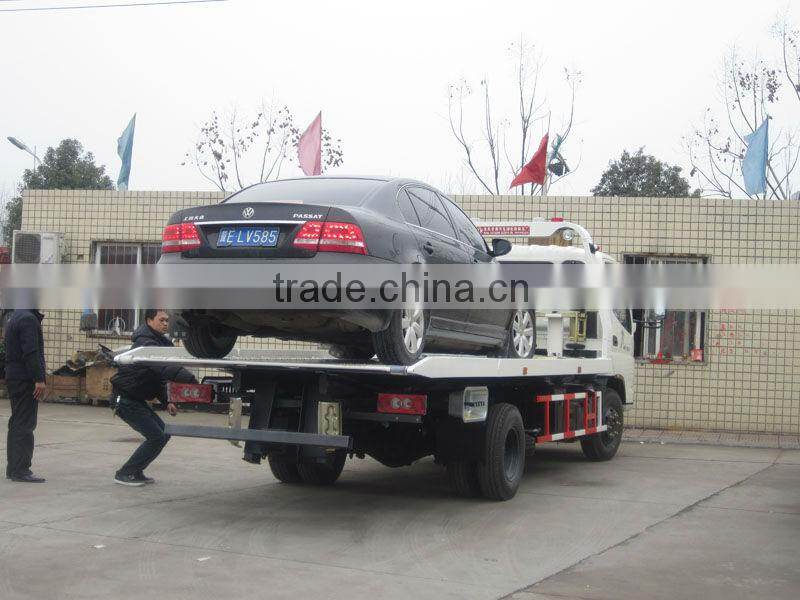

Foton platform wrecker truck
4ton flatbed platform wrecker truck with wheel lift, winch and sliding flat bed, the flat bed is suitable for carrying all passenger vehicles, light duty trucks and light duty equipment.
Not only can you transport severely damaged vehicles, but you aslo have the capacity to grab another car on the ride to your lot using the independent wheel lift .
Entire vehicle |
Type |
JDF5060TQZJAC |
|
Dimensions parameter |
Length(mm) |
7150 |
|
Wide(mm) |
2320 |
||
High(mm) |
2420 |
||
Wheelbase(mm) |
3800 |
||
Mass parameter |
Max mass(kg) |
6125 |
|
Total mass(kg) |
4800 |
||
Chassis |
Type |
HFC1061K93 |
|
Engine |
Type |
CY4102-C3C |
|
Power(kw) / Displacement (ml) |
80 / 3856 |
||
Size of tire |
7.50-16 |
||
Specialized device |
Flat organization |
Length x width (mm) |
5330x2300 |
Flat stroke (mm) |
2680 |
||
Flat minimum inclination angle (°) |
8 |
||
Flat maximum bearing quality (kg) |
3000 |
||
Rated traction winch (kg) |
4000 |
||
The length of wire rope (m) |
21 |
||
Lifting mechanism |
Effective length (mm) |
1300 |
|
Rated lifting quality (kg) |
1140 |
||
Full extend maximum lift quality (kg) |
550 |
||
Rated supporting lead quality (kg) |
6125 |
||
