Specifications
4ton Yuejin Flatbed Recovery Truckiveco engine
4ton winch
flatbed size:5.5x2.3m

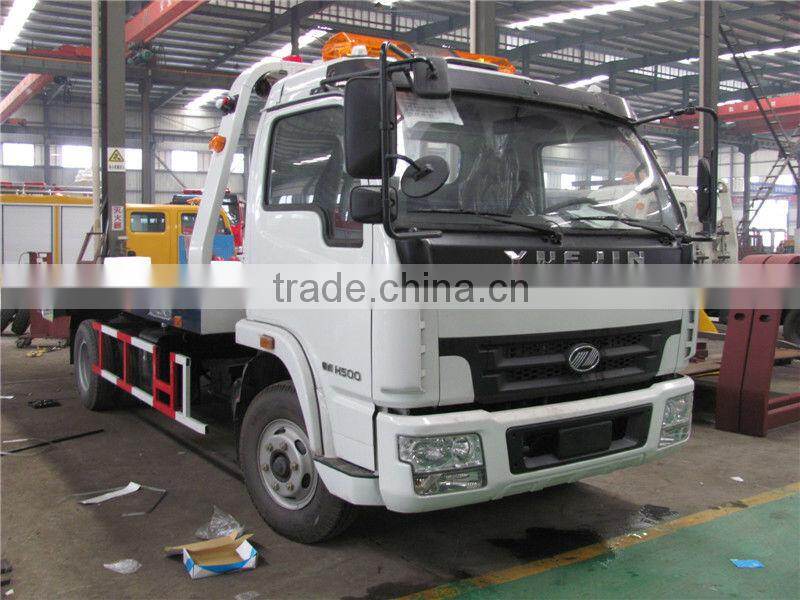

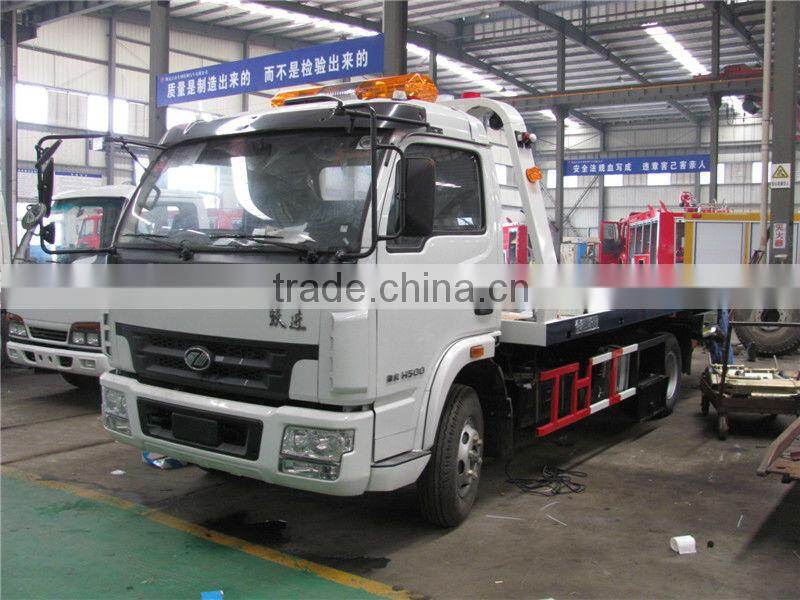

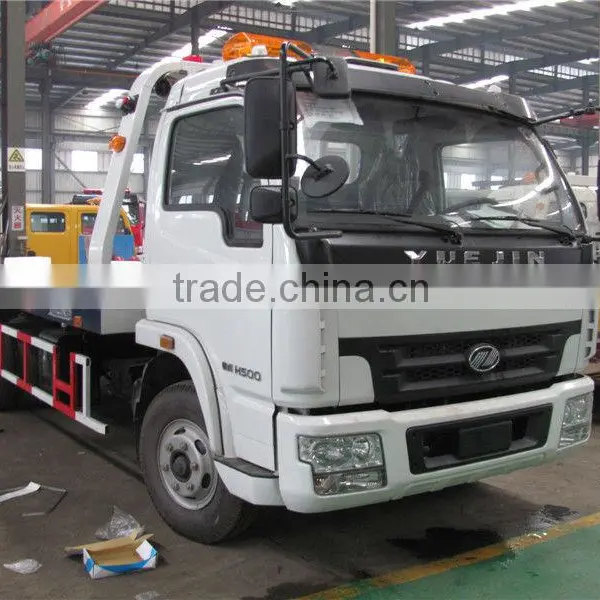

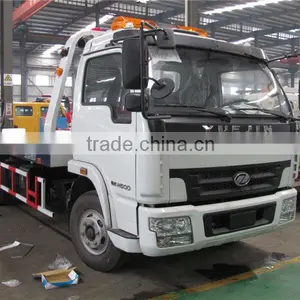

4ton Yuejin Flatbed Recovery Truck
4ton flatbed recovery truck with wheel lift, winch and light pylon. the 5.5m x 2.3m bed can carry most medium trucks.
Not only can transport severely damaged vehicles, but also have the capacity to grab another car on the ride to your lot using the independent wheel lift with swivel scoop pans.
There installed a hand washing device to washing hands after work.
Entire vehicle |
Type |
JDF5070TQZY |
|
Dimensions parameter |
Length(mm) |
7250 |
|
Wide(mm) |
2320 |
||
High(mm) |
2520 |
||
Wheelbase(mm) |
3800 |
||
Mass parameter |
GVW (kg) |
7495 |
|
Curb weight (kg) |
5300 |
||
Chassis |
Type |
NJ1070HDCL |
|
Engine |
Type |
SOFIM8140.43S3 |
|
Power(kw) |
92 |
||
Size of tire |
7.50-16 |
||
Specialized device |
Flat organization |
Length x width (mm) |
5500x2300 |
Flat stroke (mm) |
3320 |
||
Flat minimum inclination angle (°) |
8 |
||
Flat maximum bearing quality (kg) |
3000 |
||
Rated traction winch (kg) |
4000 |
||
The length of wire rope (m) |
21 |
||
Lifting mechanism |
Effective length (mm) |
1300 |
|
Rated lifting quality (kg) |
2100 |
||
Full extend maximum lift quality (kg) |
1600 |
||
Rated supporting lead quality (kg) |
7495 |
||
