FAW Sliding Platform Recovery Truck With Crane

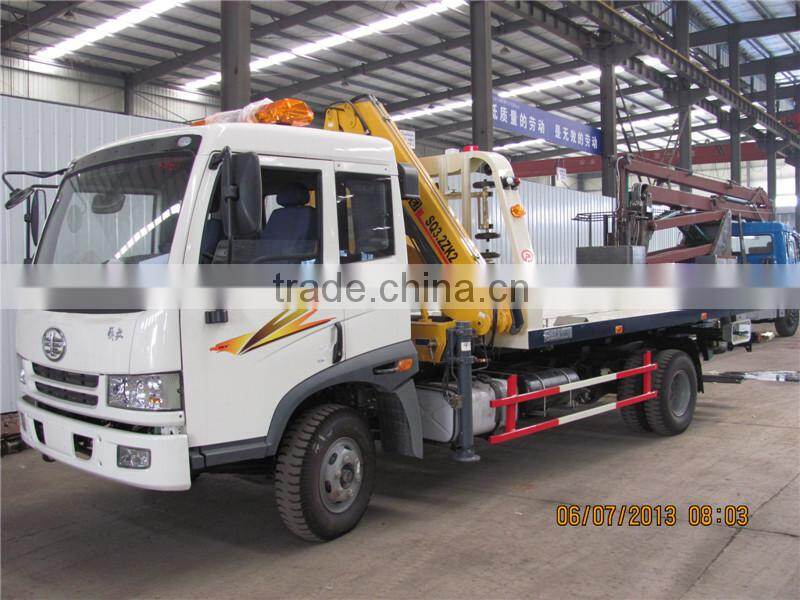

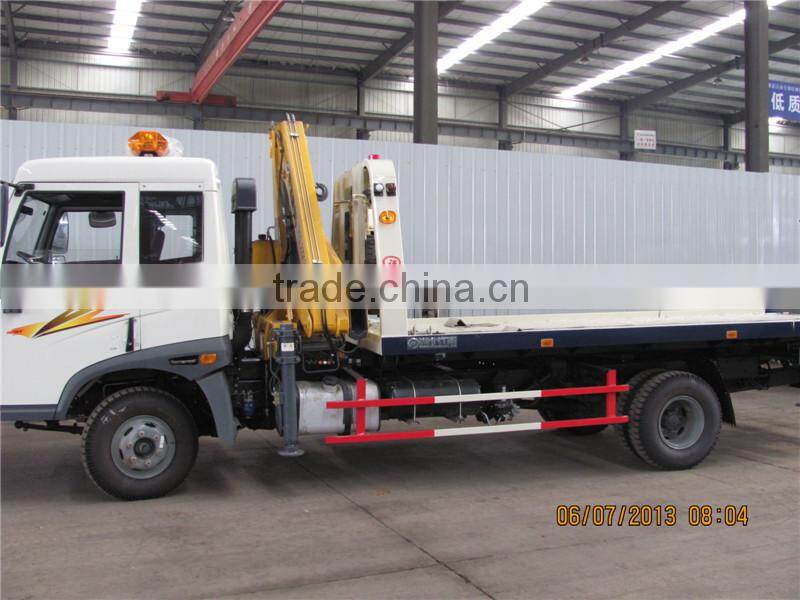

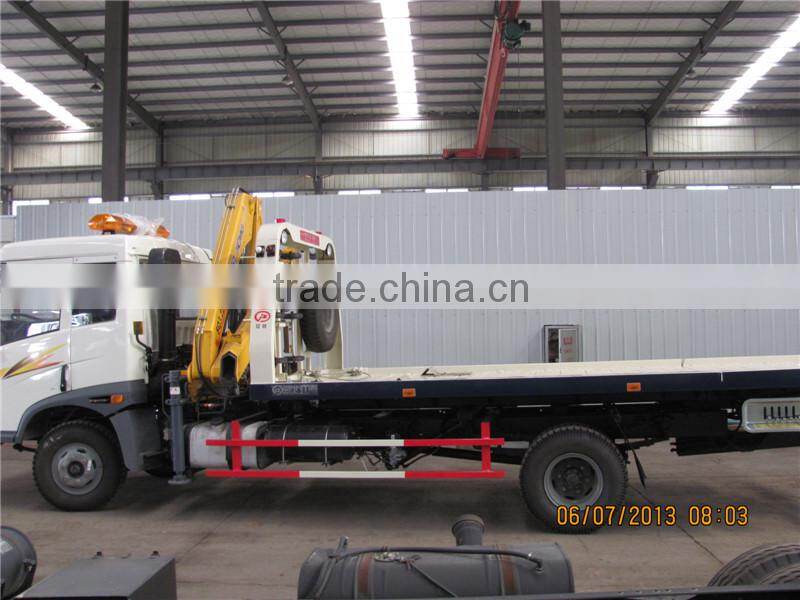

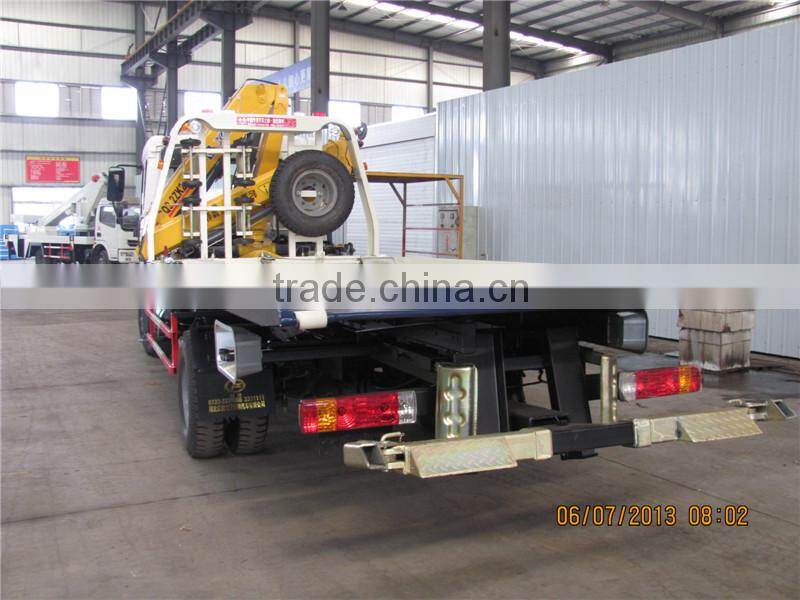

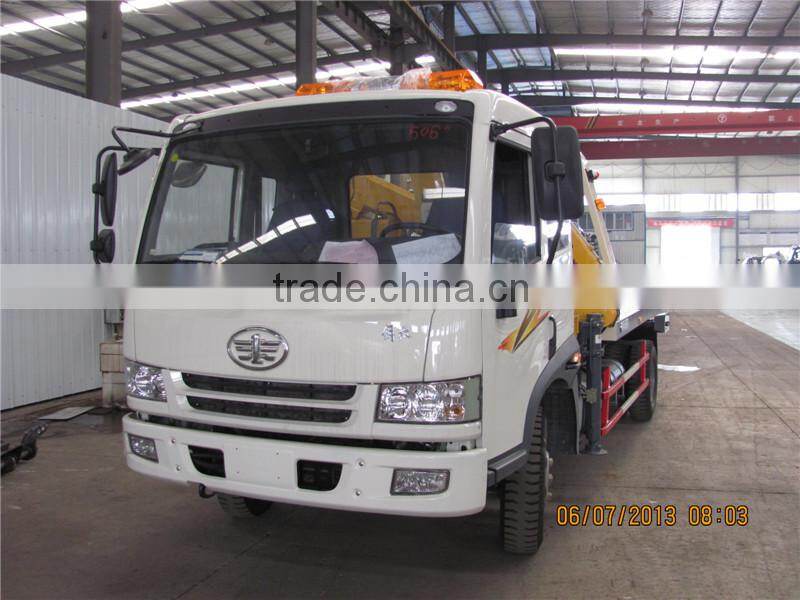

FAW Sliding Platform Recovery Truck With Crane photo-1
US$ 25,000 - 27,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Fuel Type:
Diesel
Emission Standard:
Euro 3
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Fuel Type Diesel
Emission Standard Euro 3
Condition New
Transmission Type Manual
Dimensions (L x W x H) (mm) 8030*2320*2750
Place of Origin Hubei, China
Brand Name jiangte
Model Number JDF5160TQZC4

Specifications

FAW Sliding Platform Recovery Truck With Crane
sliding platform length 5.8m
xcmg 3.2ton knuckle boom crane
model SK3.2SK2Q

FAW Sliding Platform Recovery Truck With Crane



Sliding platform dimension: (Length) 5.5m x (Width) 2.3m

The crane is xcmg brand, knuckle boom type, 3 stage of booms, max lifting capacity 3.2ton

Wheel lift towing capacity 8495kg

Entire vehicle

 Type

JDF5160TQZC4

Dimensions parameter

Length(mm)

8030

Wide(mm)

2320

High(mm)

2750

Wheelbase(mm)

4400

Mass parameter

GVW (kg)

8495

Curb weight (kg)

6200

Chassis

Type

CA1083P9K2L2E

   Engine

Type

CA4DF3-13E3

Power(kw)

96

               Size of tire

8.25-16

Specialized device

Flat organization

Length x width (mm)

5800x2300

Flat stroke (mm)

3320

Flat minimum inclination angle (°)

8

Flat maximum bearing quality (kg)

3000

Rated traction winch (kg)

4000

The length of wire rope (m)

21

Lifting mechanism

Effective length (mm)

1300

Rated lifting quality (kg)

2100

Full extend maximum lift quality (kg)

1600

Rated supporting lead quality (kg)

8495



 FAW Sliding Platform Recovery Truck With CraneFAW Sliding Platform Recovery Truck With CraneFAW Sliding Platform Recovery Truck With CraneFAW Sliding Platform Recovery Truck With CraneFAW Sliding Platform Recovery Truck With CraneFAW Sliding Platform Recovery Truck With Crane
