Polyamide Paper Tubing for Motor Leading Cable
- shenzhen
- Credit Card PayPal
You May Like
-
Thermal Transformer Insulation Nomex Tubing
-
PET Spiral Heat Shrinkable Tube
-
One Side Seal PET Heat Shrink Sleeving for Air Conditioner Suppiler fo Toshiba
-
ROHS Imported 100% HS Heat Shrinkable PET Tubes for Transformer
-
Mechanical Protection & Insulated Polyimide Film Tubing
-
One Side Seal PET Heat Shrinkable Sleeving for Air Conditioner Suppiler fo Toshiba
Product Details
| Place of Origin | China | Brand Name | Sunbow | |
| Model Number | SB-NT | Type | Insulation Sleeving | |
| Application | High Voltage |
Product Description

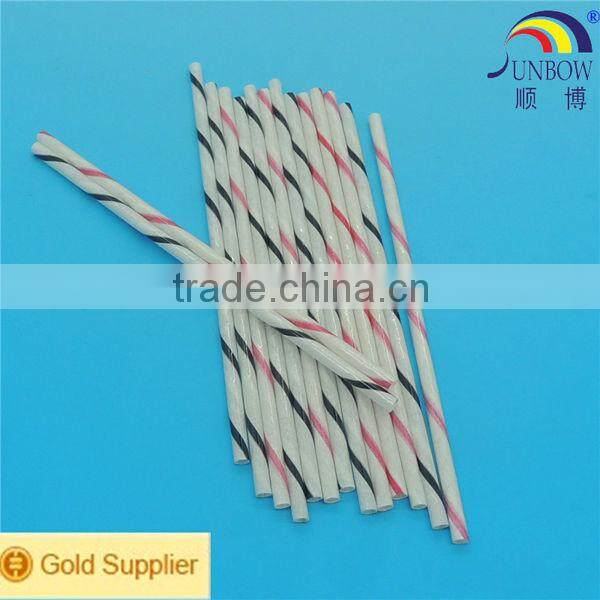

Aromatic polyamide paper tubing
GRADE:SB-NT (Nomex Tubing)
Working temperature:-60°C~+220°C
Structure
Nomex tubing(which also names aromatic polyamide paper tubing)is manufactured by twisted aromatic polyamide paper then adhesive by special glue. The glue possesses similar chemical characteristics with polyester film.
Usage
Main application range: insulation and mechanical protection for soldering, connection, wire harness, transformer, motor, cable, heating element, capacitor, telephone, electrical appliance etc.
Properity
1. Natural color, clear, yellow, stripe available
2. withstand 18~40KV/mm short time voltage field strength
3. Excellent intensity, high flexibility, high performance of wear resistance
4. Compliant with UL standard and can work under 220°C stably more than 10 years
5. Radiation resistance: can stand strength up to 800 Mrad (8MGy)
6. Nomex products compliant with all restrictions in UL94 V-0 standard.
Dimension
Inside diameter2.0-65(mm),Thickness 0.05-1 (mm), Length10-1000(mm)
Note: Besides above dimension, we can manufacture other dimension upon request.
