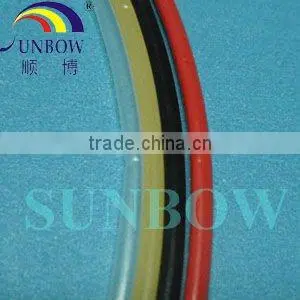

Help Center260C High Temperature Heat Shrink Tube
Related Products
-
Heat Shrinkable Busbar Protectional SleeveNegotiableMOQ: 1000 Meters -
UL Vw-1 PET/PA6/PA66/PPS Braided Expandable Insulation TubeNegotiableMOQ: 5000 Meters
-
PVC Plastic Insulating Tubing for Wire ProtectionNegotiableMOQ: 3000 Meters
-
Blue Non-Alkali Fiberglass Sleeving Coated SiliconeNegotiableMOQ: 5000 Meters
-
0.5mm Silicone Fiber Glass Sleeving/Fiberglass Sleeving/glassfiber SleevingNegotiableMOQ: 5000 Meters
STRUCTURE
PTFE heat shrinkable tube is applied imported polytetrafluoroethylene (PTFE). PTFE heat shrinkable tube has excellent chemical resistance, heat resistance, weather and corrosion resistance. It possesses excellent rigid and transparent. SGS and ROHS compliant.
It is widely used in electrical, computer, electro thermal, aerospace, military, and telecommunication etc. Such as mini transformer, special sensor, artificial blood vessel etc.
It is widely used in electrical, computer, electro thermal, aerospace, military, and telecommunication etc. Such as mini transformer, special sensor, artificial blood vessel etc.
Characteristics
Operating Temperature: -80°C-260°C
Shrink temperature: 320°C
Shrink ratio: 1.7:1/4:1
Specification
Size mm |
As supplied I.D. |
After recovery T.W. |
After recovery I.D. |
After recovery I.D. |
||
Thin Wall |
Thick Wall |
Thin Wall |
Thick Wall |
|||
Φ0.5 |
0.7±0.2 |
0.10±0.05 |
0.15±0.05 |
≤0.40 |
0.15±0.05 |
0.25±0.05 |
Φ1.0 |
1.0±0.2 |
0.10±0.05 |
0.15±0.05 |
≤0.50 |
0.15±0.05 |
0.25±0.05 |
Φ1.5 |
1.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤0.90 |
0.15±0.05 |
0.25±0.05 |
Φ2.0 |
2.0±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.30 |
0.15±0.05 |
0.30±0.05 |
Φ2.5 |
2.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.50 |
0.15±0.05 |
0.30±0.05 |
Φ3.0 |
3.0±0.2 |
0.10±0.05 |
0.20±0.05 |
≤1.80 |
0.20±0.05 |
0.30±0.05 |
Φ3.5 |
3.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤2.00 |
0.20±0.05 |
0.30±0.05 |
Φ3.8 |
3.5±0.2 |
0.10±0.05 |
0.20±0.05 |
≤2.00 |
0.20±0.05 |
0.30±0.05 |
Φ4.0 |
4.0±0.3 |
0.10±0.05 |
0.20±0.05 |
≤2.50 |
0.20±0.05 |
0.30±0.05 |
Φ4.5 |
4.5±0.3 |
0.10±0.05 |
0.20±0.05 |
≤2.80 |
0.20±0.05 |
0.30±0.05 |
Φ5.0 |
5.0±0.3 |
0.10±0.05 |
0.20±0.05 |
≤3.00 |
0.20±0.05 |
0.30±0.05 |
Φ6.0 |
6.0±0.3 |
0.10±0.05 |
0.25±0.05 |
≤3.80 |
0.25±0.05 |
0.38±0.05 |
Φ7.0 |
7.0±0.3 |
0.10±0.05 |
0.25±0.05 |
≤4.00 |
0.25±0.05 |
0.38±0.05 |
Φ8.0 |
8.0±0.3 |
0.10±0.05 |
0.25±0.05 |
≤4.80 |
0.25±0.05 |
0.38±0.05 |
Φ9.0 |
9.0±0.3 |
0.10±0.05 |
0.25±0.05 |
≤5.00 |
0.25±0.05 |
0.38±0.05 |
PTPF heat shrinkable tube specification (4:1)
|
Size mm |
As supplied |
After recovery T.W. |
After recovery ID |
|
Thin |
Thick |
|||
Φ1.5 |
1.5±0.2 |
0.05 |
0.1 |
0.40±0.1 |
Φ2.0 |
2.0±0.2 |
0.05 |
0.12 |
0.50±0.1 |
Φ3.0 |
3.0±0.2 |
0.05 |
0.12 |
0.7±0.1 |
Φ4.5 |
4.5±0.2 |
0.05 |
0.12 |
1.2±0.1 |
Φ6.0 |
6.0±0.2 |
0.12 |
0.12 |
1.5±0.1 |
Φ7.0 |
7.0±0.3 |
0.12 |
0.15 |
2.8±0.1 |
COLOR: Standard color is black and transparent. Other colors are available upon request.
