[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
AQ8 loudspeaker descriptions:

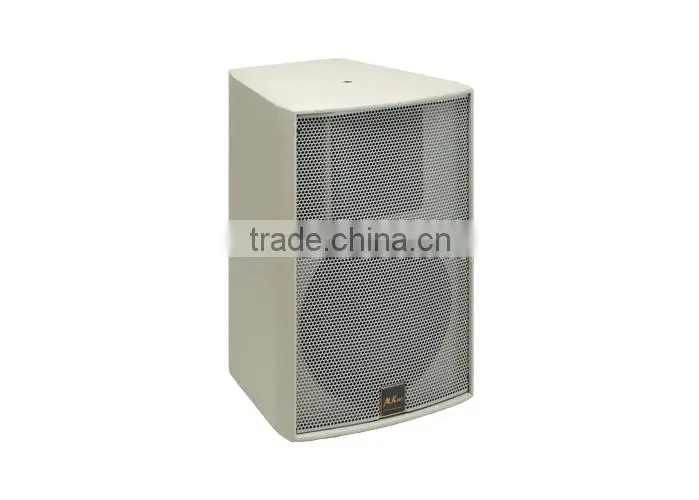

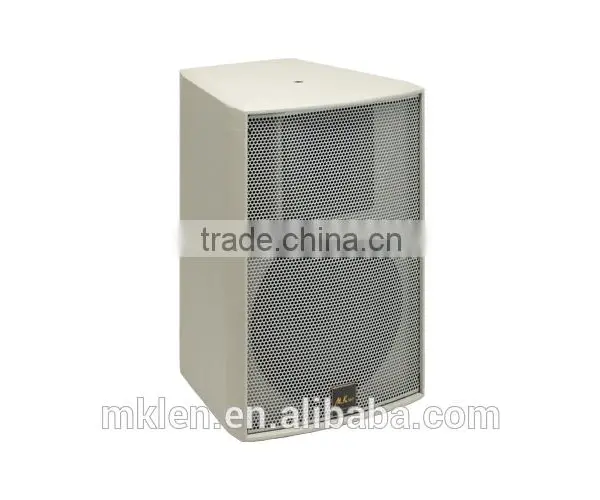

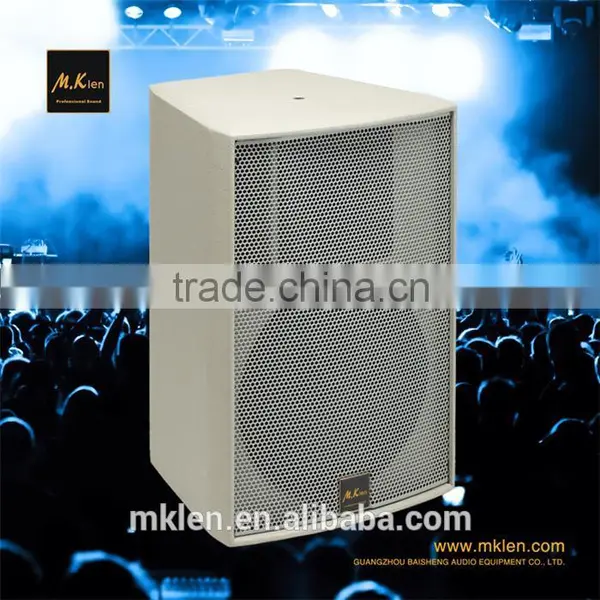

1. The Blackline AQ8 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 8''(200mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 90° x 50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
AQ8 loudspeaker features:
1.Versatile, passive 2-way full range system, 1x8''LF + 1x1.4''HF, 8 ohms, 200W - 400W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install safely.
3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.
AQ8 loudspeaker specifications:
| TYPE | Compact ,two-way passive |
| FREQUENCY RESPONSE | 68Hz-19kHz±3dB |
| DRIVERS | LF: 1 x 8″(200mm)/2″(50mm)voice coil LF driver, Ferrite |
| SENSITIVITY | 96dB/W/M |
| MAXIMUM SPL | 116dB continuous,122dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| RATED POWER | 200W RMS, 800W peak |
| FITTINGS |
8×M8,4×M8 threaded inserts 1×mounting pole socket |
| CONNECTORS | 2×Neutrik NL4 |
| DIMENSIONS (HxWxD) | 440x300x270mm |
| WEIGHT | 13kg |

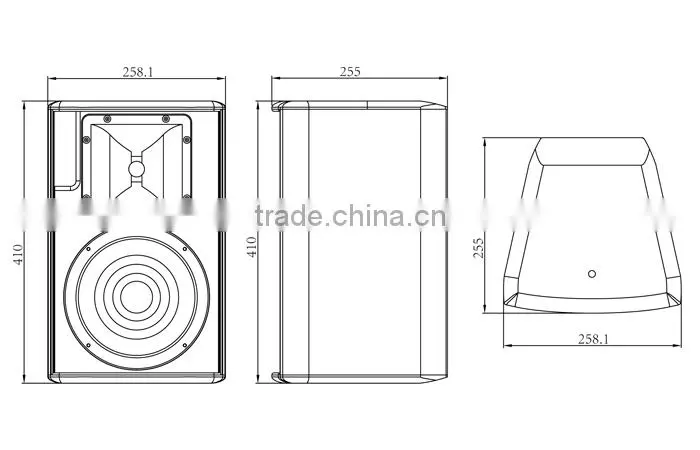

AQ8 loudspeaker box design:
AQ8 loudspeaker driver configuration:

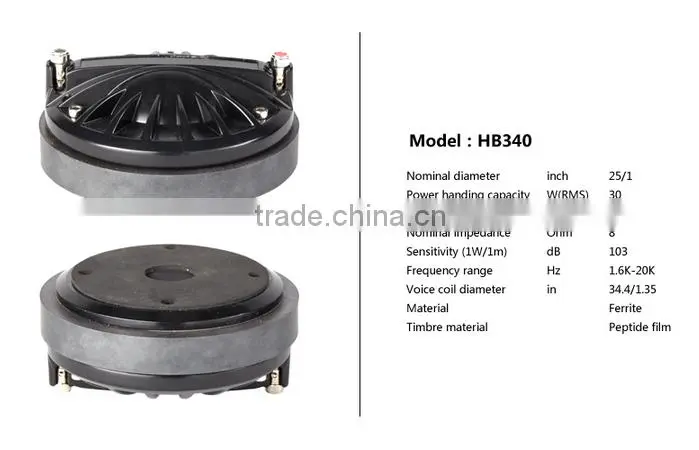

HF:
LF:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
