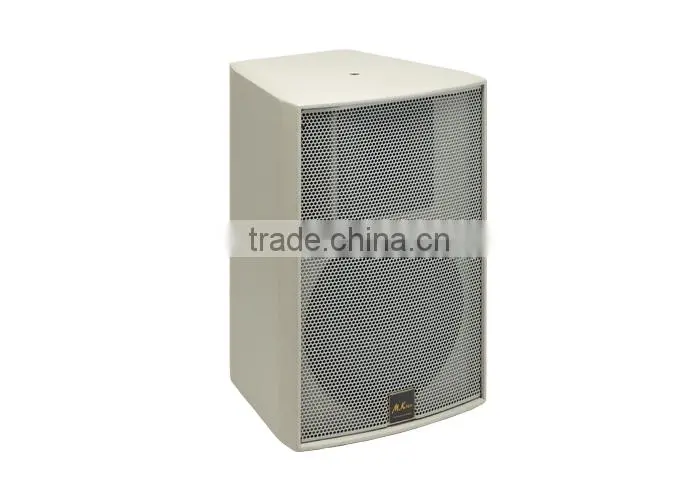

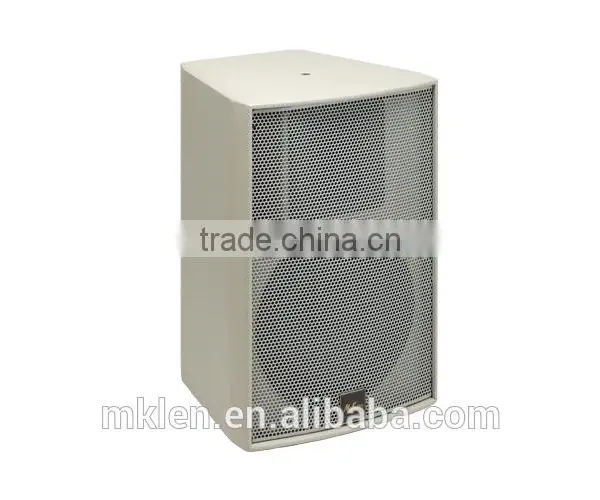

martin AQ10, 10 inch passive 2-way full range loudspeaker, professional speaker

FOB Price

USD $180 - $210 / Piece

10 Pieces(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port Guangzhou
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	M.Klen
Model Number	AQ10

Product Description

[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:

AQ10 loudspeaker descriptions:

1. The Blackline AQ10 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.

2. It features a powerful 10''(250mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 90° x 50° horn.

3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

AQ10 loudspeaker features:

1.Versatile, passive 2-way full range system, 1x10''LF + 1x1.4''HF, 8 ohms, 250W - 500W.

2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install safely.

3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.

AQ10 loudspeaker specifications:

TYPE	Compact ,two-way passive
FREQUENCY RESPONSE	65Hz-20kHz±3dB 56Hz @-10dB
DRIVERS	LF:1 x 10″(250mm)/2″(50mm)voice coil LF driver, Ferrite HF: Voice coil HF driver size 1.7''(34mm), Ferrite
SENSITIVITY	96dB/W/M
MAXIMUM SPL	117dB continuous,123dB peak
NOMINAL IMPEDANCE	8 ohms
RATED POWER	250W RMS,500W peak
DISPERSION (-6dB)	90°horizontal, 50° Vertical
FITTINGS	10×M8,4×M8 threaded inserts 1×mounting pole socket
CONNECTORS	2×Neutrik NL4
DIMENSIONS (HxWxD)	500x350x317mm
WEIGHT	17kg

AQ10 loudspeaker box design:

AQ10 loudspeaker driver configuration:

HF:

LF:
