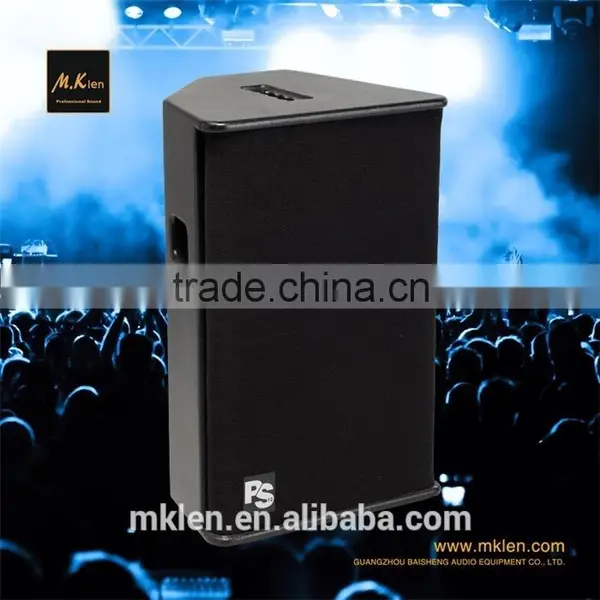

PS12, trade assurance, 12 inch passive 2-way full range loudspeaker, stage monitors

FOB Price

USD $179 - $219 / Piece

10 Pieces(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port Guangzhou
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	M.Klen
Model Number	PS-12

Product Description

[ Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:

PS-12 loudspeaker descriptions:

1. PS-12 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.

2. It features a powerful 12''(300mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 100° x 50° horn.

3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

PS-12 loudspeaker features:

1.Versatile, passive 2-way full range system, 1x12''LF + 1x1.7''HF, 300W - 600W.

2. Full sound, powerful bass, low distortion, pure and natural tone quality, light wight, easy to install and safely.

3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.

4. This model is outstanding used in the slow rock bars, which displys very full voices, and the bass is powerful.

PS-12 loudspeaker specifications:

Frequency Response[a]	65Hz-19kHz±3dB
Usable Range@-6dB [a]	60 Hz-19kHz
Sensitivity 1W@1m[b]	97dB/w/m
Nominal Peak SRL@1m[b]	119dB to 125dB Peak (for 300 to 600W RMS Amp.)
HF Dispersion[c]	50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions
Rated power	300W RMS, 600 W peak into 8Ω
Components	LF: 1×12″(300mm)Shielded 8Ω driver, Ferrite HF: Voice coil HF driver size 1.7″(44mm), Ferrite Asymmetrical Dispersion Horn.
Install Dim(HxWxD)	582x394x340mm
Weight	20kg
Connectors	2×NL4MP 4-pole SPEAKON

PS-12 loudspeaker box design:

PS-12 loudspeaker driver configuration:

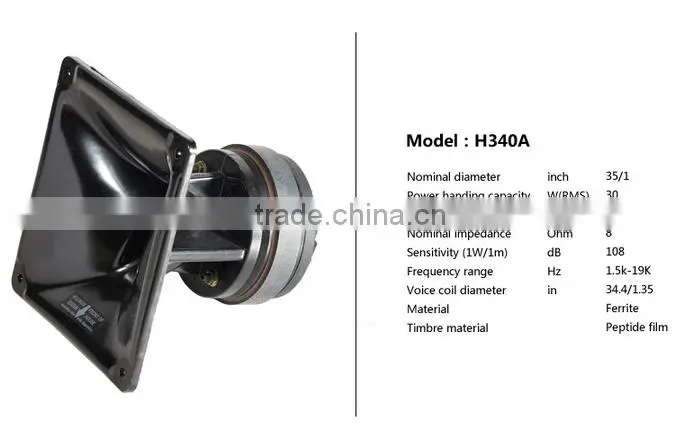

HF:

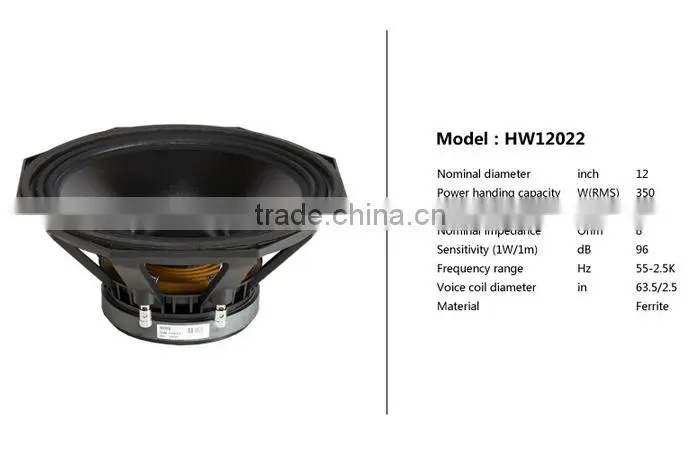

LF:

Our Services

♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.

♥ All the goods are inspected before shipment, so we can ensure the best quality of products .

♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.

♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
