[ Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:

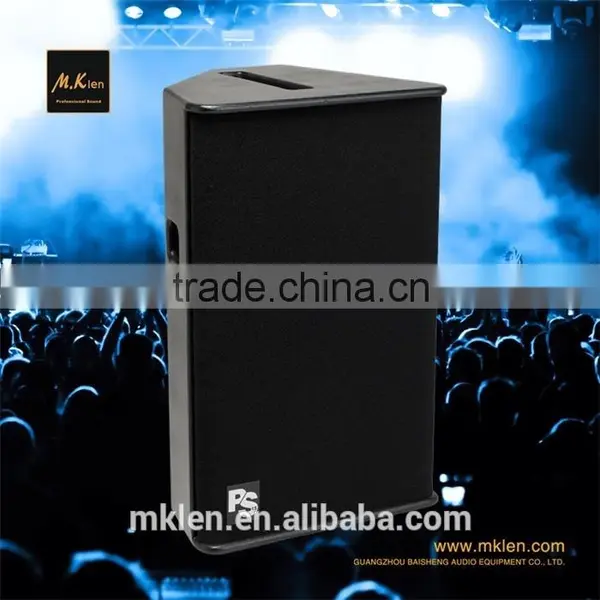

PS15TT+ loudspeaker descriptions:
1. PS15TT+ is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 15''(375mm) low frequency driver and a 1.5''(38mm) HF compression driver mounted on a constant directivity 90° x 50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS15TT+ loudspeaker features:
1.Versatile, passive 2-way full range system, 1x15''LF + 1x3''HF, 600W - 1200W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, light wight, easy to install and safely.
3. Best chioce for nightclubs, bars, Disco, theaters, church, concert halls, Band, stage performance, wedding, touring performance, etc.
4. This model is outstanding used in the slow rock bars, which displys very full voices, and the bass is powerful.
PS15TT+ loudspeaker specifications:
| Frequency Response[a] | 58Hz-18kHz±3dB |
| Usable Range@-6dB [a] | 55 Hz-20kHz |
| Sensitivity 1W@1m[b] | 98dB/w/m |
| Nominal Peak SRL@1m[b] | 126dB to 132dB Peak (for 600 to 1200W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert. Rotatable Horn |
| Rated power | 600W RMS, 1200W peak into 8Ω |
| Norminal impedance | Passive: 8Ω; Active: 8Ω. |
| Components |
LF: 1×15″(380mm) Shielded 8Ω driver, Neodymium HF: 1x3'',titanium diaphragm, Ferrite driver + Low Distortion Constant Directivity Asymmetrical Dispersion Horn |
| Install Dim(HxWxD) | 675x434x369mm |
| Weight | 25kg |
| Connectors | 3×NL4MP 4-pole SPEAKON |
PS15TT+ loudspeaker box design:
PS15TT+ loudspeaker driver configuration:

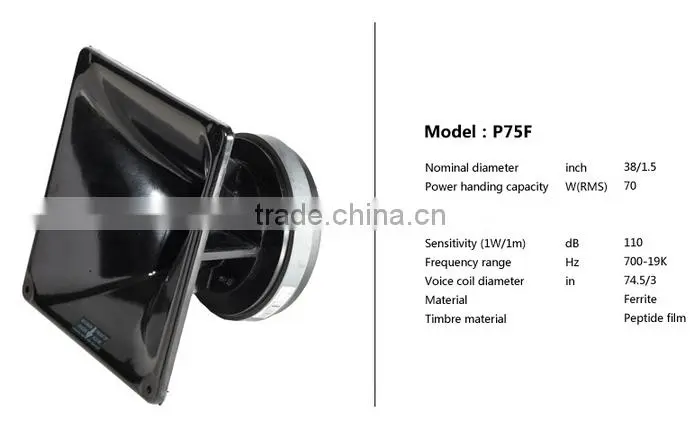

HF:

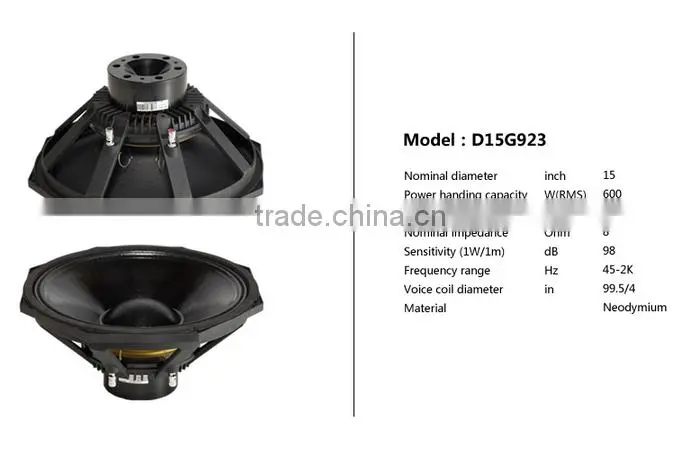

LF:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we support Alibaba Trade Assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
