CA Series, Trade Assurance, 2 Channel Power Amplifier

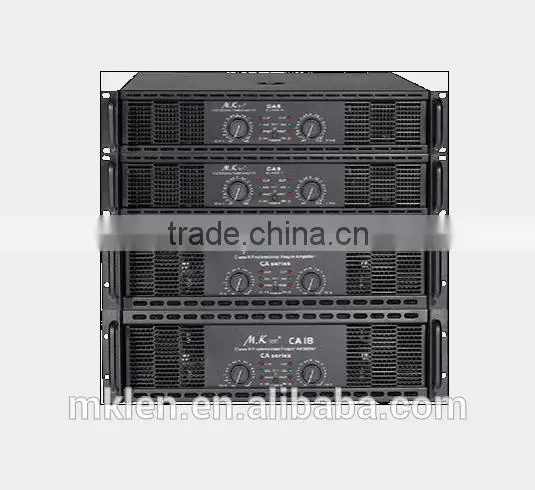

CA Series, Trade Assurance, 2 Channel Power Amplifier thumbnail-1

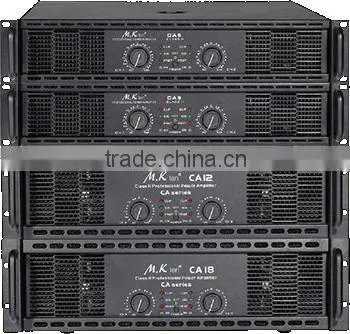

CA Series, Trade Assurance, 2 Channel Power Amplifier photo-1
Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
M.Klen
Model Number:
CA series
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Guangzhou Baisheng Audio Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name M.Klen
Model Number CA series
Type Professional Amplifier
Channels 2 (2.0)
Place of Origin Guangdong, China



CA series, trade assurance, 2 channel power amplifier





[Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:



Specifications

CA series power amplifier owns enough power,adopting H class circuit.  It is the best choice to drive subwoofer!

CA Series Power amplifier
Tecton uses Class H’s advanced technologies to deliver a range of amplifiers, where high audio quality, power and reliability is of highest priority.
Specifications CA-6 CA-9 CA-12 CA-18
Stereo Power 2X650W 2X800W 2X1000W 2X1200W
Stereo Power 2X900W 2X1200W 2X1500W 2X1800W
Stereo Power 2X1200W 2X1600W 2X2000W 2X2400W
Mono   Power 1600W 2000W 3000W 3600W
Mono   Power 2300W 3000W 4000W 4800W
Output Circuitry CA18,CA12/2-Step(ClassH). CA9,CA6/3-Step(ClassH).
Frequency Response 20Hz -20kHz,±0,2 dB/8 Hz-50kHz,+0,-3 dB
Input Impedance 14 kΩ balanced
Input Gain selectable:26 dB,32dB,or 1,4 V input sensitivity
Protection Circuits incrush-current limitation, protection circuits against power-on/off transients,
temperature monitoring, output DC protection, temperature dependent power
transistor SOA protection, intelligent mains fuse protection
Limiter 3 step switchable peak-limiter
Fan Temperature dependent speed-controlled axial fan
Ground-Lift input ground-lift switch on back panel
Indicators LED’s for Mode, Signal, Clip, Output Current and faults for example like DC
Input Connectors 3-pin XLR, male and female per channel, pin2 =in phase
Output Connectors One 4-pole SPEAKON connector for each output channel (bi-amping possible)
Modes Of Operation STEREO,BRIDGE-NONO PARALLEL-MONO
Signal To Noise-Ratio >107 dB (unweighted)
>110 dB (A-weighted)
20Hz -20kHz, 8Ω load  <0,01%
Damping Factor >400
Shipping Weight CA18/41KG, CA12/38KG, CA9/23KG. CA6/20KG
Dimensions(W×H×D) CA18, CA12: 483×510×132mm(3U)
CA9, CA6: 483×490×88mm(2U)









CA series, trade assurance, 2 channel power amplifier





Our Services

   ♥ OEM /ODM  orders are warmly welcome ,we can  make  the varied designs  according to your need.Besides, we support Alibaba Trade Assurance.

   ♥ All the goods are inspected before shipment, so  we  can ensure the best quality of products .

   ♥Free warranty  service  for  one year ,within this period ,you can enjoy free maintenance service  by warranty  cards and invoice if a failure occurs under normal operation.

  ♥  If you  have any problems,please  feel free to let us know,   by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
