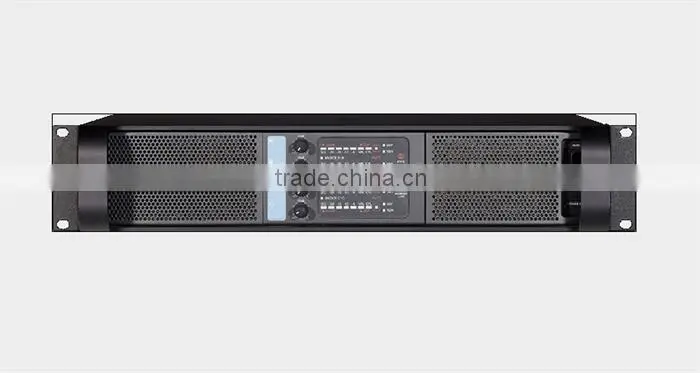

Help CenterFP Series, 4 Channel Lab-gruppen Digital Power Amplifier
Related Products
-
CA Series, 2 Channel Power Amplifiers, Professional Power AmplifiersNegotiableMOQ: 4 Pieces -
LP Series, Trade Assurance, 2channel High Power Amplifiers, Professional AmplifiersNegotiableMOQ: 4 Pieces
-
LP5 Power AmplifierNegotiableMOQ: 2 Pieces
-
Power AmplifierNegotiableMOQ: 2 Pieces
-
LP3 Power Amplifier, Audio AmplifierNegotiableMOQ: 2 Pieces
[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
FP series amplifier descriptions:
FP+series: Kings of the road
More power,more choices.
More power from smaller and lighter racks,with more configuration flexibility,and yet with no compromise in the legendary Lab-gruppen sound- that’s the promise fulfilled by FP + series amplifiers.
The expanded FP+ series with both two-and four-channel versions spread across a range of power output levels.The flagship FP 14000 produces staggering output power of 14000W( from a 2U chassis weighing only 12kg),making it ideal for powering larger subwoofers.Other FP+ series models offer power levels and channel configurations scaled to match every conceivable touring application,from band-limited line array drivers to full-range monitor and fill loudspeakers.
To achieve the extraordinary power-to-size ratio in the FP+ series,Lab-gruppen engineers refined and upgraded two proprietary technologies.The Regulated Switch Mode Power Supply(R.SMPS) and the patented Class TD output stage.Working together,these new-generation proprietary circuits produce more power from a smaller package while maintaining Lab-gruppen’s peerless reputation for sonic excellence.The highs stay crisp and transparent.The mids are warm and natural.And the tight lowend delivers visceral impact.
Information,control,reassurance.
All FP+ series amplifiers offer real-time monitoring and control via the NomadLink network,with network modules built in as standard equipment.Finally,standing behind Lab-gruppen’s reputation for rock-solid reliabilty is a six-year,no-quibble warrany.
FP series amplifier specifications:
| ||
power amplifier | ||
Model |
FP7000Q |
FP10000Q |
Output Power |
20-20kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1450WX2 |
1300WX4 |
4ΩStereo Power(RMS) |
2800WX2 |
2100WX4 |
2ΩStereo Power(RMS) |
3500WX2 |
2500WX4 |
8ΩBridged Power(RMS) |
5600W |
|
4ΩBridged Power(RMS) |
8000W |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
|
Signal-to-Noise Ratio |
>112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Operating voltage, 230 V / 115 V nominal |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 kOhm |
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W×H×D) |
483×88×396mm |
|
Packing dimension |
560×180×500mm |
|
Net weight |
15KG |
|
Gross weight |
18KG |
|
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
