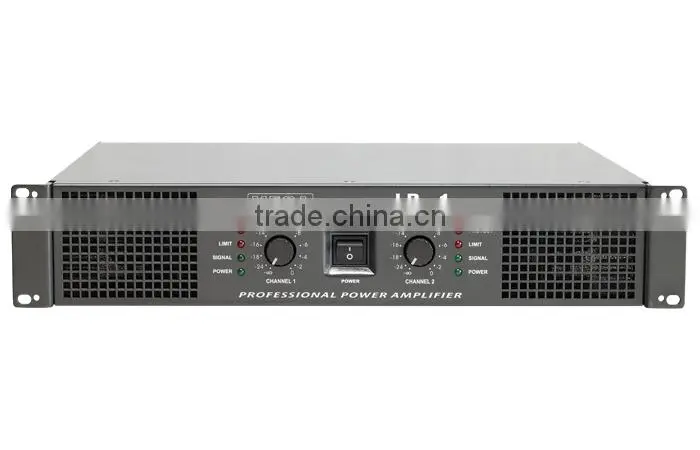

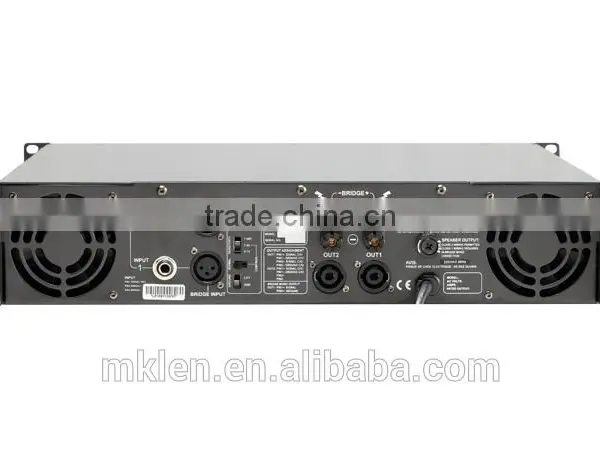

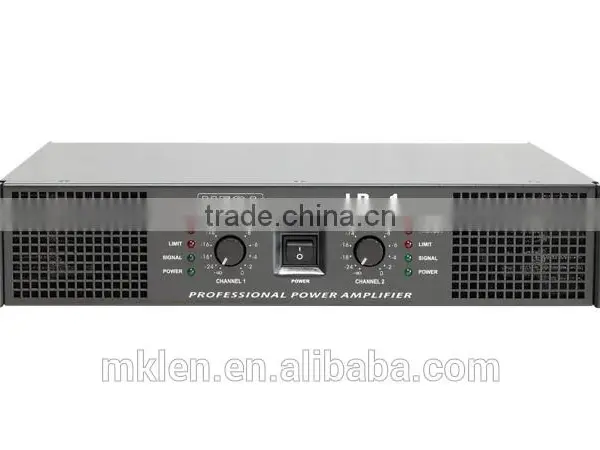

Help CenterLP-1, Trade Assurance, 2 Channel Power Amplifier, 300 Watt Amplifier
Related Products
-
FP7000Q , Trade Assurance, 2channel Power Amplifier, Professional AmplifierNegotiableMOQ: 2 Pieces -
Lab Gruppen FP10000Q, 4channel Power AmplifierNegotiableMOQ: 2 Pieces
-
CA Series, Trade Assurance, 2 Channel Power AmplifierNegotiableMOQ: 4 Pieces
-
CA Series, Trade Assurance, 2 Channel Power Amplifier, Subwoofer AmplifierNegotiableMOQ: 4 Pieces
-
4channel Power Amplifier FP10000QNegotiableMOQ: 4 Pieces
[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
LP-1 amplifier features:
1. Perfect protection function: DC output stream overheating protection, which can protect power amplifiers well.
2. Power-on and erosion of soft start.
3. Power on with of the beautiful tone circuit.
4. Filter circuit, filter out 20Hz to the next wave, avoiding useless power.
5. Standard 2U/3U all-steel chassis, overall shape, body solid.
6. High quality variable speed fan, change the spead of radiator temperature high or low.
7. Provides a variety of input, output connection way.
LP-1 amplifier specifications:
| LP-1 power amplifier specifications | |
| Power per channel 8 ohms (1) | 300W |
| Power per channel 4 ohms (1) | 450W |
| Power bridged mono 8 ohms | 850W |
| Power bridged mono 4 ohms | 950W |
| Signal to noise ratio (20 Hz - 20 kHz) | 102dB |
| Frequency response | 15Hz~25KHz |
| Phase response | 15hz to 25kHz |
| Intermodulation Distortion | 0.06% |
| Slew rate | 42V/us |
| Crosstalk | 70dB |
| Input sensitivity 8 ohms | 0.77/1.0/1.44V |
| Input sensitivity 4 ohms | 0.77/1.0/1.44V |
| Voltage gain | 75:1 +/-3% |
| Power supply (3) | Toroidal transformer |
| Damping factor @1kHz / 8 ohms | 810 |
| Damping factor @100Hz / 4 ohms | 610 |
| Input impedance | 10kΩ un baianced -20kΩ baianced |
| Cooling | High/Low Automatism Cortrol |
| Input connectors, each channel | Balanced XLR and 1/4"(6.3mm)TRS |
| Output connectors, each channel | "ouch-proof"binding posts & SPEAKON |
| Grounding floating switch | Ground/Lift |
| Working mode (stereo/parallel/bridge) | stereo/parallel/bridge |
| Amplifier protections | DC Safeguard/out Overloading/Chancrois |
| Sgartup/Boot-Strap Short Test | |
| Active limiter (6) | commpressor |
| Active limiter ON/OFF switch | on/off |
| Rack sixe | 2U |
LP-1 amplifier:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
