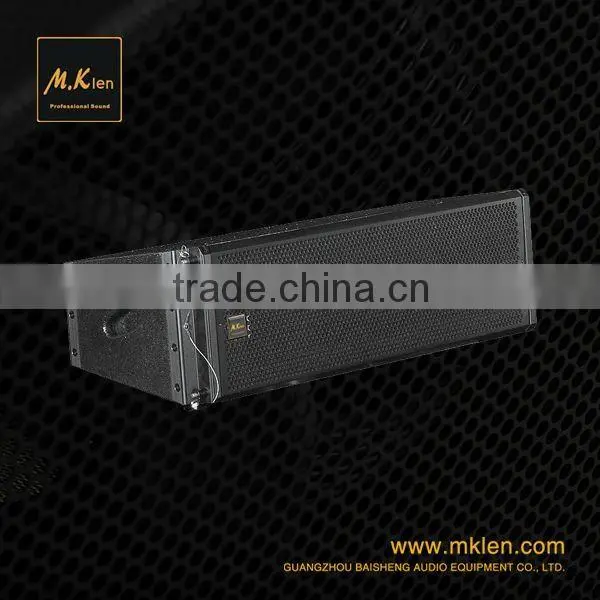

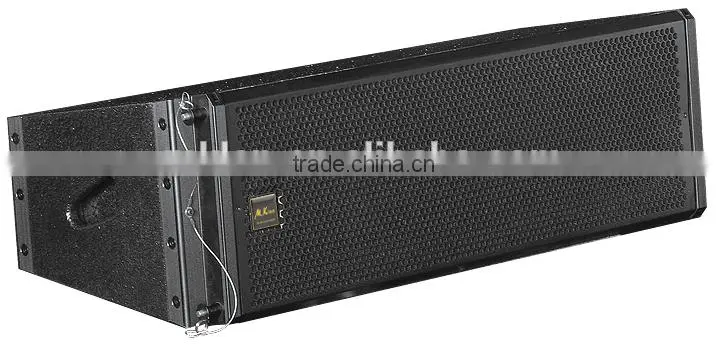

1. This is a 10inch line array speaker,4pcs line array+1pc subwoofer can be composed of a good line array system.
2. This model is very easy to install,we gift the pins and bolt accessories if u purchse the line array system from us,but the fly kit need to charge extral fees.
3. This line array is widely used in outdoor flowing performance.If you intersted our line array,we can according to ur usage occasson to provide a good solutions for u!
M-100MKII line array specifications:
| Operating frequency range2 | 70 Hz-18k Hz |
| Frequency response3 | 76 Hz-16kHz±4 dB |
| Phase response | 1.5 kHz-16 kHz±30° |
| Maximum peak SPL | 131 dB |
| Dynamic range | >110 dB |
| Acoustical crossover | 1100 Hz |
| Horizontal coverage | 100° |
| Recommended Amplifiers | 500 to 1200Watts into 16Ω |
| Vertica coverage | Varies, depending on array length and configuration |
| Low/low-mid frequency | Two 10 cone |
| Nominal impedance:8Ω | |
| Voice coil size:2X1.4(44mm) | |
| Power handling capability:600W(AES);1200W peak | |
| High frequency | 1(25mm)compression driver |
| Nominal impedance:8Ω | |
| Voice coil size:1.7(44mm) | |
| Power handling capability:180W (AES);360W peak | |
| Connectors | 2×NL4MP 4-pole SPEAKON |
| Input impedance | 10kΩ differential between pins 2 and 3 |
| Nominal input sensitivity | o dB V (1 V rms,1.4 V pk) continuous is typically the onset of limiting for noise and music. |
| Dimensions | 300X952X445MM |
| Weight | 34kg |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
M-100MKII line array box design:
M-100MKII line array driver configuration:
