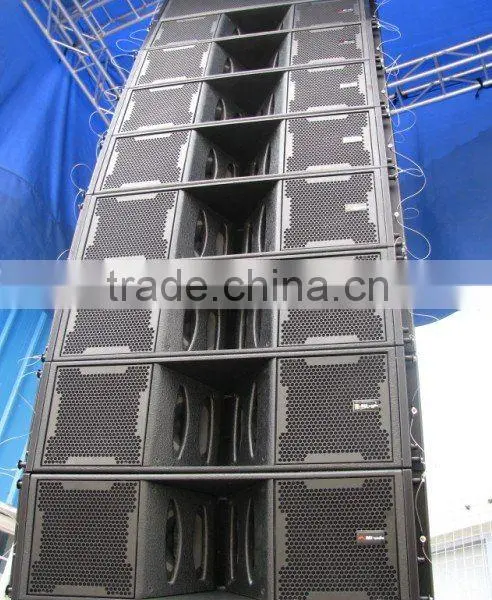

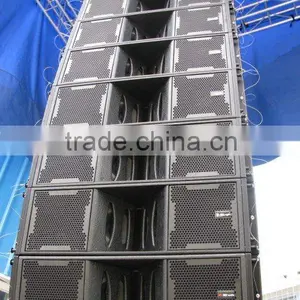

1. M150MKII is a line array loudspeaker for long throw distance sound reinforcement.
2. Using the M150MKII Flying Frame it can be flown in vertical columns with up to 16 cabinets.
3. M150MKII is a four-way design housing fitted with two 15" LF drivers, four 8" Mid drivers and two HF 3" drivers.
4. The cylindrical wave segments of each cabinet can couple without gaps coherently angles between adjacent can be set in the range from 0°to 7°.
M150MKII line array specifications:
| Type: | Compact, four-way passive |
| Frequency Response(-10dB): | 50Hz-18kHz |
| Frequency Response(-3dB): | 55Hz-18kHz |
| System Input Power Rating: | 1800W Continuous 3600W Peak |
| Max Calculated SPL: | 134dB Cont 140dB Peak |
| Horizontal Coverage: | ≥90° |
| Vertical Coverage: | Vertical coverage angle change according to the different quantity configuration. |
| LF Power Handing: | 2x500W Cont, 2000W Peak |
| MF Power Handing: | 4x200W Cont, 1600W Peak |
| HF Power Handing: | 2x90W Cont, 360W Peak |
| Sensitivity(LF/MF/HF): | 97/96/110dB |
| LF to MF crossover Freq.: | 450-750Hz |
| MF to HF crossover Freq.: | 1680Hz Passive or Active |
| LF Passband: | 2x15" 15G811 Ferrite, 8ohms/pcs |
| MF Passband: | 4x8" M8D110 Ferrite: 8ohms/pcs |
| HF Passband: | 2x3" DH750-16 Neodymium, 8ohmw/pcs |
| Connectors: | Neutrik:2*EP8 |
| Install Dim: | (H)490X(W)550X(D)1330mm |
| Net Weight: | 87kg |
| Range Inputs: |
±1: LF(1) ±2: LF(2) ±3: MF ±4: HF |
Components specification:
| Speaker parameters | |||||||
| LOW 15G811 | |||||||
| Model | Nominal diameter | Power handing capacity | Program power | Nominal impedance | Sensitivity (1W/1m) | Frequency range | Voice coil diameter |
| inch. | W(AES) | Watts | Ω | dB | Hz | in | |
| 15" | 500 | 1000 | 8 | 97 | 40-2.5K | 4" | |
| Speaker parameters: | |||||||
| Mid M8D110 | |||||||
| Model | Nominal diameter | Power handing capacity | Program power | Nominal impedance | Sensitivity (1W/1m) | Frequency range | Voice coil diameter |
| inch. | W(AES) | Watts | Ω | dB | Hz | in | |
| 8 | 200 | 400 | 8 | 94 | 65-4K | 2 | |
| High DH750-16 | |||||||
| Model | Throat diameter | Power handing capacity | Program power | Nominal impedance | Sensitivity (1W/1m) | Frequency range | Voice coil diameter |
| inch | W(AES) | W | Ω | dB | Hz | in | |
| 1.5 | 150 | 300 | 16 | 110 | 800-18K | 3 | |
♦ We support Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

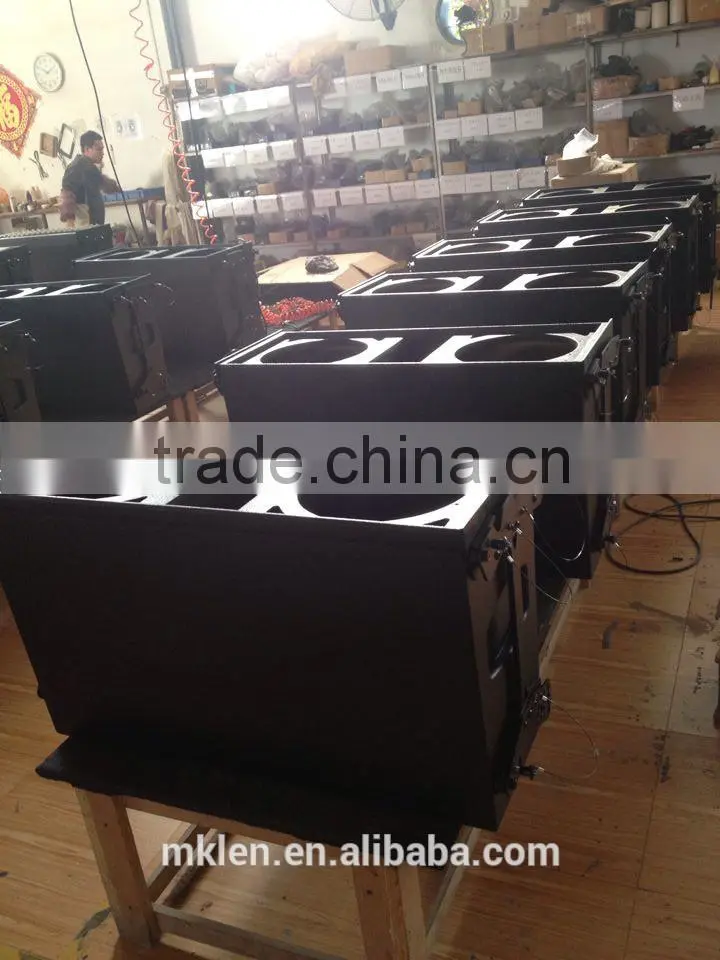

Our Showroom & Workshop:
