Help CenterTube End Forming Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OMS
Model Number:
TE1K20-3/F
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHONGSHAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tube End Forming Processing MachineNegotiableMOQ: 1 Set -
Auto Loading and Unloading Tube End Forming MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
Pipe End Forming MachineNegotiableMOQ: 1 Set
-
Pipe End Former/Forming MachineUS$ 13,500 - 20,000MOQ: 1 Set
-
Pipe End Former With Flinging Mode TE1K20-3/FNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
OMS
Model Number
TE1K20-3/F
After-sales Service Provided
Engineers available to service machinery overseas

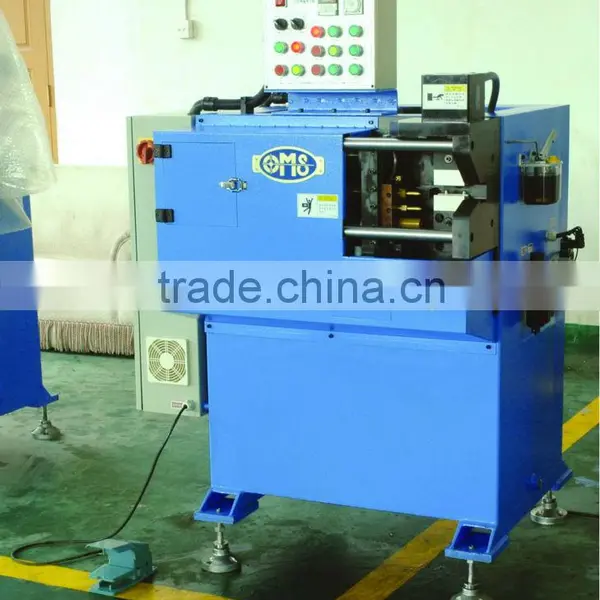

OMS end forming machine is comprised of a machine body, dies, a hydraulic system, a pneumatic system, and an electrical system.
The machine secures the tube by a clamping die, and punches the tube ends with different shapes of punch pins, so the tube ends will be enlarged or narrowed to meet brazing requirements. Equipped with a loading device, the process can be fully automated.
You may click this link in Youtube to see the video of the machine:
http://youtu.be/3m-dvYSA_14
| No. | Item | Content | ||
| 1 | Copper tube ( O.D *W.T) | 20mm*1mm | ||
| 2 | Max process power | 2100KG | ||
| 3 | Max clamping travel | 30mm | ||
| 4 | Max punch travel | 75mm(adjustable) | ||
| 5 | Max coaxial error | < 0.1 | ||
| 6 | Max error(out of roundness) | < 1 % | ||
| 7 | Max error of machining depth | < 0.5 | ||
| 8 | Machining unit | 3 | ||
| 9 | Machining cycle | 3PCS/7S | ||
| 14 | Compressed air pressure | 0.4-0.6Mpa | ||
| 15 | Hydraulic system pressure | 5-7Mpa | ||
| 16 | Cooling mode of hydraulic system | Wind cooling | ||
| 17 | Total power | ≤2.2KW | ||
| 18 | Power supply | According to customer's need | ||
