tube end forming processing machine
- 1000 Set / Sets per Month
- Zhongshan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OMS | |
| Model Number | TE1K30-6/FW | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

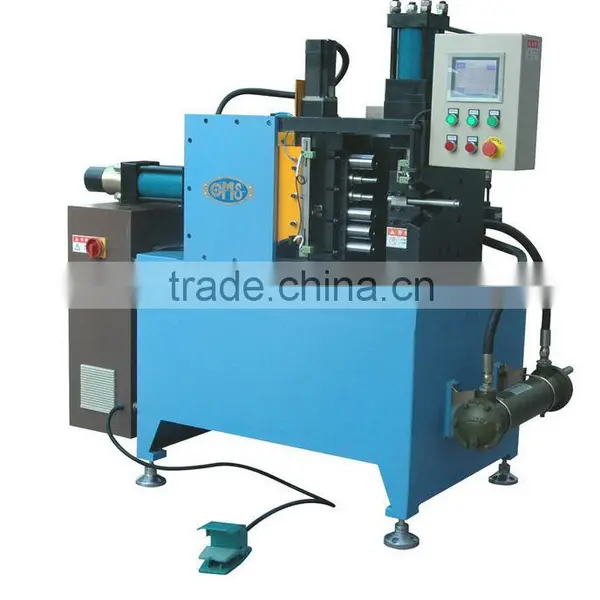

OMS end forming machine is comprised of a machine body, dies, a hydraulic system, a pneumatic system, and an electrical system.
The machine secures the tube by a clamping die, and punches the tube ends with different shapes of punch pins, so the tube ends will be enlarged or narrowed to meet brazing requirements. Equipped with a loading device, the process can be fully automated.
You may click this link in Youtube to see the video of the machine: http://youtu.be/3m-dvYSA_14
1 | Max tube diameter | φ30mm | 12 | Max clamping force | 6000kg |
2 | Max wall thickness | 2mm | 13 | Max clamping travel | 40mm |
3 | Work positions | 6 | 14 | Max processing force | 8000kg |
4 | Efficiency | 6p/10sec | 15 | Max depth tolerance | <±0.5 |
5 | Electrical control | PLC | 16 | Roundness tolerance | 0.02mm |
6 | Operating mode | Auto/Manual/Jog | 17 | Moving dies space | 45 |
7 | Loading method | By hand | 18 | power | 3 phase 380V(50±1)HZ |
8 | Driving mode | Hydraulic | 19 | Hydraulic motor power | 7.5KW |
9 | Processing mode | Cold forging | 20 | Hydraulic system pressure(maximum) | 7Mpa-12Mpa |
10 | Positioning precision | 0.05mm | 21 | Cooling mode | Fan cooling |
11 | Punching head travel | 180mm(adjustable) | 22 | Die moving mode | Servo |
