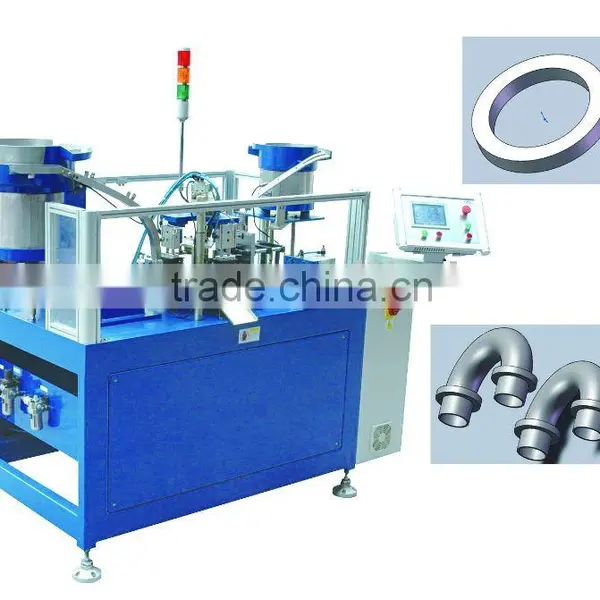

Ring inserted machine
ring loader,Use: the equipment is used to load welding ring onto return bend automatically, which is applied to air condition condenser& evaporator, water heater. It works with full automatic mode.
Feature:
1) High degree of automation
2) Convenient operation and exquisite appearance
3) Servo motor index plate and accurate location
4) PLC and touch screen for centralized control
5) To have face lifting device of pipe-end
Specifications:
1) Machining pipe diameter: φ7; φ7.94; φ9.52
2) Power supply: 3-phase AC 380V±10%50Hz
3) Efficiency (machining number of per min): 50-60pcs
4) Total power: ≤7.5kW
5) Central distance precision after ring loaded: ±0.1mm
6) Pressure of compressed air: 0.4-0.6MPa
7) Depth of ring loaded: 6.0±0.6mm
8) Driving mode of turntable: AC servo motor with precise planetary
gear reducer
9) Deformation rate of pipe-end: <3%
10) Material loading mode: return bend and welding-ring are loaded by
vibrating tray
