Automatic Return Bender

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

OMS

OMS Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name OMS

Model Number TBSU7-5Q/21Q

Machine Type Other, heat exchange processing equipment

Raw Material Pipe

Material / Metal Processed Brass / Copper

Power Cnc

Automation Automatic

Extra Services Cut To Length

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Specifications

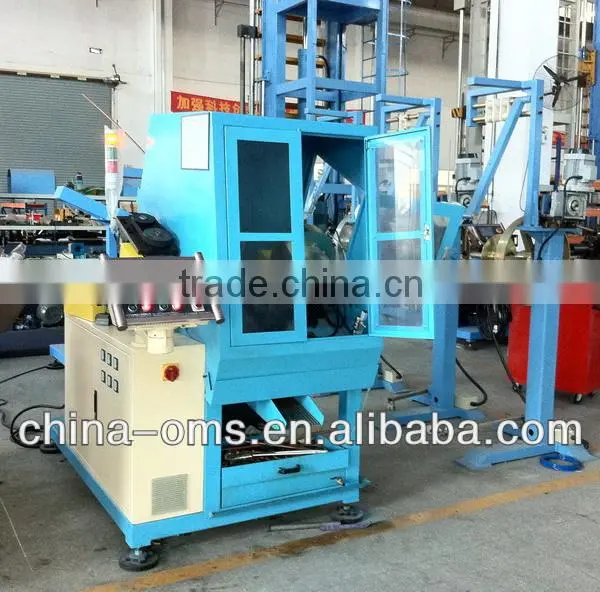

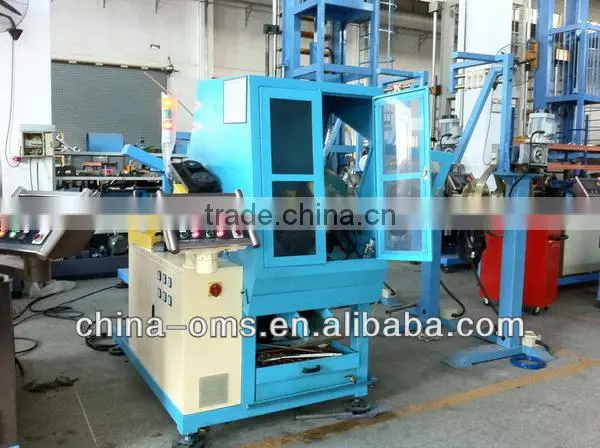

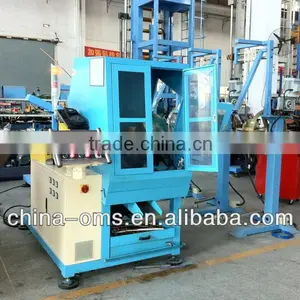

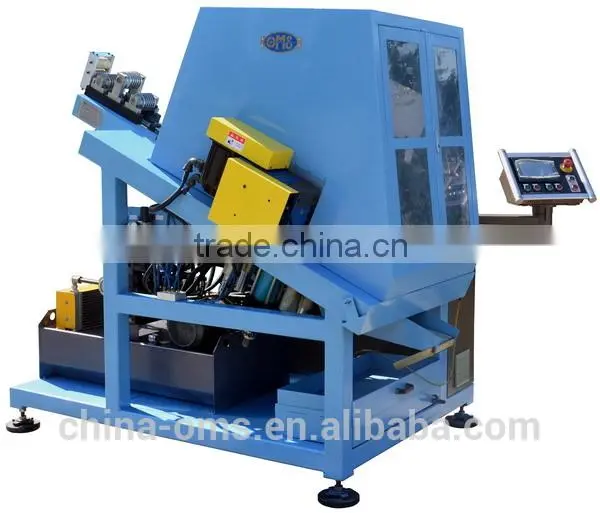

Return bender

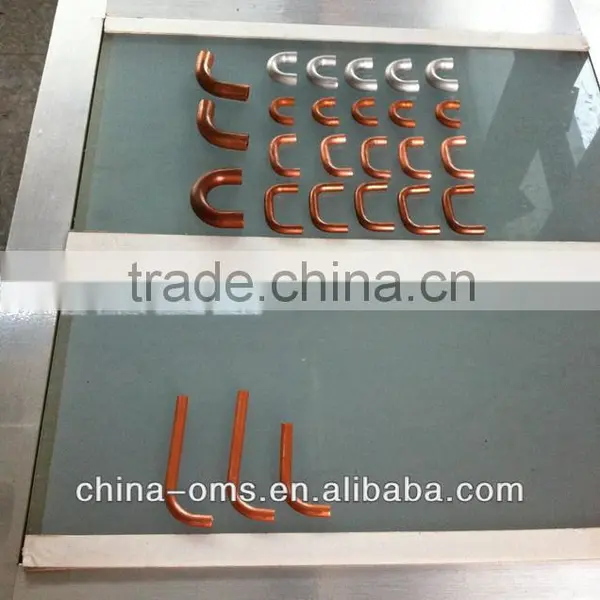

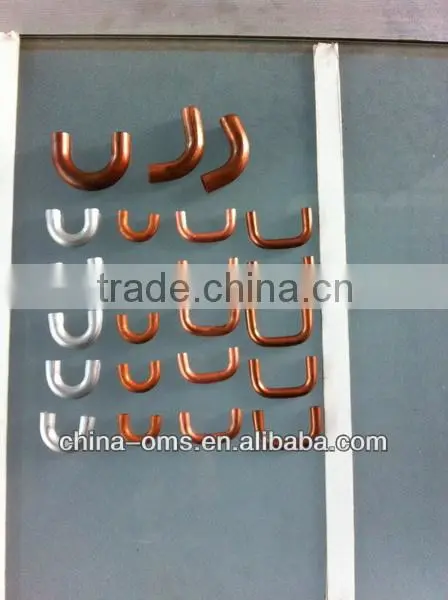

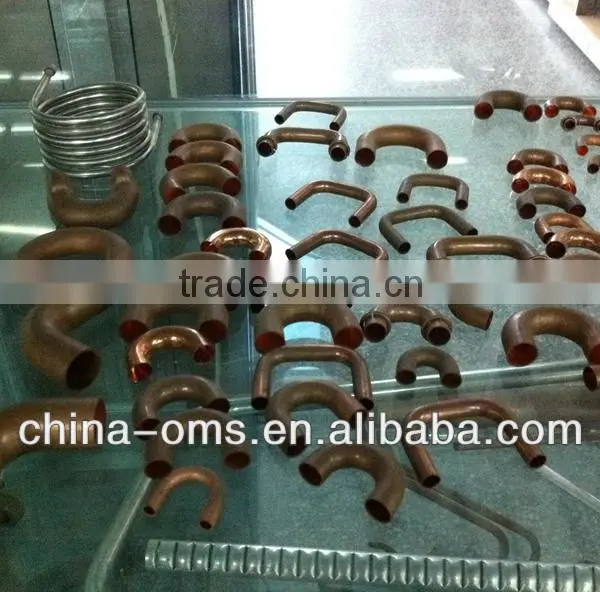

The equipment is used to uncoil, straighten, saw cut and bend coil copper pipe into return bend.

Return bender

The machine is mainly applied to air-condition condenser and evaporator, water heater, etc.

Features:

1. High degree of automation

2. Servo motor control bending

3. Convenient operation, exquisite appearance

4. Internal dust collector

5.Five lines of pipes bent at the same time.

No.	Item	Content
1	Copper tube (O.D* W.T)	φ7* 0.38
2	U-Bend pitch	21mm±0.1mm
3	U-bend height	as per customer's requirements
4	Processing material	purple copper tube/Alu(coil)
5	Number of tubes simultaneously bended	5 pcs
6	Length precision	±0.5mm
7	Length tolerance of two ends	≤0.5mm
8	Flatness rate	≤15%
9	Tube end flatness	≤5%
10	Height of burr	≤0.2 mm
11	Cutting mode	Saw cutting
12	Material decoiler	Eye to eye decoiler (without motorized power)
13	Efficiency	40pcs/minute
14	Compressed air pressure	0.4-0.6Mpa
15	Hydraulic system pressure	7Mpa
16	Cooling mode of hydraulic system	Fan cooling
17	Overall size(LWH)	8000mm1300mm3012mm
18	Total power	≤5.5KW
19	Power supply	as per customer's requirements
