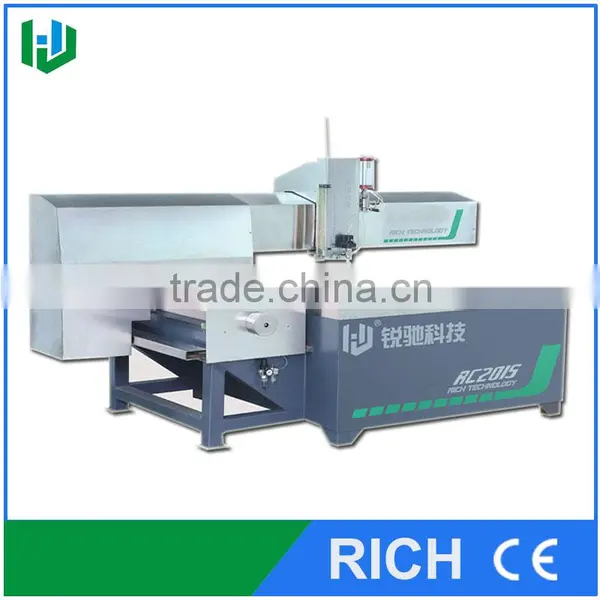

Marble water jet cutting machine
Item |
Waterjet cutting machine |
|
Model |
RC2015 |
|
Structure |
Flying-arm |
|
Cutting table size |
2100*1600mm |
|
Stroke |
X-axis |
2000mm |
|
Y-axis |
1600mm |
|
Z-axis |
130mm |
CNC Controller |
Step System / AC Servo System |
|
Accuracy |
±0.1mm |
|
Cutting |
Repeatability |
±0.05mm |
|
Traverse speed |
6500/15000 mm/min |
Power supply |
220V/380VAC,50Hz |
|
Turbocharger parameters | |
Item |
Waterjet cutting machine |
Model |
450B |
Maximum pressure |
450Mpa |
Normal operating pressure |
350-380Mpa |
Main motor power |
37KW |
Oil pump |
Variable |
Cooling |
Wind/Oil/Wind |
High-pressure cylinder |
Imported |
Inlet valve |
Imported |
Ceramic rod |
Imported |
Accumulator |
Single taper |
Power supply |
415/380/220V AC 3P |
Cantilever feature:
1.The user can load and unload parts from three directions. To overcome the shortcomings of the narrow the gantry machine loading and unloading space.
2.Servo drive configuration Taiwan ball screw, linear guide can achieve seamless movement, to ensure smooth operation.
3.Quality dustproof device, all with integral stainless steel dust cover. Beautiful and durable. Scrub.
4.Bed and cutting platform split design, impact and vibration cutting, improve cutting accuracy.
5.Steel base, beams imported high quality seamless steel pipe, invisible change.
6.The use of pneumatic control water shut-off valve, greatly improving the life of the water shut-off valve needle.
7.All stainless steel protective cover, dustproof, waterproof, anti-rust, anti-corrosion, easy to use water to clean, maintain the cutting platform perennial burnished as new.

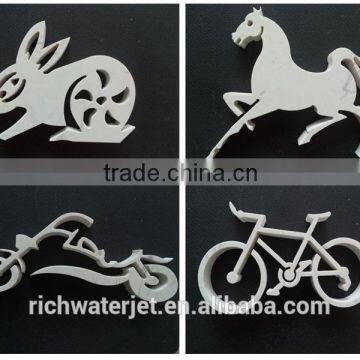

| Material | Stainless Steel | Plastic foam | Aluminum | Glass | Ceramic | Marble |
| Thickness(mm) | 80mm | 300mm | 120mm | 120mm | 80mm | 80mm |
Foshan Rich Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
Quantity Terms |
MOQ: 1 set |
Payment Terms |
T/T, L/C, D/P etc. |
Quality Terms |
One year warranty expect the easy-damaged parts. |
Delivery Time Terms |
Time of delivery is 30 days after receipt of deposit. |
Brand’s Terms |
Use factory’s own brand and can do OEM . |
Package |
Soft packing, use 20’ container to deliver |
A. Customize Design: Our cutting table size could be design as customers requirement.
B. Good Service: We provide the pre-training, best after sell service.
C. High Quality: Most of equipments are good material which ensures a long service life and we have a strict quality control system.
D. Profession on Export: Authorized import & export license, A professional oversea sell team to service our vip clients.
E. Fast & Cheap Delivery: We have long-term cooperation forwarder, who can deliver our equipment to every corner of the world with competitive freight.
F. Customer first, satisfying customers forever.
“RICH Quality, serve the world”, we are full of confidence, because in your support and cooperation, we will make our career be on the upgrade. Warmly welcome you to visit our company, service information, technical support, guidance and business negotiation.
1.Skype:kittywu12201
2.Phone:+86 13827785699
