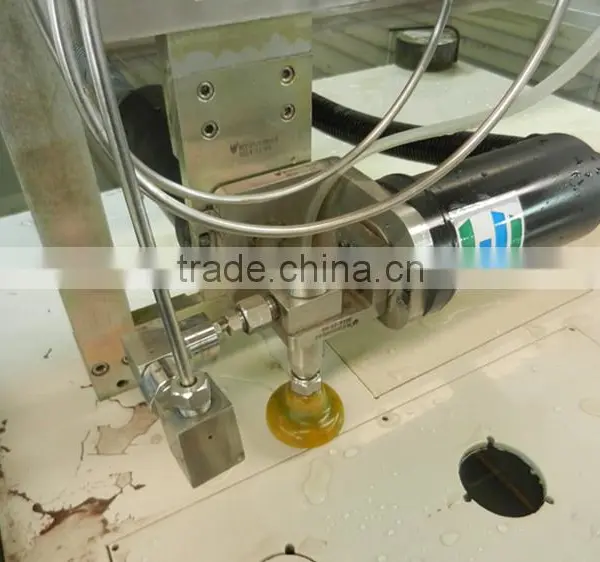

table size 4000*2000mm waterjet cutting machine
- 200 Set / Sets per Month
- Foshan/Huangpo
- T/T D/P D/A Credit Card
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | RICH | Model Number: | RC4020(Bridge) |
| Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

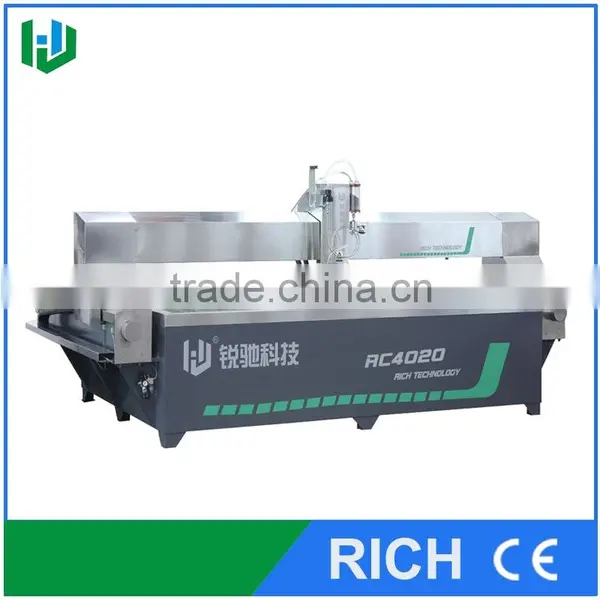

Table size 4000*2000mm waterjet cutting machine
| RICH waterjet cutting machine description | |
| power supply | 240V/380 V /460VAC, 50/60 Hz |
| Power | 37KW |
| Max pressure of oil pump (MPa) | 31.5 Mpa |
| Max pump pressure outflow | 71L/min |
| CNC hardware | Shanghai Weihong |
| X,Y ,Z axis control way | Yaskawa Servo drive |
| electrical element | Schneider |
| RICH waterjet cutting table | Parameter of the cutting table |
| 1.structure:5-axis bridge | |
| 2.Processing dimension:4000mm*2000mm | |
| 3.cutting table size:4100mm*2100mm | |
| 4.stroke:X-4000mm,Y-2000mm,Z-130mm | |
| 5.cutting accuracy:±0.1mm | |
| 6.repeat positioning accuracy:±0.05mm | |
| 7.Y-axis adopt the gear desgin, improve the cutting accuracy | |
| 8.people can choose the gear design in X-axis | |

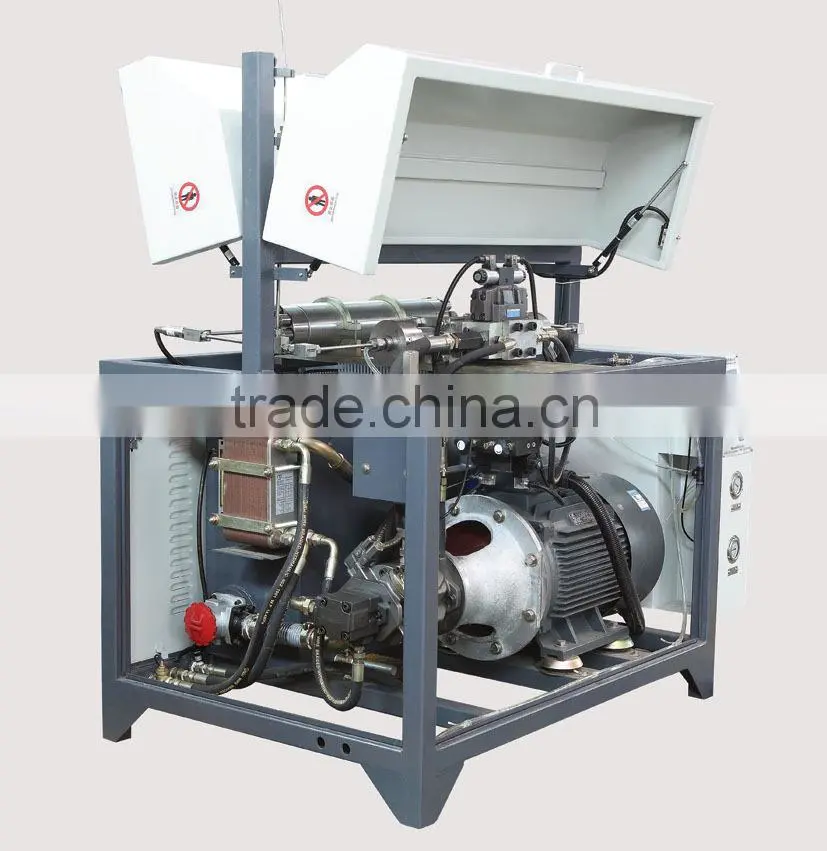

| RICH supercharger cabinet | Parameter of the supercharger |
 | 1.type of pressurization:hydraulic. |
| 2.Main motor power:37KW(SIEMENS) | |
| 3.Maximum pressure:450MPa | |
| 4.Normal operating pressure:350-380MPa | |
| 5.Power supply:415/350/220V AC 3P | |
| 6.Cooling: water-cooled(you also choose wind or oil cooling) | |
| 7.Accumulator(adopted Taiwan imported High pressure material) | |
| 8.Man-machine can show you some alarm records, for example, lack of water or oil, leak water or oil, over pressure, over temperature, and Maintenance time, etc | |

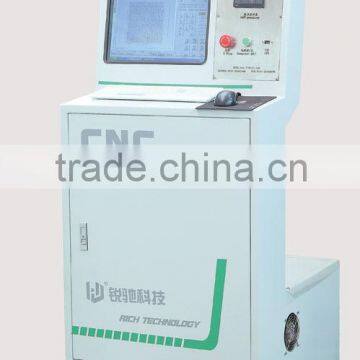

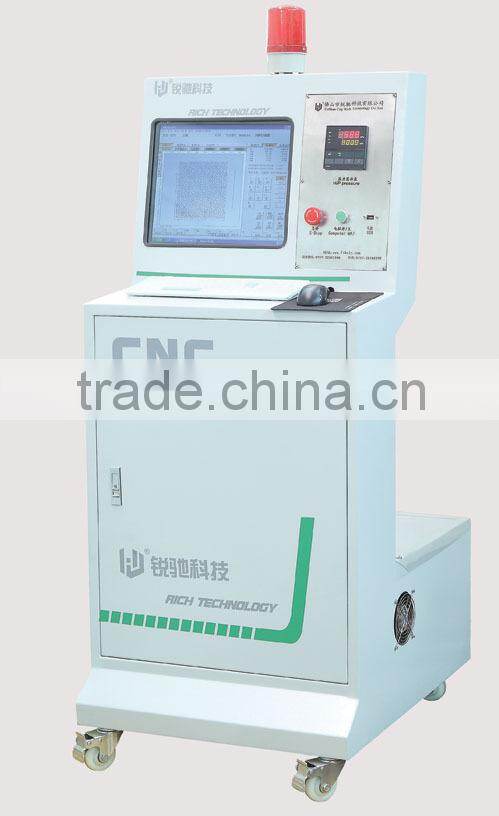

| RICH CNC controller | Parameter of the supercharger |
| | 1.CNC control, apply 17 inch LCD |
| 2.WIN 7 system, compatible ASC,IGS,DXF and DWG, etc graphic design software | |
| 3.It can also send and receive files by internet TCP/IP , USB port and PC. | |
| 4.Adopt specialized water jet cutting CAD/CAM software | |
| 5.Servo Driver from Japan(Yaskawa ) | |

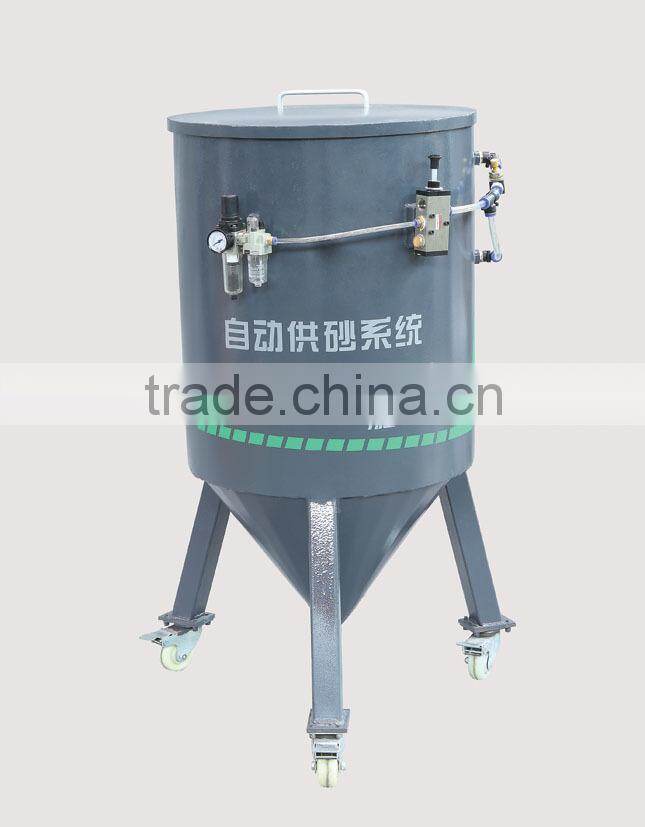

| Auto Abrasive Delivery System | Parameter of the auto abrasive |
| | 1.Pneumatics technology support, safe and reliable. |
| 2.It can provide sand with 2 waterjet cutting machine at the same time. | |
| 3.Store 200kg of sand at a time | |
| 4.The worker can add the abrasive directly without stop the waterjet cutting machine | |

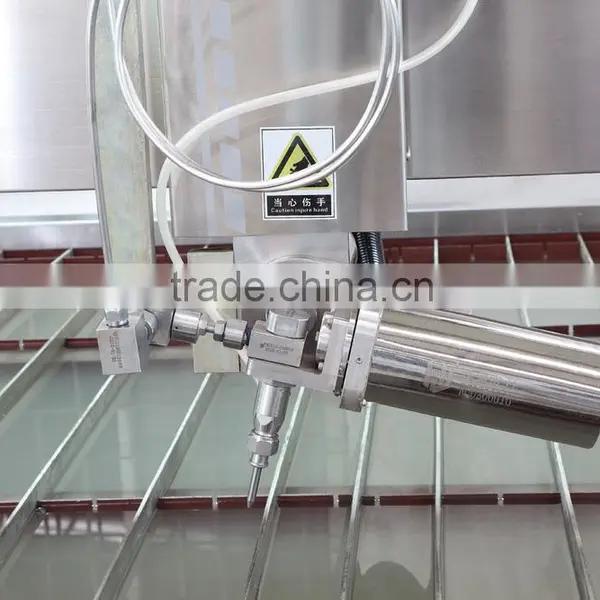

Tap water is impressed to 350-450Mpa by UHP Intensifier pump, and then a waterjet with high speed of 800-1000m/s is made through a small nozzle with bore size of 0.26-0.33mm.This waterjet has high energy and it can cut soft materials such as carpet, rubber, leather, etc. Furthermore, if the waterjet cutting machinery mixed proper quantity abrasive, it can cut all kinds of soft and hard materials. For the hard materials, such as glass, marble, ceramics, stainless steel, etc.

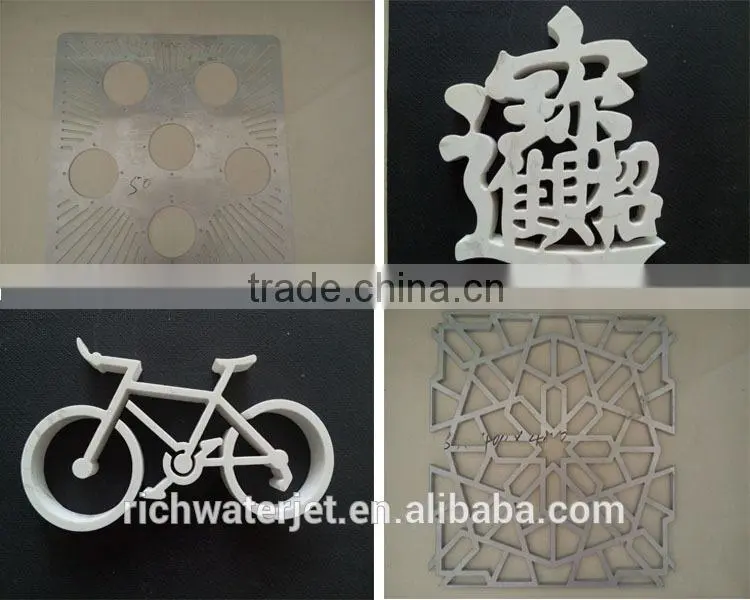

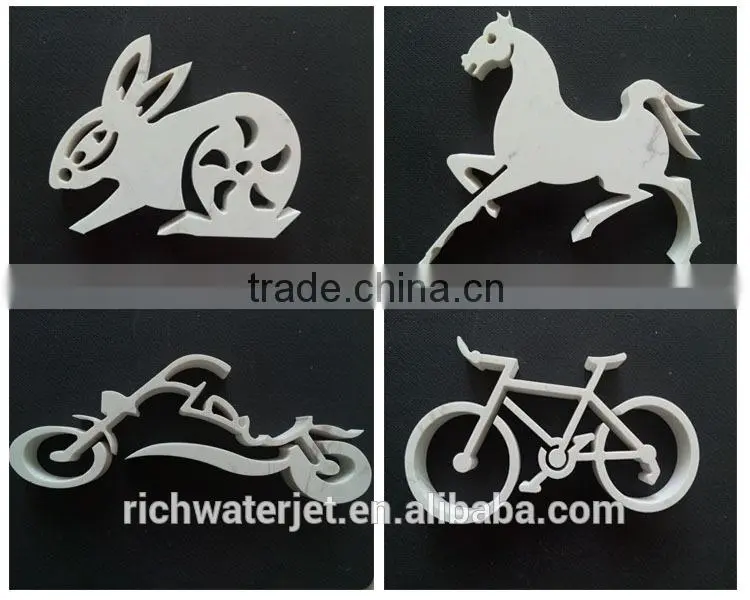

Cutting sample:
Certification (SGS &CE):
Foshan RICH Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
1. We are assure that the equipment is completely brand-new and will conform to the technical specifications.
2. The machanical guarantee on machinery and equipment shall be 12 months after the acceptance data(Vulnerable parts excluded).
3.We can offer overseas service for our client.
4.The client can send two workers to our factory for 10 days free training every year.
Packaging
1.general export package
2.customers package is welcome
1.Skype: kittywu12201
2.Phone:+ 86 13827785699
Our website: http://richwaterjet.en.china.cn
Contact Us
- Foshan RICH Waterjet Co., Ltd.
- Contact nameKitty Wu
- Phone0086-757-13827785699
- AddressNO.10# INDUSTRY ROAD, SHISHAN INDUSTRY ZONE, NANHAI,FOSHAN, GUANGDONG, CHINA Foshan,Guangdong
-
