650W 850W CNC YAG Laser Metal Cutting Machine
YAG laser generator is a developed technology, which expert laser beam of high density energy and focus on the surface of work piece, to make instant melting and vaporing of the area lighted by the superfine focus spot, then the automatic laser cutting can be realized when moving the light spot position by CNC mechanical system.
1.Machine structure:600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling,to make sure 20 years usage without deformation.
2.Speed:Adopting imported high-speed transmission system, the fiber laser machine reaching 20m/min cutting speed and 0.5G accelerated speed in China.
3.Configurations:
(1) 650W/850W yag laser generator
(2) AC servo Motor from Japan Panasonic.
(3) High precise pinion and rack,double-drive transmitting system and linear guide rail from HIWIN.
(4) Lens from USA II-IV
(5) Professional operation system.
4.Consumable parts:
(1) Protection lens.
(2) Nozzle.
(3) Light lamps
5.Applicable Industry:
It’s widely used in various industries, such as metal forming, aviation, aerospace, electronics, appliance, subway spare parts, automobile, grain machinery, textile machinery, engineering machinery, high precision accessories, vessel, metallurgy, elevator, arts and crafts, tool processing, decoration, advertising, metal processing service etc.
6.Applicable Materials
It is contact-free cutting for metal plates and tubes, especially appropriate for processing on stainless steel and iron plate, diamond saw blades, works perfectly with high hard and brittle alloy. In metal forming industry, the laser cutting can some way replace CNC punching and wire cutting. It’s mainly used for laser cutting on metal plate and tube, e.g., stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, pickle plate, galvalume plate, copper, silver, gold and titanium etc.

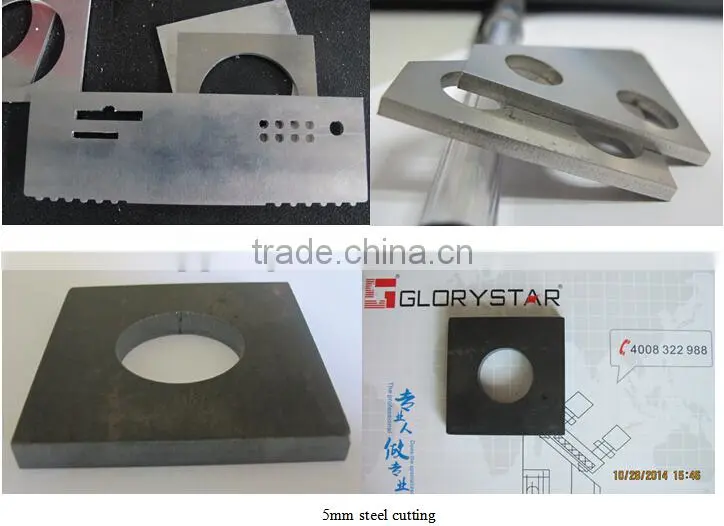

7.Cutting samples:
Technical Table
Laser Source |
ND:YAG 1064nm |
Output Laser Power |
650W / 850W |
Cutting Speed |
2.8-3.5m/min for 0.8mm carbon steel |
Minimum Line Width |
0.15mm |
Repeat Positioning Precision |
±0.02mm |
Pulse Frequency |
1-500Hz continuously adjustable |
Cutting Thickness |
≤10mm |
Power Consumption |
18KW |
CCD Positioning |
Red Light |
Working Area |
1300*2500mm, 1500*3000mm |
Working Voltage |
380V±5% / 50Hz-60Hz |
Supported Graphic Format |
DXF/DWG/PLT etc (compatible with Autou CAD Coreldraw) |
Agent Wanted all over the world!
