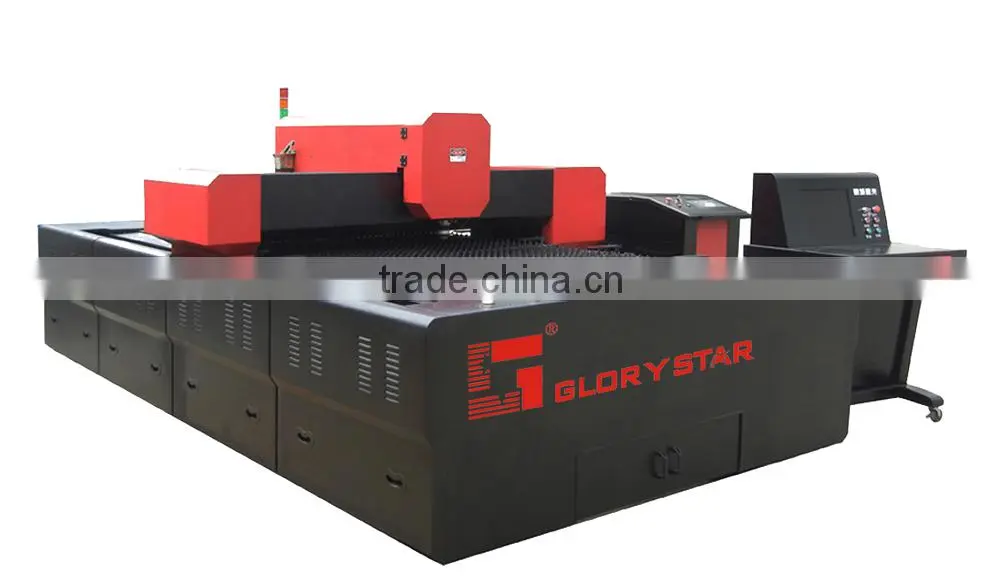

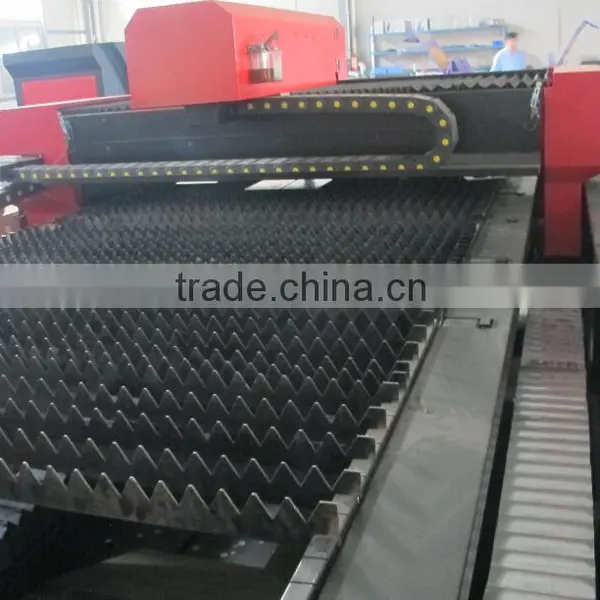

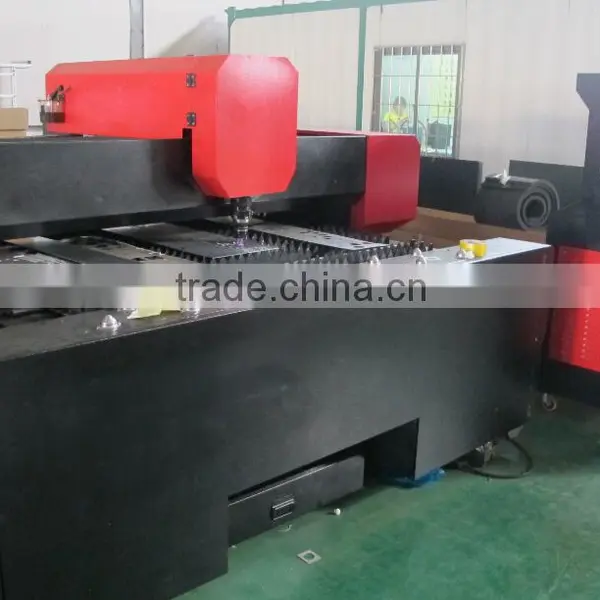

YAG metal laser cutting machine 650W
YAG metal sheet laser cutting machine is suitable to cut the thickness less than 6mm carbon steel, stainless steel, and thin aluminum plate, thin copper plate. This equipment adopts Japanese servo motor, Taiwan transmission components, imported optical lenses, the advanced laser control technology and automatic focus high and low following technology, not only to ensure the cutting speed, the edge effect and the accuracy is better than the other similar equipment, more to ensure good stability and operational reliability of the laser cutting machine.
Power : Nd: Yag
Mirrors: Copper ,directly cooled .gold plated .Diameter: 70mm
Lens: Zn Se Meniskus lens
Optics: Flying optics in X and Y axis
Servo motor: Mitsubishi Made in Japan
Driving system : Rack+Pinion,Guidings from HIWIN,Made in Taiwan
Table : Exchange Table
Imported Files : DXF ,CFL,CNC FILES
Software development in Germany
RSAS: Remote service and analyzing system.
Model No. |
GLM-1325 |
Max Laser power |
650W |
Laser wave length |
1064nm |
Cutting thickness |
≤ 9mm |
Max.cutting thickness |
3000mm/min |
Mini Line width |
0.15mm |
Repeated position |
±0.10mm |
Pulse width |
0.1-20ms |
Pulse Frequence |
1-500Hz |
Working area(mm) |
1300X2500(other working area on request) |
Controlling system |
Beckhoff Made in Germany |
positioning |
Red light pointer |
Whole power consumption |
≤ 20KW |
Power request |
380V/50Hz/60Hz/60A |
Water cooling |
Water |
dimension |
3000×1800×1800 |
Cooling machine size |
750×560×900 |

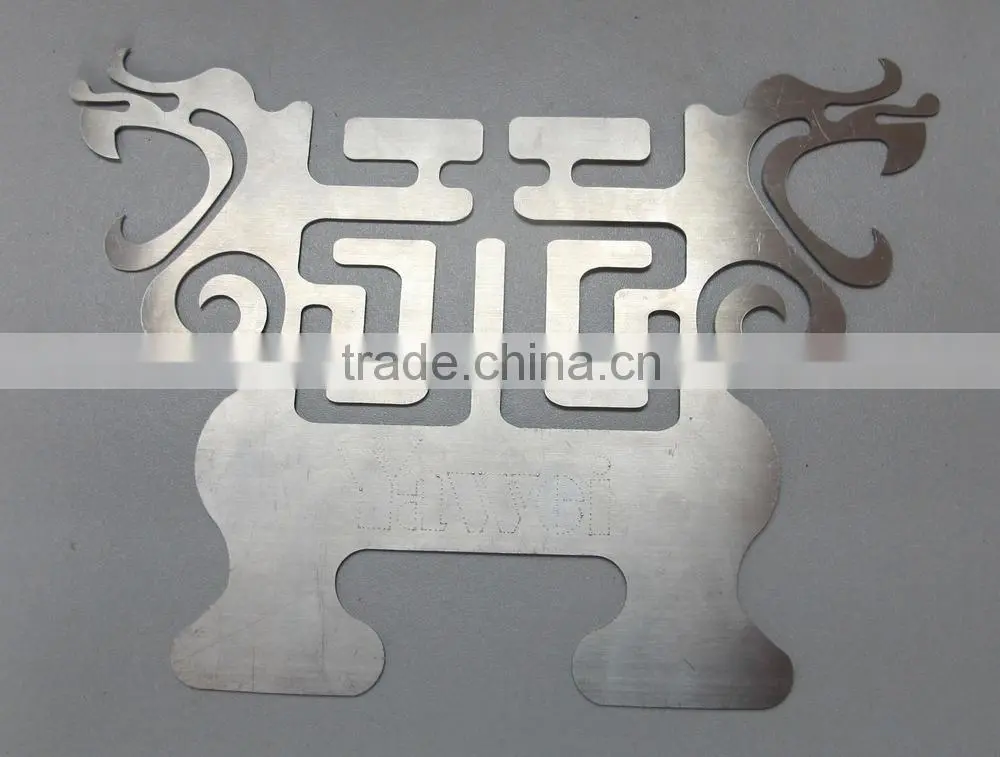

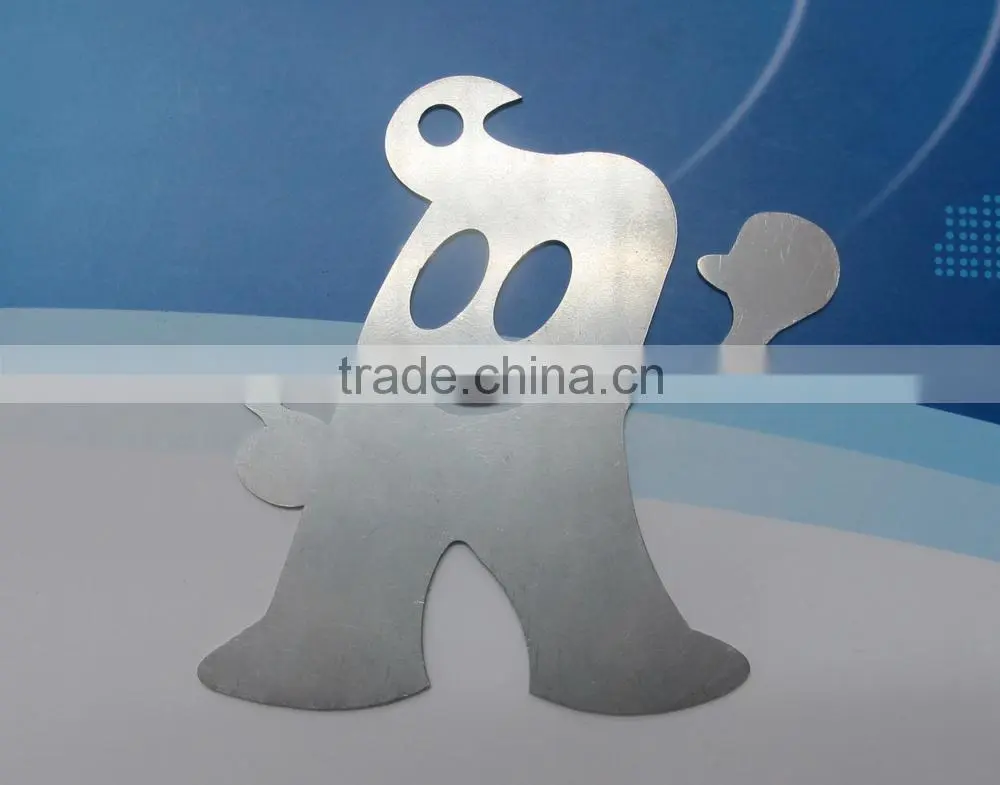

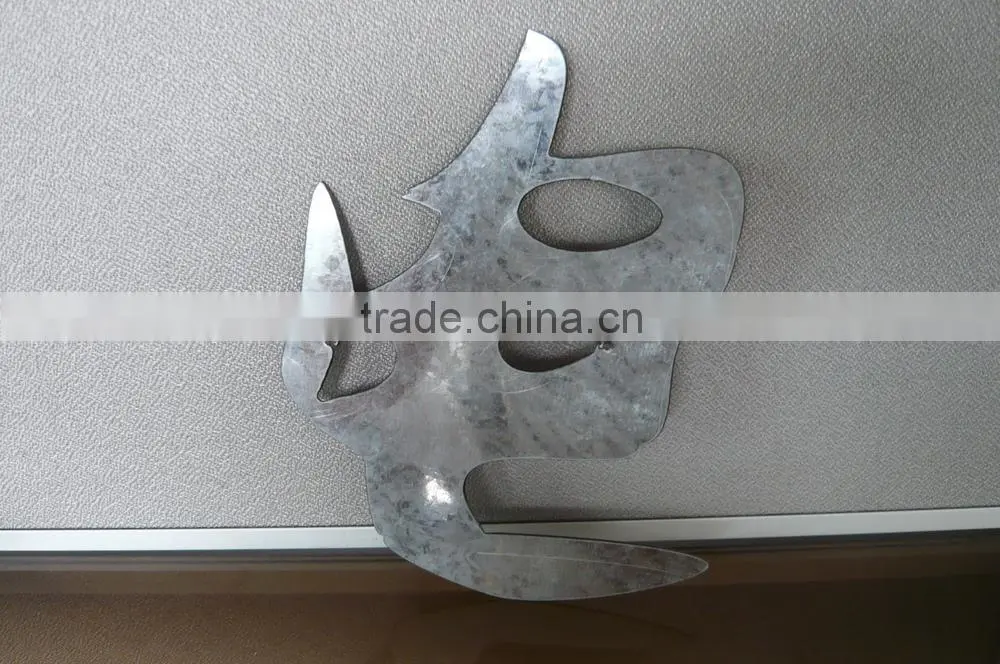

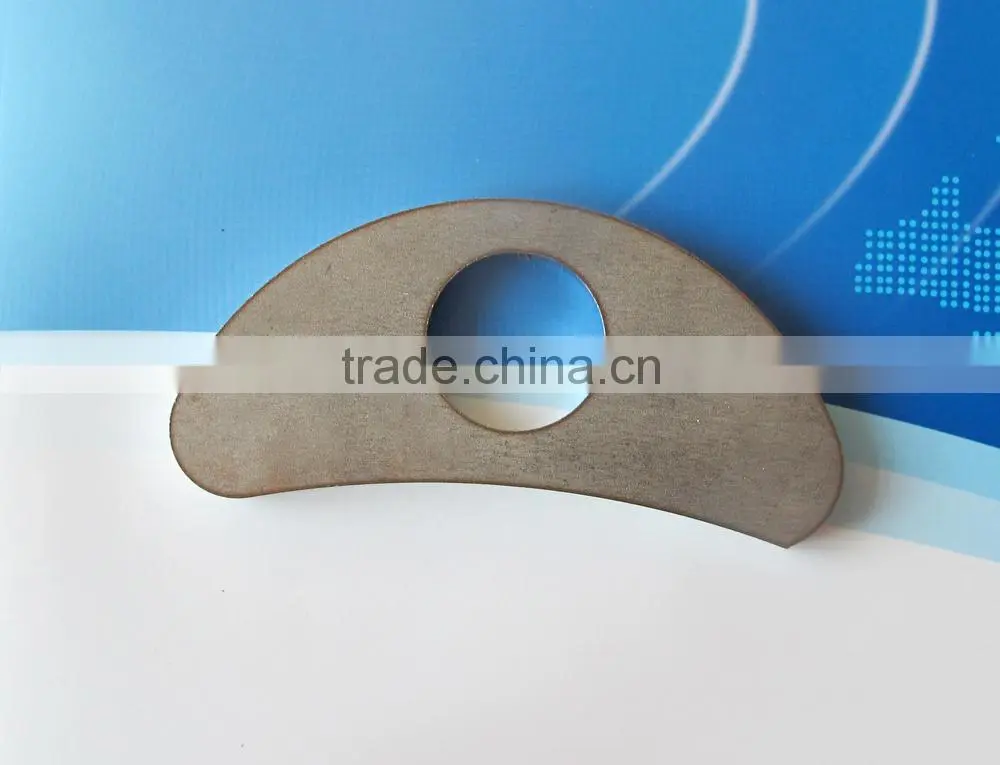

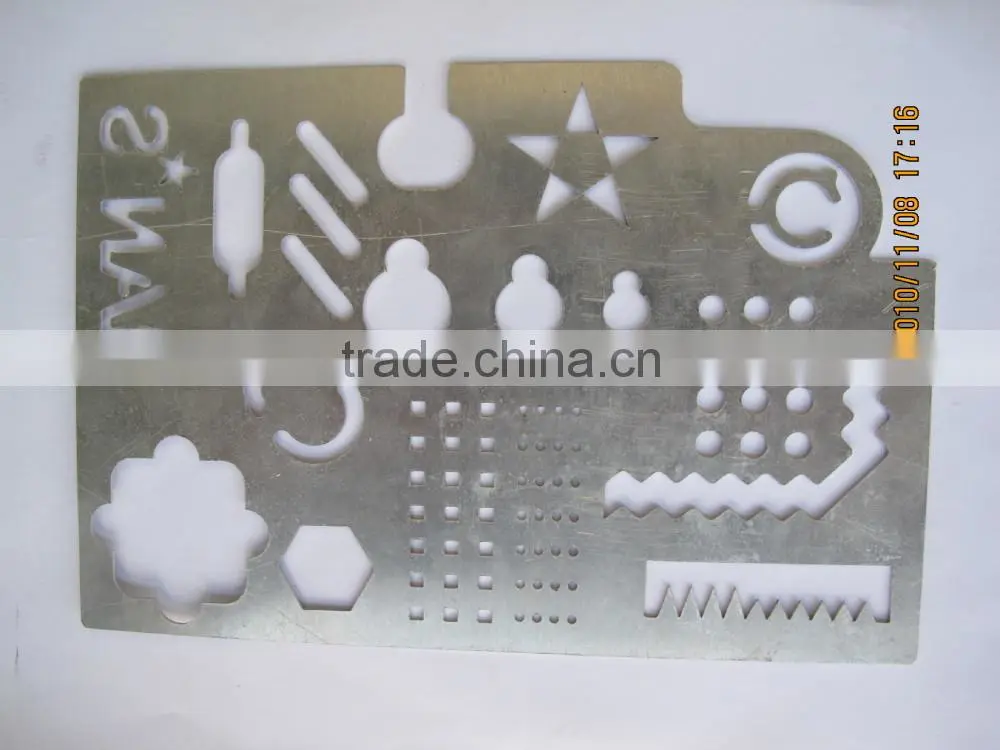

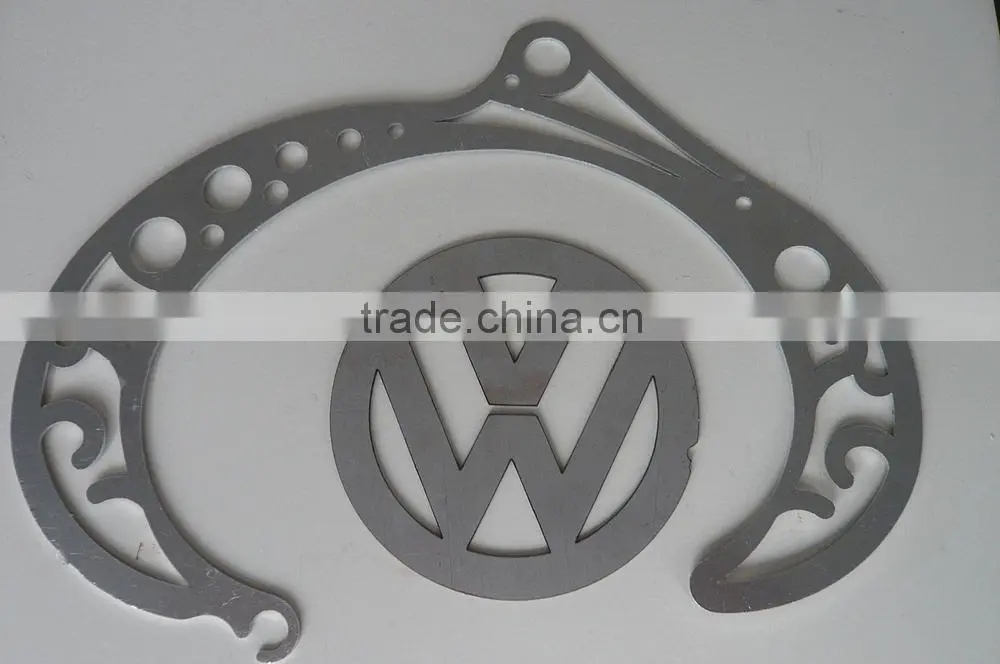

Sample photos
