500w / 1000w Stainless Steel Laser Cutting Machine for Sheet Metal Processing / Kitchen Ware / Elevators

 $Title$

Fiber laser generator is a developed technology, which expert laser beam of high density energy and focus on the surface of work piece, to make instant melting and vaporing of the area lighted by the superfine focus spot, then the automatic laser cutting can be realized when moving the light spot position by CNC mechanical system.

1.Machine structure:600°C heat treatment, 24 hours cooling in the oven, 8 meters gantry milling,to make sure 20 years usage without deformation.

2.Speed:Adopting imported high-speed transmission system, the fiber laser machine reaching 20m/min cutting speed and 0.5G accelerated speed in China.

3.Configurations:

(1).500W fiber laser generator from Germany IPG.

(2).AC servo Motor from Japan Panasonic.

(3).High precise pinion and rack,double-drive transmitting system and linear guide rail from HIWIN.

(4).Laser head from Germany Precitec.

(5).Lens from USA II-IV

(6).Professional operation system.

4.Consumable parts:

(1).Protection Lens.

(2).Nozzle.

5.Applicable Industry:

It’s widely used in various industries, such as metal forming, aviation, aerospace, electronics, appliance, subway spare parts, automobile, grain machinery, textile machinery, engineering machinery, high precision accessories, vessel, metallurgy, elevator, arts and crafts, tool processing, decoration, advertising, metal processing service etc.

6.Applicable Materials

It is contact-free cutting for metal plates and tubes, especially appropriate for processing on stainless steel and iron plate, diamond saw blades, works perfectly with high hard and brittle alloy. In metal forming industry, the laser cutting can some way replace CNC punching and wire cutting. It’s mainly used for laser cutting on metal plate and tube, e.g., stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, pickle plate, galvalume plate, copper, silver, gold and titanium etc.

7.Usage cost:

(1).Machine total power consumption:

  (2).auxiliary gases:

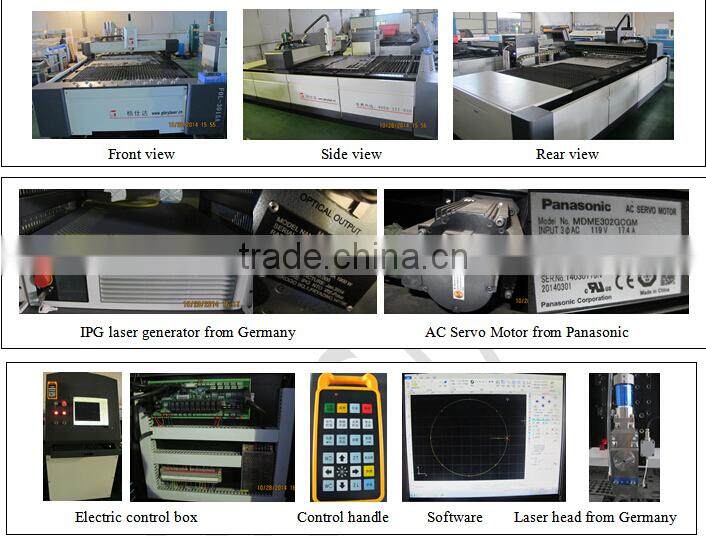

 8.Detail pictures:

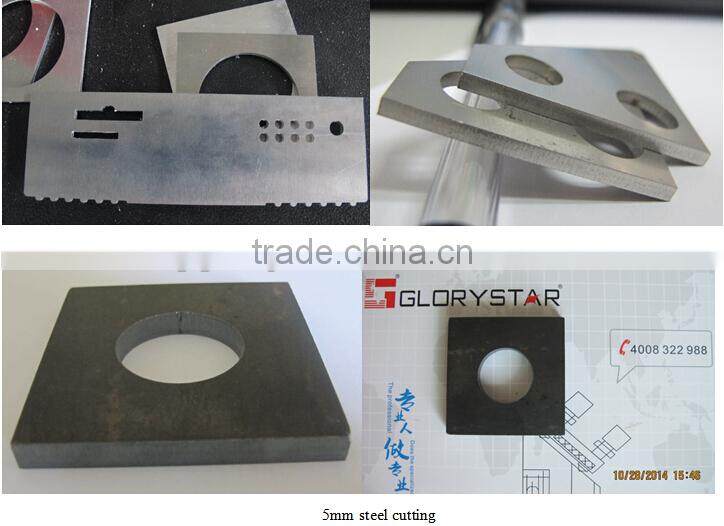

  9.Cutting samples:
