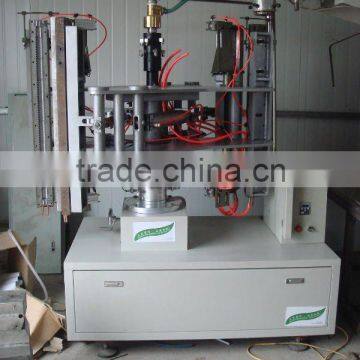

Seed Tube Extrusion Blow Machine

FOB Price

US$ 8,000 - 15,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, plastic pipe
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Hebei, China
Brand Name	zhongyi	Model Number	xsj-3
Voltage	380V	Power(W)	20.5KW
Dimension(LWH)	340014002200	Weight	1400KG
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

seed tube extrusion blow machine:
1.ours is a manufacture company
2.save energy
3.simple operation
4.fast-speed

seed tube extrusion blow machine:

type	XSJ-3
the length of the product mm	800-1100
the quantity of the mould head	1
the quantity of the mould	2
production capacity pcs/hour	700-800
screw diameter mm	65
screw L/D	1:25
the max quantity of extrusion HDPE kg/hour	55
mould-locking type	pneumatic
the max mould dimension mm	140×100×1200
blowing pressure Mpa	0.4-0.6
gas consumption m3/min	0.3
cooling pressure Mpa	0.2-0.3
the electric power of the extruder machine kw	11
The heating power of the extruder machine kw	9.5
LWH mm	3400×1400×2200
Weight KG	1400
the suitable raw material	PE/PP
