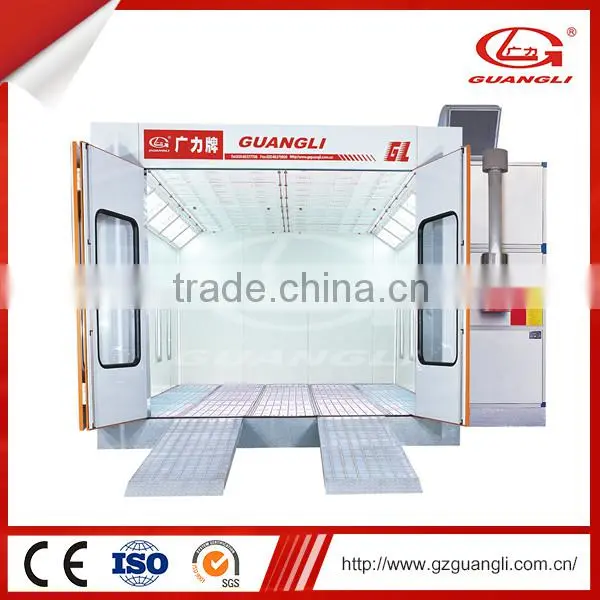

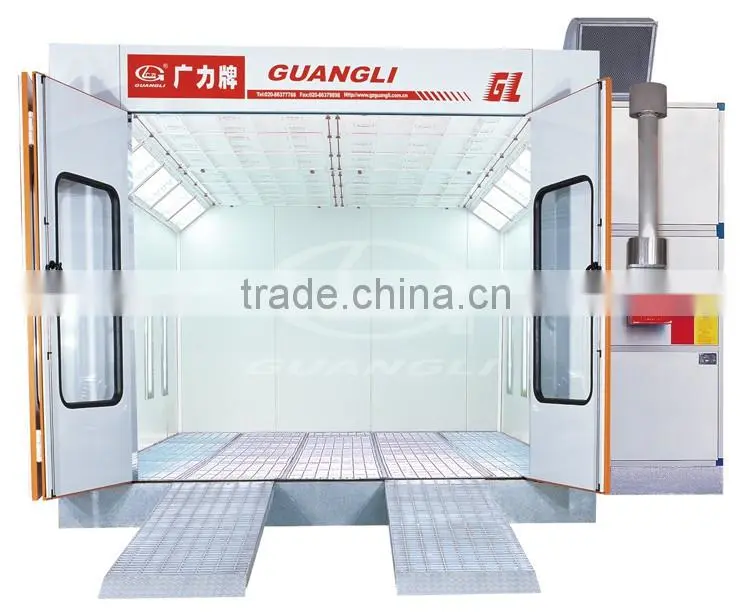

the Queen of Quality Equipped with VCD Exhaust Damper and Pressure Meter Powder Coating Car Spray Booth (GL3000-A1)
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.
--Basement: steel structure, full grids. ramp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
--One 7.5kw intake fan and one 7.5kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner.
--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.
--Control box: imported components, overload, overheat, phase-lacking,
phase-locking protection, engine Y star-delta start.
--Automatically stop when preset time is nstant temperature spraying.
--Environmental filter: the equipment can be adopted M style activated
| Technical Specifications | GL3000-A1 |
| External size(m) | 7.0×5.3×3.5 |
| Internal size(m) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 24000 |
| Inside on-load air speed(m/s) | 0.25-0.35 |
| Power (kw) | 13.5 |
| vehicle suited | Saloon car |

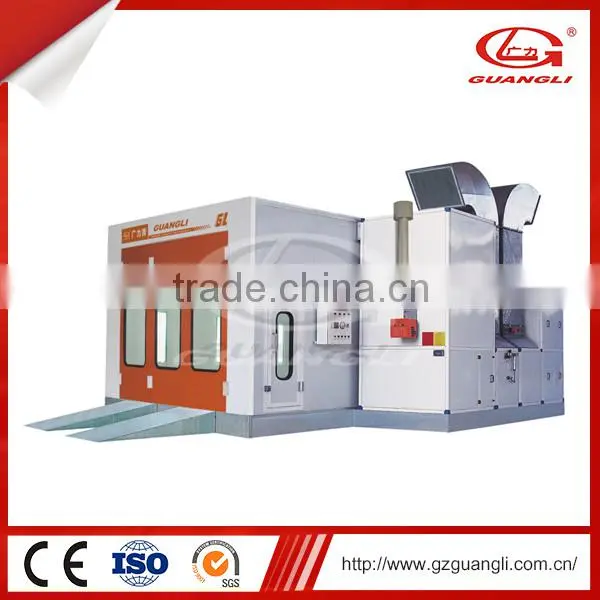

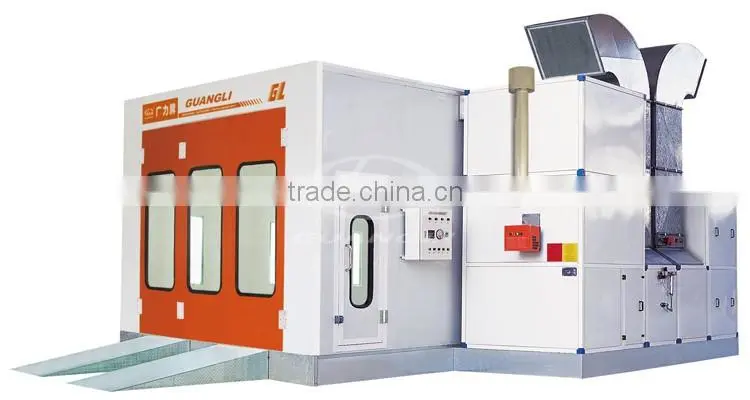

GuangLi Spray booth Show
GZ GUANGLI EFE CO.,LTD is a professional spray booth and car lift manufacturer in China wtih more
than 22 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005,
which covers 58000M³of grounding area and 36000M³of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having
a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks
top in this field over years.
Why choose us?
- More than 20-year experience in Spray booth and car lift field.
- Competitive price can be offered.
- Large order can be placed.
- Advanced equipment and exquisite workmanship.
- Durable and reliable.
- Good pre-sales and after-sales service
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001:
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
FAQ
Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources,our products are
excellent in performance and craftsmanship.
Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide different standards
according to your market and favor.
Q:What’s the MOQ for each items?
A:We accept one piece/set each time.
Q:What’s the delivery time?
A:If the product you ordered is our standard configurations, it’s 15 workdays.
