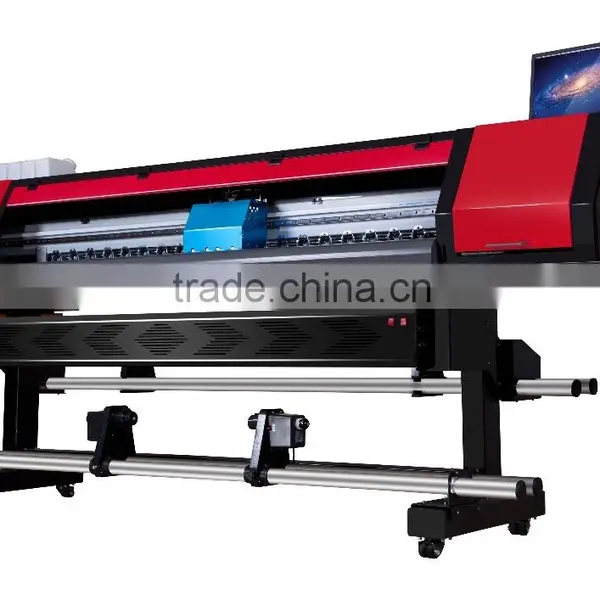

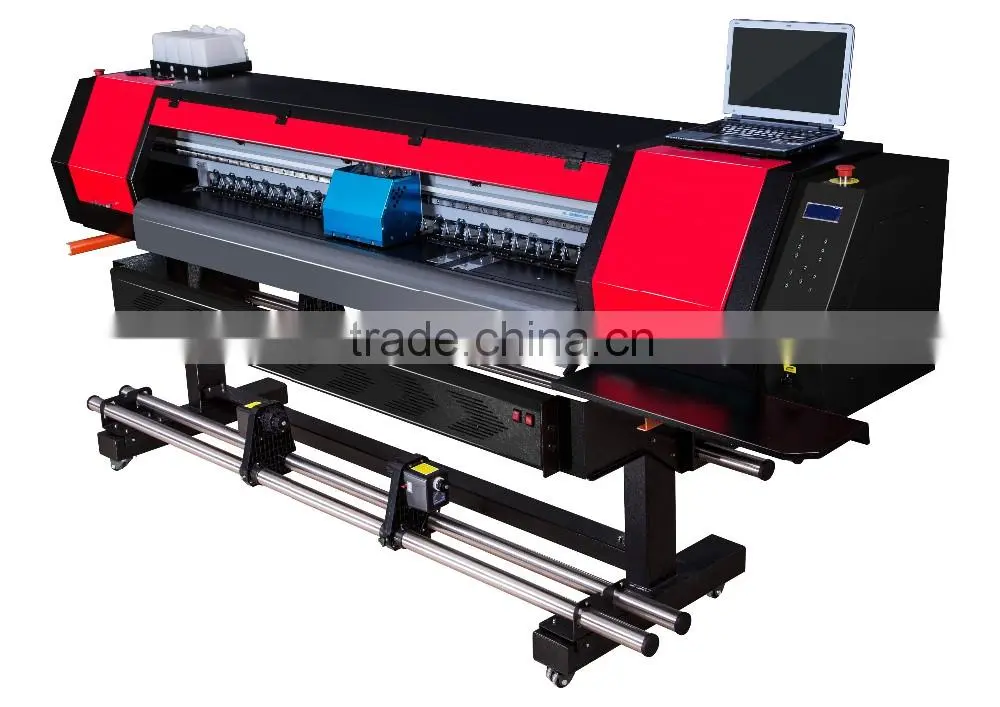

High quality Konica 512i Taims T208 plotter printing fabric digital printer for clothes plastic

High quality Konica 512i Taims T208 plotter printing fabric digital printer for clothes plastic

Advantages:

NO.1 High Resolution Guide Rail.

High standard galvanized steel girder, no creases and painting, height is 140mm, it's1cm higher than some other outdoor machines. We adopt imported famous rail which height is 20mm.The long belt is width is 15mm, these three partsnot only with long service life, but also works more stable and quiet ,which effectively reduce the noise of printing.

NO.2 Newly designed press rollers

The diameter for long round axle is 20mm, totally 20 press wheels, each two distance is 20mm, this can make sure the uniform pressure, avoid material wrinkling and precise feeding.What is more they can be detached separately, easy to be changed.

NO.3 Wide  And High -Tech Printing Platform

The printing platform width is 175mm, is wider than other konica head printer.The heating platform length is 300mm, the 2 factors reach the large format printer level. it significantly improved heating efficiency,

The advanced and reasonable structure can guarantee the height error within 0.05mm.

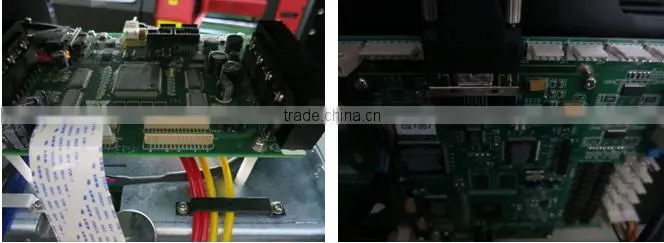

NO.4 Powerful functions boards system,can support the block head and the deciphered head.

Powerful functions units, can support the block head and the deciphered head.ensure machine output stably and effectively all the time

NO.5 Motor gears and fixing devices

Multiple created and improved motor gears and fixing devices, This system has the feature of high accuracy, high durability and abrasion resistance. Its quality is much better than any other system.ensure for precise printing and long stable working

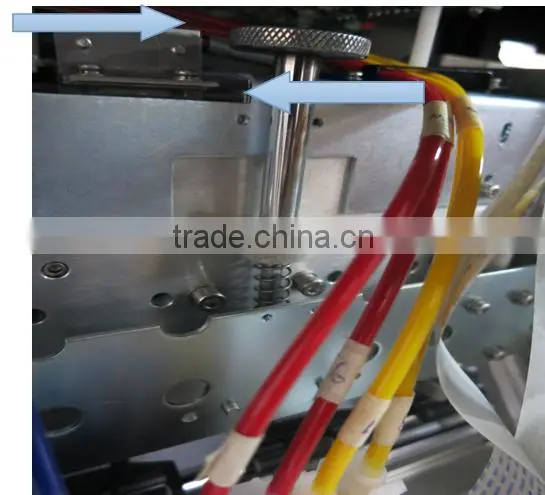

NO.6 Stepless carriage height adjustment

Stepless carriage height adjustment, easy for printing different kind materials

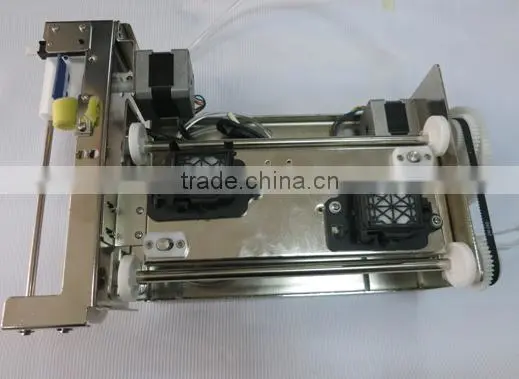

NO.7  Auto Moisture Ink Absorption System

          Four small circular guide rail can make sure the capping system accurate raising and descending.

Can protect printhead more efficiently. Cleaning printhead directly and avoid ink waste so to save running cost and improve working efficiency.

 NO.8 Lead shine 150w X Y axis double servo motor

Lead shine 150W X Y axis double servo motor,high precision,steadiness, long life , ensure the carriage running stable and guarantee the high printing quality.

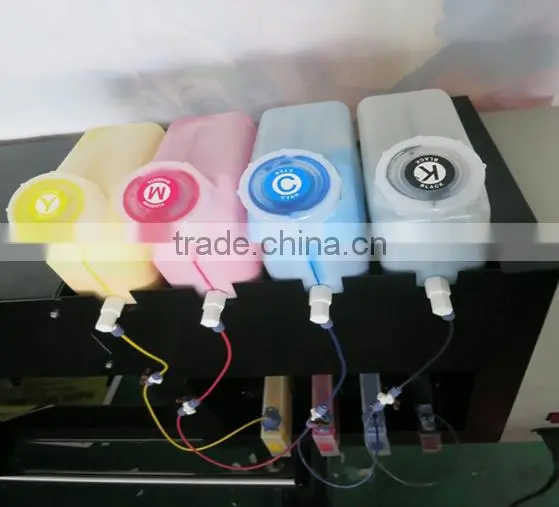

NO.9 XIBS INK SUPPLY SYSTEM

Adopt Japan classic design,the positive pressure more can effectively resolve the ink block as a result of significant changes of temperature and humidity because of distinct seasonal climate.

NO.10 Three-stage adjustable temperature heating

          Front ,middle, rear ,three sides of advanced surface treatment, high temperature resistance,

Corrosion resistance.Multiple 3 phases constant heating system promotes ink absorption of material, which makes printing clearer, dry faster and image stay for longer.

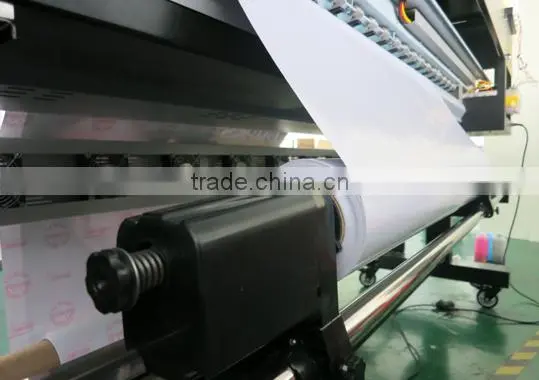

NO.11  Embedded Feeding up system

Embedded feeding up system specially for the self adhesive vinyl, the feeding structure can easily avoid wrinkling and skid of the media
