3.2m 1440 dpi eco solvent inkjet plotter with 2 DX5 printheads
Product: TAIMES T218 - DX5 - 2H Eco-Solvent Printer
Printhead: DX5 printhead
Printing Quality: 1440DPI
Printing Width: 3.2m
Printing materials:PP, vinyl sheet indoor, light box cloth, drawing paper canvas, vinyl, reflective material
2 PCS DX5 printhead Printing Speed:
Draft Mode : 4pass @ 30sqm/h
Production Mode: 6pass @24sqm/h
Quality Mode : 8pass @ 20sqm/h
The advantage of the machine:
NO.1: Optimize industry common standard T shape frame structure.
Main bottom frame was wholly milled by German imported 6 meter planer type milling machine, which error is only less than 0.05mm. Double layer trusses welding, bending resistance is far more better than thinmetal bending beam. Therefore, TAIMES printers are able to work more stable and long life than other machines.
NO.2 High Resolution Guide Rail.
High standard galvanized steel girder, no creases and painting, height is 140mm, it's 1cm higher than some other outdoor machines. We adopt imported famous rail which height is 20mm.The long belt is width is15mm, these three parts not only with long service life, but also works more stable and less noise.
NO.3 Newly designed press rollers
The diameter for long round axle is 20mm, totally 20 press wheels, each two distance is 20mm, this can make sure the uniform pressure, avoid material wrinkling and precise feeding.What is more they can be detached separately, easy to be changed.

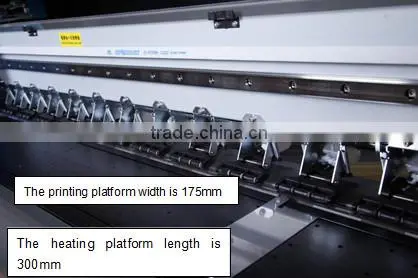

NO.4 Wide And High - Tech Printing Platform
The printing platform width is 175mm, is wider than other eco solvent printer.The heating platform length is 300mm, the 2 factors reach the large format printer level. it significantly improved heating efficiency, the advanced and reasonable structure can guarantee the height error within 0.05mm.
NO.5 Motor gears and fixing devices
Multiple created and improved motor gears and fixing devices, This system has the feature of high accuracy, high durability and abrasion resistance. Its quality is much better than any other system.ensure for precise printing and long stable working.

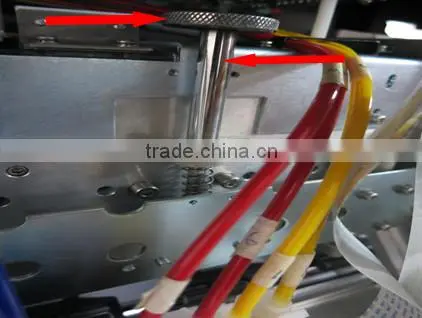

NO.6 Stepless carriage height adjustment.
Stepless carriage height adjustment, easy for printing different kind materials.
NO.7 Auto Moisture Ink Absorption System
Four small circular guide rail can make sure the capping system accurate raising and descending.
Can protect printhead more efficiently. Cleaning printhead directly and avoid ink waste so to save running cost and improve working efficiency.
NO.8 Lead shine 200w X Y axis double servo motor
Lead shine 200W X/Y axis double servo motor, high precision, steadiness, long life , ensure the carriage running stable and guarantee the high printing quality.

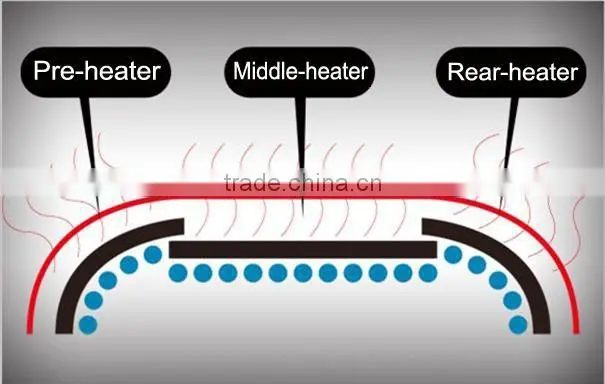

NO.9 Three-stage adjustable temperature heating
Front, middle, rear, three sides of advanced surface treatment, high temperature resistance, Corrosion resistance.Multiple 3 phases constant heating system promotes ink absorption of material, which makes printing clearer, dry faster and image stay for longer.

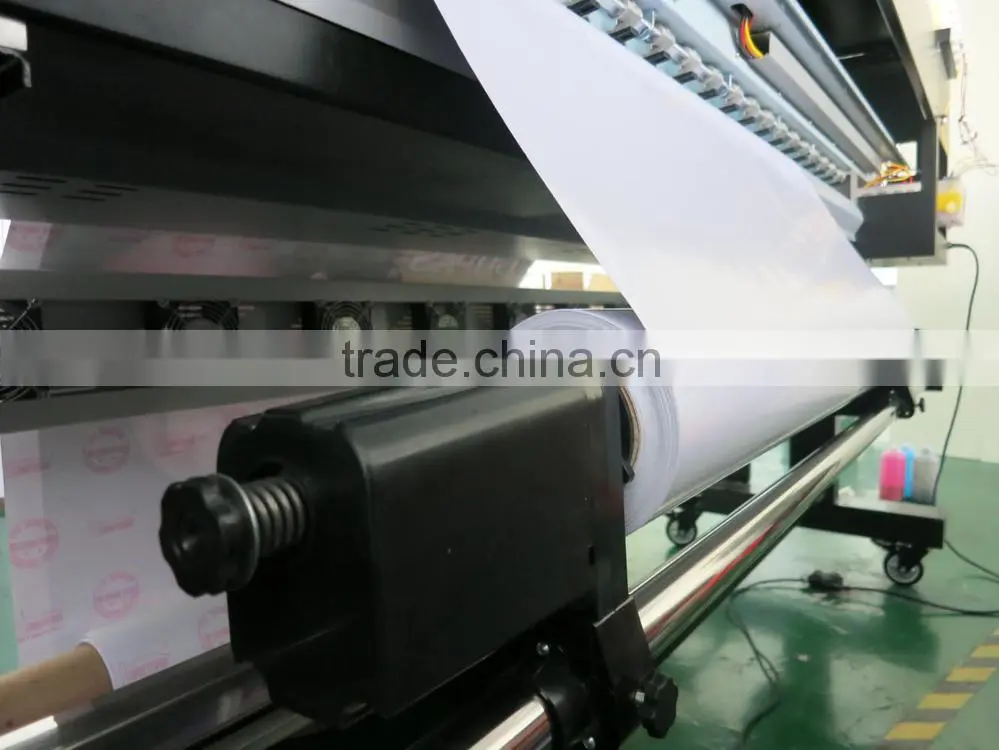

NO.10 Embedded Feeding up system
Embedded feeding up system specially for the self adhesive vinyl, the feeding structure can easily avoid wrinkling and skid of the media.
Techinical parameters:
Model |
TAIMES T218-DX5-2H ECO SOLVENT PRINTER |
||||
PrintHead |
Crystal Micro Piezo electric printhead D×5 |
||||
Number of Printhead |
1 head |
2 head |
|||
Maxmum Print Width |
3200mm |
||||
Printing Resolution |
360×360 360×720 360×1080 720×720 720×1080 1440×1440(dpi) |
||||
Print Speed |
4PASS |
15m²/hr |
30m²/hr |
||
6PASS |
12m²/hr |
24m²/hr |
|||
8PASS |
10m²/hr |
20m²/hr |
|||
16PASS |
6m²/hr |
12m²/hr |
|||
Ink |
Type |
Eco-solvent ink, water ink |
|||
Color |
4 colors(C,M,Y,K) |
||||
ink Supply System |
1L big ink bottle continuous ink supplying ,Block brake type of ink supply system |
||||
Media |
Width |
3200mm |
|||
Type |
PP, vinyl sheet indoor, light box cloth, drawing paper canvas, vinyl, reflective material |
||||
special function |
Printhead Height |
2-8mm Above Media step less Adjustable |
|||
Heating System |
Intelligent embedded heating system |
||||
Media Adsorption System |
Suction fan sucking step less adjustment |
||||
Auto Media System |
Equipped(Max Media Weight 60kg) |
||||
Auto Printhead Cleaning System |
Anti-clogged Flash Function & Moisturing System |
||||
Clamp |
Combined anti-warping Clamps |
||||
Auto take up system |
60kg heavy type take-up system |
||||
Print Interface |
Hi-USB2.0 |
||||
PIP software |
Photoprint, Maintop |
||||
Input power |
AC220V,50Hz / 60Hz 800W- 2500W |
||||
Working environment |
Temperature:18-32℃ Humidity:46-65% |
||||
Machine dimension |
L4,360x W790 x H1,170 mm |
||||
Package dimension |
L4,760 x W1000 x H1570 mm |
||||
Machine Dimension: L4,360x W790 x H1,170 mm; Net Weight: 420Kgs (926lbs)
Package Dimension: L4,760 x W1000 x H1570 mm; Gross Weight: 560Kgs (1,235lbs);

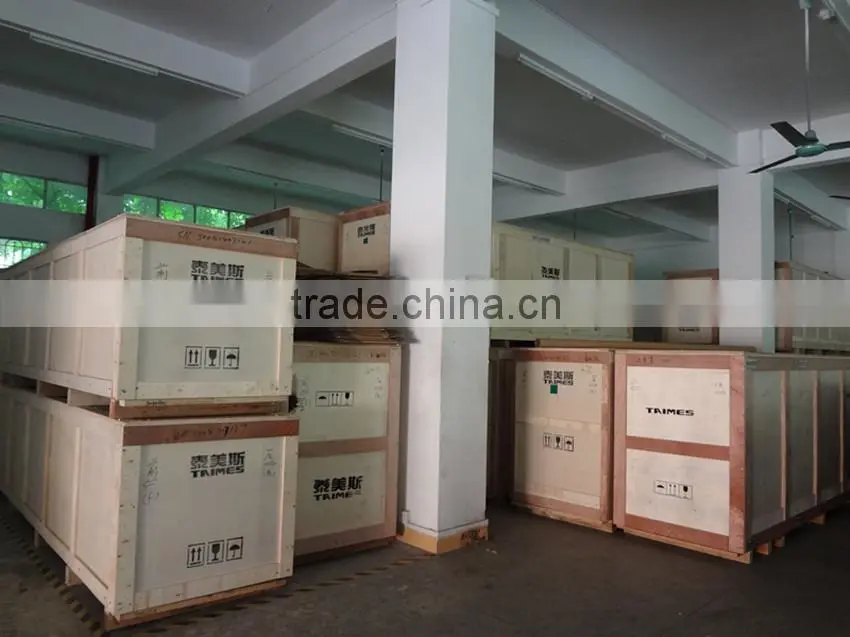

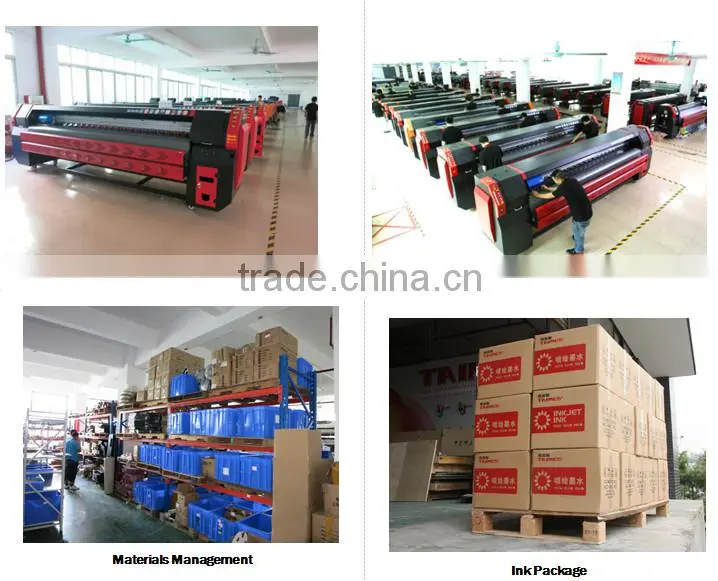

TAIMES believe and insist that, a good quality control is the first important and responsible service for customers. Therefore, from the screening of each component to various modules installation, then the entire machine test, even the final packaging before delivery, all process have to be gone through meticulous inspections.
Instant online support service
Besides the door to door service, TAIMES also provide support on telephone and online service etc to make sure that our experienced service team can solve the technical problems timely even we are not in your side.

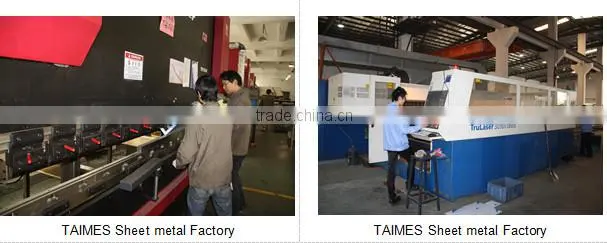

TAIMES Office and Sheet metal & Mechanical Factory
