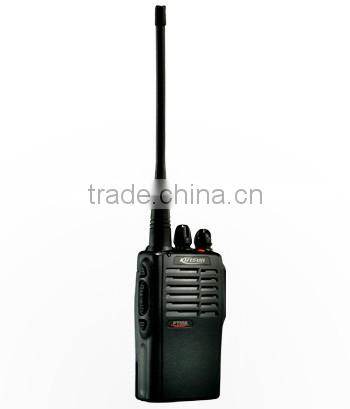

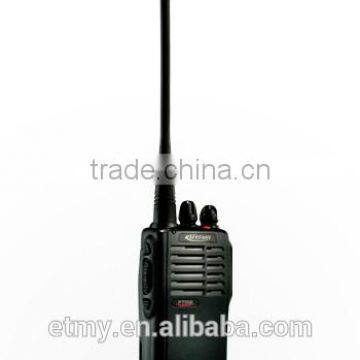

Kirisun PT558 DMR Professional Two-Way Radio
PT558 is a cost effective radio featuring reliable performance, compact design and easy carrying. It’s an ideal communication tool for users from commercial application.
Compact Size and Light Weight
Compact design allows this PT558 radio easy to carry.
Channel Annunciation
Channel annunciation offers convenience to users in special applications, such as working in the darkness.
Scan
The radio could continuously scan each channel in the scan list for active conversation.
Busy Channel Lockout
Prevents the interference with the on-going conversation. If BCL is ON the radio cannot transmit on the busy channel.
Long Battery Life
For better performance, 1200mAh are standard and 1600mAh are optional, the battery’s. life is up to 13 hours.
Wired Clone
To quickly set the parameters on a radio, you can clone the radio data from another radio with the supplied cloning cable, saving the time of parameter setting.
Emergency Alarm
Press the emergency button can trigger loud siren to give an alarm.
Monitor
To monitor whether the current channel has signal by pressing the preprogrammed key. The monitor function is used to reveive weak signal.
CTCSS/DCS
50 groups of standard CTCSS and 83 groups DCS are available(PC programmable). Built-in CTCSS/DCS Encoder/Decoder can prevent co-channel interference and unwanted
General | |
Frequency Range |
136~150MHz,146~174MHz 470~512 MHz, 446MHz |
Channel Capacity |
16 |
Channel Spacing |
12.5KHz/25KHz |
Operating Temperature |
-25℃~ +55℃ |
Operating Voltage |
7.4V DC |
Battery |
1000mAh Li-ion(Optional) 1200mAh Li-ion(Standard) 1600mAh Li-ion (Optional) |
Frequency Stability |
±2.5 ppm |
Dimension(with battery and antenna) |
56.5mm×102mm×29.5mm |
Weight(with battery and antenna) |
235g |
Transmitter | |
RF Power Output |
5W/1W(VHF),4W/1W(UHF) 0.5W(446MHz) |
Frequency modulation |
16KφF3E/11KφF3E |
Antenna Impedance |
50Ω |
Modulation Limiting |
±2.5KHz 12.5KHz, ±5KHz 25KHz |
Radiated Spurious Emission |
-36dBm < 1GHz |
FM Noise |
40dB 25KHz |
Modulation Distortion |
≤5% |
Receiver | |
Reference Sensitivity |
0.28μV 12.5KHz |
Adjacent channel Selectivity |
60dB 12.5KHz |
Intermodulation |
65 dB |
Spurious Response Rejection |
70 dB |
Rated Audio Output |
500mW |
S/N |
40/35 |
Rated Audio Distortion |
≤5% |
What and How to get it?
When you are considering which walkie talkie you should buy, there must be a question you may think about it package and delivery, what and how you will really get when you considering buy Etmy radio?
Why choose us?
Shipping terms
1-5 business days for sample order
5-10 business days for medium order
10-15 business days for OEM order
service
1. OEM & ODM serivice offered
2. Sample's fee can be refund after order reached 1000 sets.
3.Delivery can be Express:DHL,UPS, FedEx, EMS, TNT; shipping logistic etc & post office for samples
Warranty:
* Before delivery , we will check the items' quality strictly one by one .
* 12 months for radio body & 6month for accessories warranty, please contact us immediately when you get defective,thanks.
payment terms
Payment(shown on home page to customer anti cheater ): T/T, Western Union, escrow
(please do NOT believe anybody by Email say Our bank changed, thank you)
How to contact us?
Email: kelly at
Skype: ecome.gz
Trade Maneger: cn1510909062
Company information
Guangzhou Etmy Co., Ltd., founded in 2008, is a manufacturer specialized in the research, development and production of walkie-talkies. We are located in Guangzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
