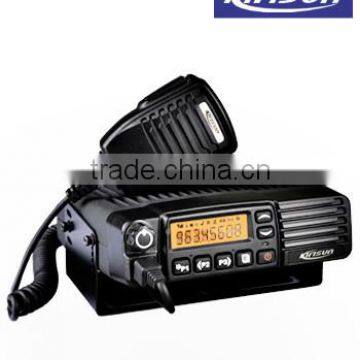

512 Channels and 33 Zones Kirisun Two Waybase PT8200 Mobile Radio

512 Channels and 33 Zones Kirisun Two Waybase PT8200 Mobile Radio thumbnail-1
512 Channels and 33 Zones Kirisun Two Waybase PT8200 Mobile Radio thumbnail-2
512 Channels and 33 Zones Kirisun Two Waybase PT8200 Mobile Radio photo-1
512 Channels and 33 Zones Kirisun Two Waybase PT8200 Mobile Radio photo-2
Negotiable MOQ: 2 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
KIRISUN
Model Number:
PT8200
Contact Supplier Request Quote Chat Now
Guangzhou Etmy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name KIRISUN
Model Number PT8200
Type Vehicle Mouted
Dimensions 170mm*170mm*52mm
Frequency Range 136~174MHz, 300-350MHz, 350-390MHz, 339-390M, 400~470MHz, 450~520MHz
Storage Channel 512
Talk Range 10-15km

Cheap band Kirisun PT8200 Professional 5W internal and 13W external speaker Mobile Radio



Product Description

512 channels and 33 zones kirisun two waybase PT8200 Mobile Radio

512 channels and 33 zones

512 memory channels on the PT8200 enable the mobile to accommodate a vast number of users and groups. 33 zones on the PT8200 enable the use to group different channels as a group and provide flexible in organizing work groups. In addition, Each zone and channel can be assigned with a customized name for easy identification.



Rugged and Reliable Construction

It meets MIL-810-C/D/E/F standards. Vibration and extreme temperature, salt fog test, low pressure, solar radiation have been done on the radio, which assure your durable use in the any harsh conditions.

Versatile Signaling built in

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS,MDC,KDC, DTMF capabilities as standard, it is flexible to fill different use need and support dispatch management.

Powerful Audio

Built in 5W internal and 13W external speaker and employ kirisun compander technology insure you hear clear, crisp voice even in noisy environment.



15 Pins Auxiliary Port

It is built in 15 pins auxiliary port for second develop use, such as GPS, data transmission, ignition, back to back repeater, external emergency in, channel change and so on.



6 programming Keys

6 programming keys allow you to customize you radio with choice of OST, power level set, emergency, Squelch level set, scrambler, voice expander, lone work, VOX level set, horn alert, talk around and so on.



Multiple emergency Mode

For enhanced user safety, lone work, security check is designed on this radio. It requires the user to reset at a predetermined interval, if not, the radio will automatically enter into emergency mode to ask help. During emergency, ENI & background and emergency alarm could be sent to dispatch center and partners.





Over-heating Protection

In case of long time transmission at high power and the temperature exceed preset result, the radio will automatically switch to mid power or low power to avoid over radio over heat. The over-heating temperature could be set by customer.



Wide Frequency coverage

With wide band frequency coverage including 136-174M, 300-350M,350M-390M, 339-390M, 400-470M, 450-520M, it is flexible for different market use.



Enhanced Call Function

Enhanced call management function including Emergency, PTT ID, call alert, radio check, kill/active, stun/revive, security inquire, private call, group call, message, status and so on.



OST Function

With OST function allow use to set CTC/DCS by programming key in each channel.



Horn Alert Function

On receiving 5Tone, 2Tone, MDC, DTMF or KDC decode, the radio could control the equipment on the vehicle such as light or speaker. It will alert user to incoming call, even away from the vehicle.



Built-in Scrambler
With scrambler feature provides enhanced security for your important public safety and private security communications



GPS (Optional)

The PT8200''''''''s GPS function, supported by control center and management software, allows uses to be located instantly, either to dispatch among group or locate of an emergency call. Allowing for more efficient use of resources or determining location in life-threatening situations.

512 channels and 33 zones kirisun two waybase PT8200 Mobile Radio



General

Frequency Range

136~174MHz, 300-350MHz,

350-390MHz, 339-390M,  400~470MHz, 450~520MHz

Channel Capacity

512

Channel Spacing

12.5KHz/20KHz/25KHz

Operating Temperature

-30℃~ +60℃

Operating Voltage

13.6V DC ± 20%

Frequency Stability

±2.5 ppm

Dimension

170mm×170mm×52mm

Weight

1690g

Transmitter

RF Power Output

50W/25W/5W (VHF)

45W/25W/5W (UHF)

Frequency modulation

16K φ F3E / 11K φ F3E

Antenna Impedance

50Ω

Modulation Limiting

±2.5KHz12.5KHz, ±4KHz  20KHz, ±5KHz 25KHz

Radiated Spurious Emission

-36dBm < 1GHz
-30dBm > 1GHz

FM Noise

45dB 25KHz
40dB 12.5KHz

Modulation Distortion

< 3%

Receiver

Reference Sensitivity

0.28μV  12.5KHz
 0.25μV 20/25KHz

Adjacent channel Selectivity

60dB 12.5KHz
70dB 20/25KHz

Intermodulation Rejection

65 dB

Spurious Response Rejection

70 dB

Rated Audio Output

4W

S/N

45/40

Rated Audio Distortion

≤3%





512 channels and 33 zones kirisun two waybase PT8200 Mobile Radio



MOQ

2-500PCS

OEM/ODM

ACCEPTED

DELIEVERY TIME

5-7 DYAS (SAMPLE); 20-25 DAYS (MASS)

CERTIFICATE

CE/FCC/ROHS

SAMPLE SUPPORT

SAMPLE IS AVAILABLE, CHARGING COST WILL BE SPECIAL
