Flange Forged Steel Globe Valve JIS / API Standard
- Qingdao/Shanghai/Tianjin/Guangzhou for Oil Pipeline Valves
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Other, Standard or custom design | Structure | Stop | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Other, WCA/WCB/WCC | Temperature of Media | Medium Temperature | |
| Media | Other, Water,oil,steam | Port Size | DN15-DN300 | |
| Place of Origin | Tianjin, China | Model Number | Forged steel globe valve | |
| Brand Name | BUNDOR | Application | General |
Product Description

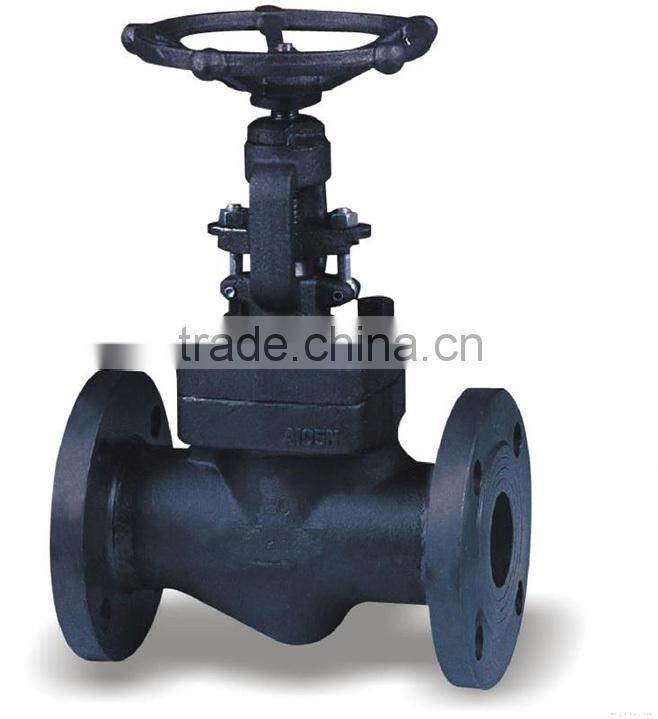

Flange Forged steel globe valve JIS / API Standard
Name:Flange Forged steel globe valve JIS / API Standard
Nominal Diameter:DN50-DN800
Nominal Pressure:1.0-1.6Mpa
Standard:ANSI, BS, DIN
Working Temperature °C:-10-120
Plate:Ductile iron
Sealing ring:rubber
Suitable Mediums:Fresh water, Sewage,Sea water, Air, Steam etc
Standard Material Specifications
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
| 6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 8 | Pin | A276 420 | A276 304 | ||
| 9 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 12 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 420 | |||
| 14 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Nameplate | SS | |||
| 16 | Handwheel | A197 | |||
| 17 | Bearing Gasket | A473 431 | |||
| 18 | Stem Packing | Flexible Graphite | PTFE | ||
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29 425 font | -29 550 font | -29 180 font | ||
Dimensions (mm) and Weights (Kg)
NPS | Conv. | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| |
| Full |
| 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
| L | 92 | 111 | 111 | 120 | 120 | 140 | 178 | 210 | ||
| H(OPRN) | 169 | 197 | 197 | 236 | 246 | 283 | 330 | 354 | ||
| W | 100 | 125 | 125 | 160 | 160 | 180 | 200 | 240 | ||
| Weights | Bolted | 2.5 | 4.3 | 4.2 | 6.6 | 8.8 | 12.5 | 17.2 | 23.5 | |
| Welede | 2.4 | 4.2 | 4.0 | 6.3 | 8.7 | 12.1 | 17.2 | 22.0 | ||

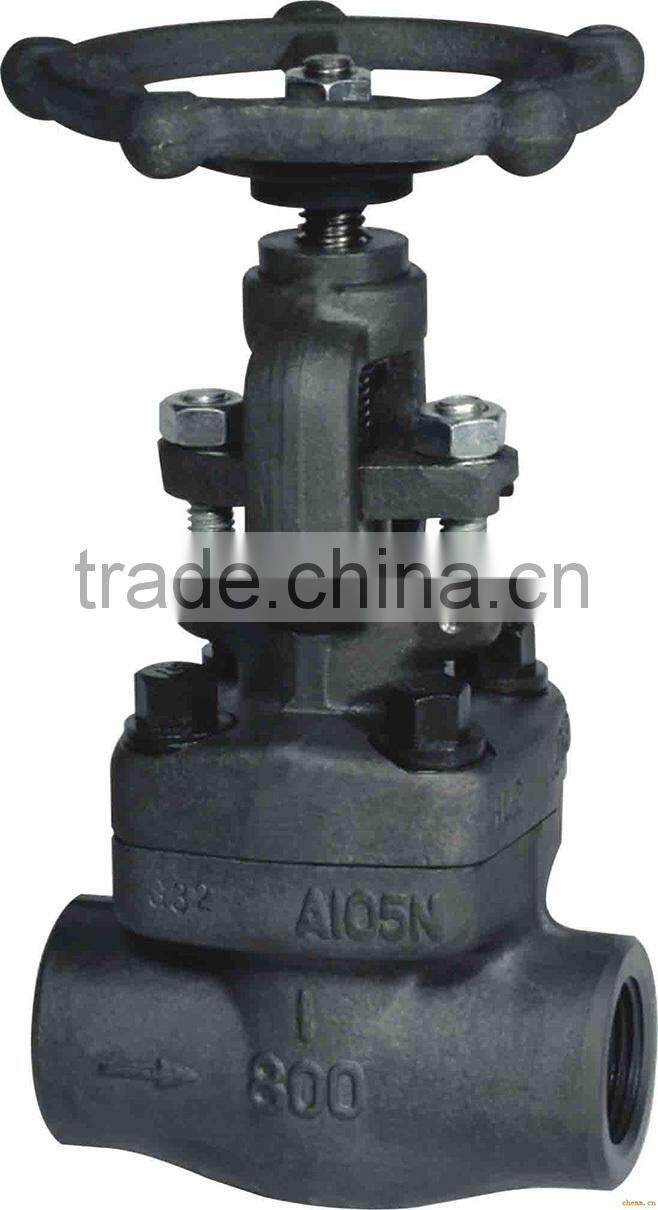

Forged globe valve applies to working temperature -29 ~ 450 ℃ (steel) or -29 ~ 500 ℃ (stainless steel) in small-diameter pipe to cut off and connect media, respectively apply to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media according to different materials
In the 20 years, we have customers in many countries around the world.
1.We promise no leakage and breakage for valves. Every butterfly valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
.
