BV Approved B62 C83600 Gunmetal Globe Valve
- tianjin/shanghai/qingdao/ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
BV Approved Sdnr Globe Valve
-
PN1.6Mpa Ppr Pipe Fittings Stop Valve
-
Throttle Globe Valve Of Supplier
-
Ppr Fittings Stop Valve Ppr Fittings Stop Valve Made in China
-
Polished Chrome Brass Stop Valve Polished Chrome Brass Stop Valve Made in China
-
Plastic Angle Stop Valve Plastic Angle Stop Valve Made in China
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Other, Medium Pressure, PN1.0-PN1.6 | Power | Manual | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN15-300mm | |
| Place of Origin | Tianjin, China | Model Number | JINERJIAN b62 c83600 gunmetal globe valve | |
| Brand Name | JIENRJIAN |
Product Description

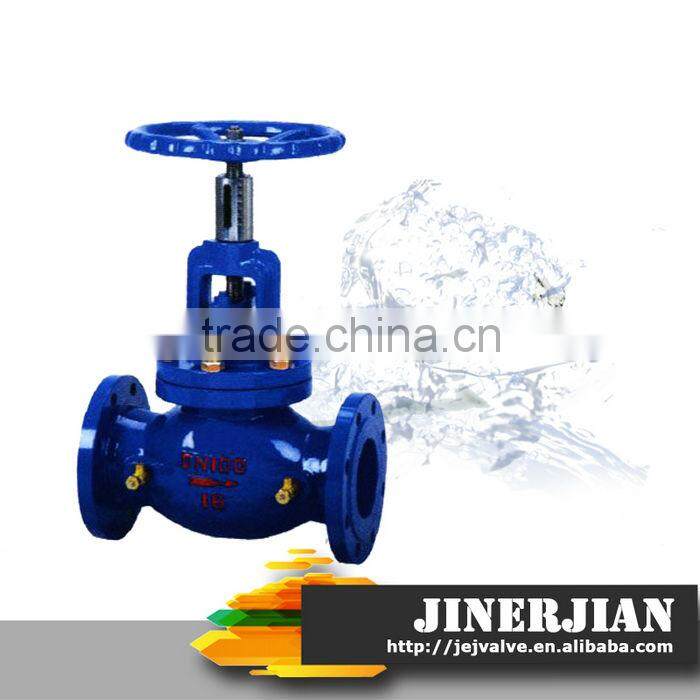

BV approved b62 c83600 gunmetal globe valve
1.Applications:
BV approved b62 c83600 gunmetal globe valve apply to fully open all kinds of piping or equipment fitted in the medium run, does not allow for throttling. The handwheel clockwise to shut down, and vice for open, flow direction of medium and body arrow is consistent,assistant lever must not be used as open or closed. |
2.BV approved b62 c83600 gunmetal globe valve main parts material globe valves:
Parts name | Body, Bonnet | Disc | Seal ring | Stem | Padding | ||
Material name | Gray Cast Iron | Stainless Steel | Brass | Carbon Steel | PTFE | ||
Nominal Pressure | PN1.6 | ||||||
Suitable Mediums | Water, oil, air and non-corrosive mediums | ||||||
Working Temperature | ≤200°C | ||||||
Performance Standard | GB/T8464-1998 | ||||||
Testing standard | GB/T13927-1992 | ||||||

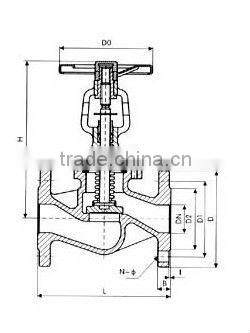

3.BV approved b62 c83600 gunmetal globe valve of parameters:
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 |
G | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 |
L | 65 | 75 | 95 | 105 | 120 | 140 | 165 |
L1 | 11 | 13 | 15 | 17 | 18 | 20 | 23 |
D0 | 55 | 60 | 80 | 90 | 100 | 120 | 140 |
S | 28 | 34 | 43 | 50 | 62 | 72 | 90 |
H | 97.5 | 112 | 127.5 | 135 | 162.5 | 185 | 220 |
kg | 0.6 | 0.9 | 1.4 | 2.9 | 3.3 | 5.1 | 8.7 |
4.Our products features:
1.Small in size and light in weight. Easy installation and maintenance.
It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
5.BV approved b62 c83600 gunmetal globe valve typical application:
1.Water works and water resource project
2.Environment protection
lic facilities
4.Power and Public utilities
5.Building industry
6.Petroleum, chemical
7.Steel, metallurgy
8.Paper making industry
If you have any question,please contact us.
We will all-weather services for you!
....
