Specifications
1. Strength2. Cost-efficient production
3. Ease of installation
4. Wide range of uses

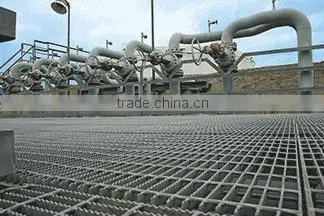

Welded Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.
Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
Features:
Good strength;
Cost-efficient;
Easy to install.
Applications:
Gratings for walkways and platforms;
Safety barriers;
Gratings for drainage covers;
Ventilation gratings.
Welded steel gratings is widely used in construction reinforcement and other fields.
Features:
Good strength;
Cost-efficient;
Easy to install.
Applications:
Gratings for walkways and platforms;
Safety barriers;
Gratings for drainage covers;
Ventilation gratings.
Please specify the following when ordering our gratings:
1: Center to center distance of the grating bars;
2. Panel width;
3. Panel length;
4. Bar width.

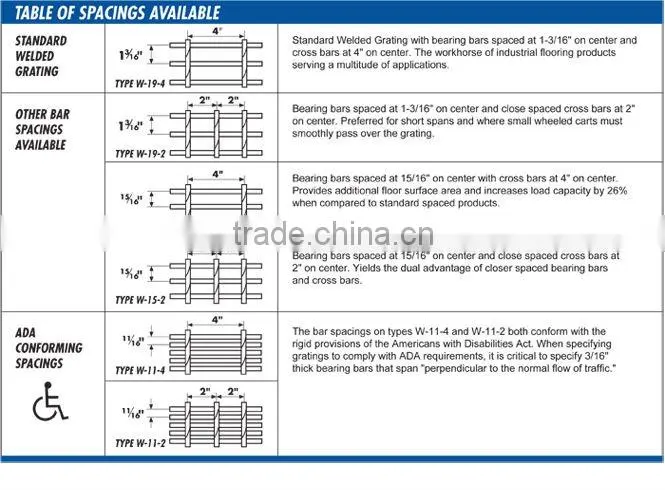

Typical center to center distances of the gratings:
30mm Gratings: This is the most strong industrial steel gratings. Widely used in metallurgy, drainage, stair treads, chemical plants, walkway, etc.
40mm Gratings: This is the most economic type widely used for light bearing surface, walkway, stair gratings, etc.
60mm Gratings: This kind is special for mine industry gratings.
