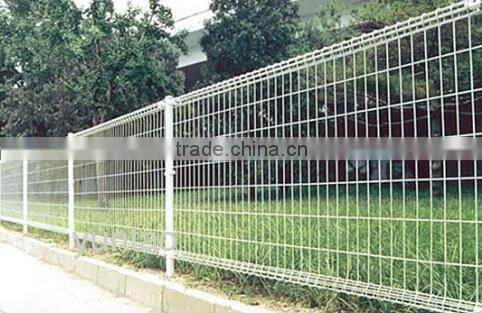

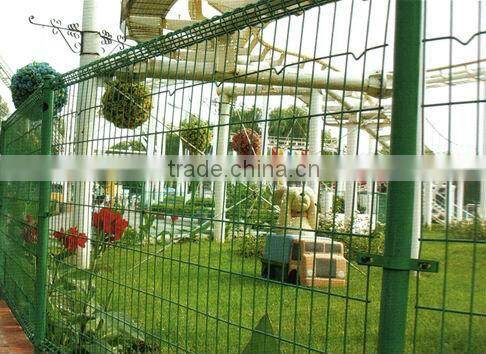

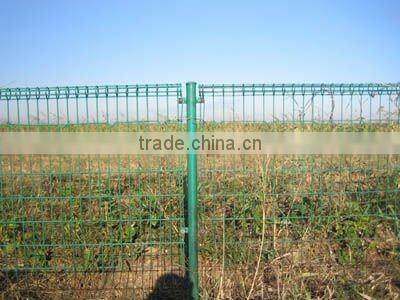

Double Loop Decorative Fence utilize friendly top “rolled” edges to enhance safety and rigidity. The welded mesh panels of double loop fence have loops on the top and bottom edges. The posts with plastic caps connect with the panels while retaining high rigidity. Few fittings with expansion screws ensure easy installation.
Structure:
The edges are cylinder rolled with cold-drawn low-carbon steel wire, forming a whole with the mesh sheet.
Advantages of Double Loop Fence:
1. Attractive appearance
2. The double loop and roll top welded mesh panels are extremely decorative and elegant while retaining high quality, low maintenance and optimum performance.
3. High rigidity
The rolled beam profile on the top and bottom edges of each panel results in maximum rigidity.
4. Longevity
The polyester coating ensures long service life.
5. Different colors making the fence more attractive
6. User friendly
Double loop fence and roll top fence utilize friendly top “rolled” edges to enhance safety and rigidity.
Application of Double Loop Fence:
The Double Loop Fence can be used for highways, airports, municipal green space, garden flower beds, units green space and port green space of the decorative and protective.
Double Loop Fence & Roll Top Fence Panels:
Double loop welded mesh panels

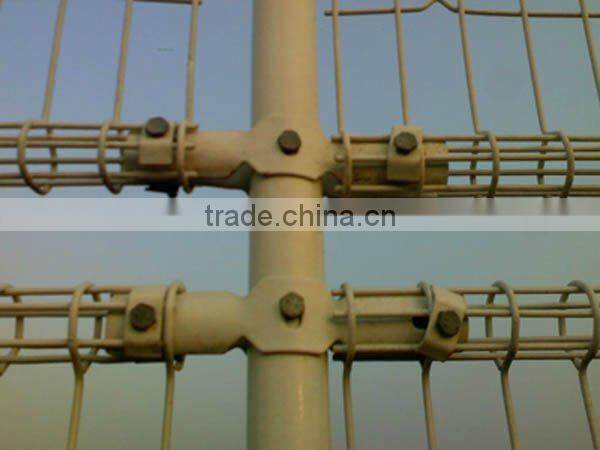

The welded mesh panels of double loop fence have loops on the top and bottom edges. The posts with plastic caps connect with the panels while retaining high rigidity. Few fittings with expansion screws ensure easy installation.
Roll top welded mesh panels
The roll top fence mainly acts as horizontal support spanning between the posts. The open mesh configuration is also decorative in appearance with excellent visual effect.
Specifications of Double Loop Fence & Roll Top Fence
Mesh Pattern: 150X50mm
Wire Diameter: 4.5mm-5mm
Anti-corrosion forms include electrogalvanizing, hot dip galvanizing, PVC spraying and PVC coating. Welded mesh panels are PVC coating after being galvanized. Color coating is usually green and white, and other colors are also available
The Roll Top fence | ||||
|
Panels |
Posts |
||
Fence Height m |
Panel Size Height/Width mm |
O/A Length |
Number of Fixings Inters |
Number of Fixings Corners |
0.9 |
900 x 3000 |
1500 |
3 |
6 |
1.2 |
1200 x 3000 |
1800 |
4 |
8 |
1.5 |
1500 x 3000 |
2100 |
4 |
8 |
1.8 |
1800 x 3000 |
2500 |
5 |
10 |
