Specifications
No explosive burning stone gravel best choicestrong driving force
reliable performance
easy operation
flexible work

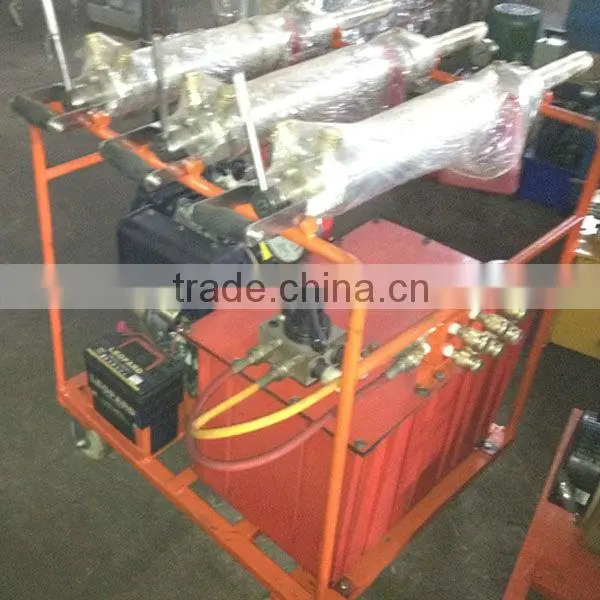

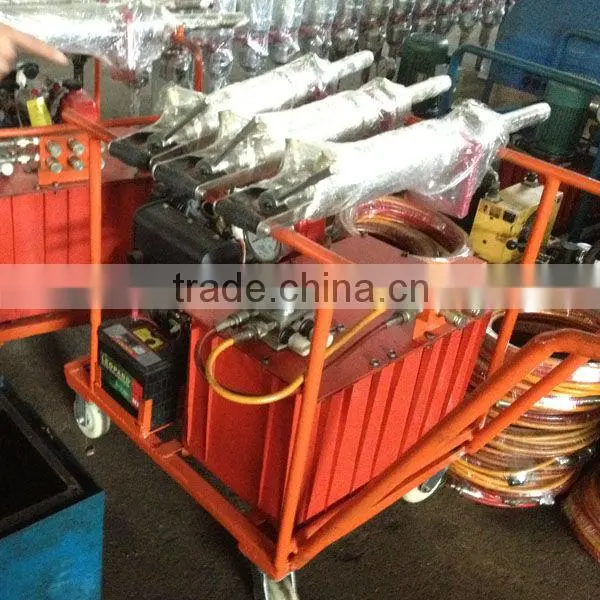

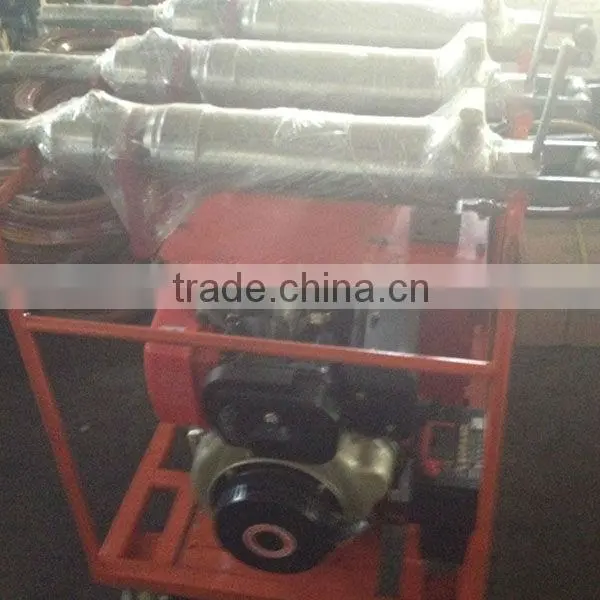

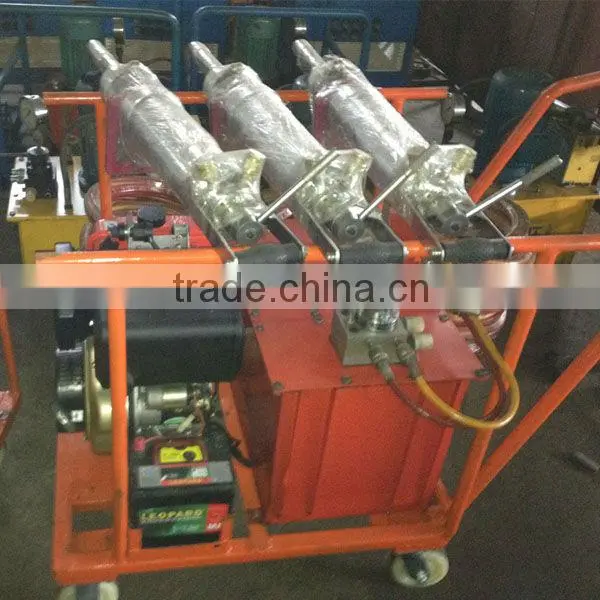

Hydraulic rock splitter
splitters are also known as rock splitting machines,mountain-cutting machines etc,and in accordance with the type of the power station,can be divided into three types:electric,diesel and gasoline types.According to the division gun material can be divided into:steel division gun and aluminum alloy division gun.The other can also according to the size of the power split gun to classificationa set of hydraulic splitting machine is mainly composed by one or more division gun,a hydraulic power station,a transport plane,a set of high and low pressure hydraulic connection tube and quick connector.
electric power station specification
dimension:384*280*620mm
weight:75kg
Tank:40L
working medium:NO46 or 68antiwear hydraulic oil
power:4KW
working pressure:55-60Mpa
working flow:2-13L/m
split gun specification
Model:BY(38-40)B
diameter:38-42mm
Min depth of drill holes:≥600
length of wedge block:300mm
crack width:10-40mm
splitting time:5-12s
theory division force:600T
actual division force:480T
weight:28kg
