Specifications
hydraulic rock splitterstrong driving force
reliable performance
easy operation
flexible work

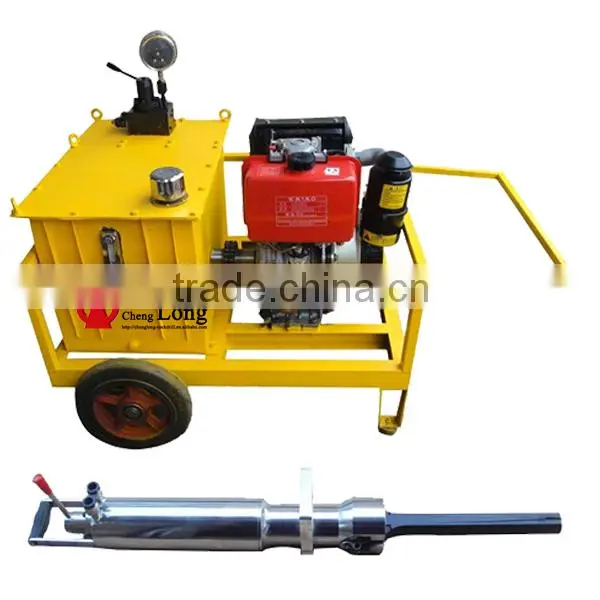

hydraulic rock splitter
Hydraulic rock splitter for mine,the same efficiency and capability with DARDA splitter.
Hydraulic rock splitter for mine:
Splitting Cylinders are handheld demolition devices, which controllably split material with the use of hydraulic pressure . Above all they convince, when larger conventional demolition devices are ruled-out because they produce dust, flying debris, vibrations, noise and possibily exhaust fumes.fumes.
Feature:
1)Enormous splitting force up to 410 tons
2)Dust free and near silent operation
3)Vibration free
4)Light weight
5)Precision work
6)Always controllable
7)For use in close quarters and hard to access places.
8)Easy handling

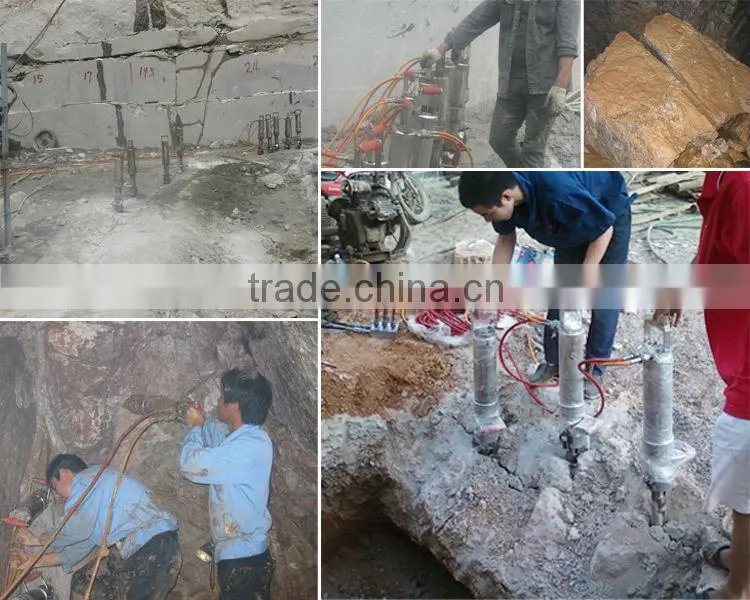

Applications:
1)Demolition of concrete and reinforced concrete
2)Demolition of rock and natural stone
3)Block quarrying in the natural stone industry
Motor type |
Specification (MM) |
Weight (KG) |
Capacity of tank (L) |
Working Pressure(Mpa) |
Power |
Working Medium |
Work Flow (L/M) |
Configurable splitting hammer number (Piece) |
Diesel Type |
1150*750*800 |
120 |
25 |
55-60 |
4HP |
46 or 68 anti-wear hydraulic oil |
2-13 |
1-3 |
1280*1180*940 |
145 |
45 |
55-60 |
7.7HP |
2-13 |
3-6 |
||
Electric Type |
380*240*410 |
60 |
25 |
55-60 |
2.2KW(220V/380V) |
2-13 |
1-10 |
|
384*280*620 |
75 |
30 |
55-60 |
4KW(380V) |
13 |
1-10 |
||
450*410*700 |
100 |
40 |
55-60 |
5.5KW(380V) |
2-13 |
1-10 |
||
Anti-explosion Electric Type |
380*240*410 |
60 |
25 |
55-60 |
2.2KW(380V/660V) |
2-13 |
1-10 |
|
384*280*620 |
75 |
30 |
55-60 |
4KW(660V/1140V) |
2-13 |
1-10 |
||
Pneumatic Type |
284*285*620 |
100 |
40
|
55-60 |
2000r/m, 4.04KW,5.5HP |
2-13 |
1-10 |
|
Gasoline Type |
1200*1170*800 |
100 |
40 |
55-60 |
7.5HP |
2-13 |
1-10 |
