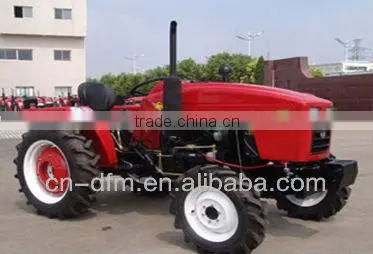

304A Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor)
Specifications
1, 20~50HP tractor EPA 4 approved2, 16~50HP tractor EEC approved offer COC report
3, All OECD approved
304A tractor, 30hp 4wd tractor
-3 cylinder diesel engine
-6+2 Gearshift
-Single or dual stage clutch
| Tractor Parameters |
Model | JM-304E | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm): | 3352*1485*2420 | ||
| Wheel Track(mm) | Front | 1200 | |
| Rear | 1200-1500 | ||
| Wheel Base(mm) | 1833.5 | ||
| Ground Clearance (mm) | 292 | ||
| Rated Traction Force(N) | 6400 | ||
| Construction Mass(kg) | 1935 | ||
| Min.Turning Radius(m) | 4.15 | ||
| Theoretical Speed (With out creeper gear(km/h) | Forward | 2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867 | |
| Reverse | 2.861,13.2 | ||
| Engine Specifications |
Model | 4L22T1 | |
| Type | 4-cylinder, Vertical water-cooled, 4 stroke cycle |
||
| Rated Power(kw/hp) | 22.1/30 | ||
| Rated Speed (rpm) | 2350 | ||
| Bore*Stroke(mm) | 85*95 | ||
| Total Displacement(L) | 2.156 | ||
| Drive System |
Clutch | Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear,External,Gearing | ||
| Travelling Mechanism |
Tyre | Front | 7.50-16 |
| Rear | 11.2-24 | ||
| Steering Gear | Power Steering | ||
| Brake | Disc type | ||
| Working Device |
Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 4900 |
| 3-Point Suspension | Category:I | ||
| P.T.O Shaft |
Rotating Speed (rpm) |
540/1000 | |
| Spline Size | 6-35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY,HYDRAULIC STEERING, DUAL STAGE CLUTCH |
||

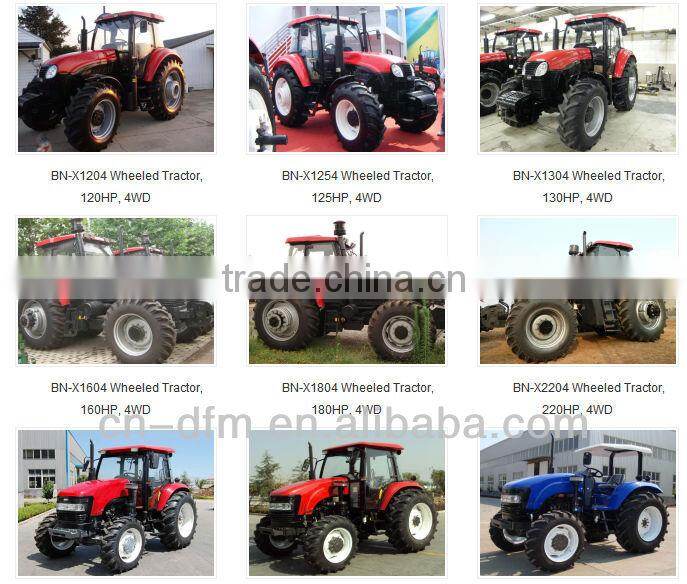

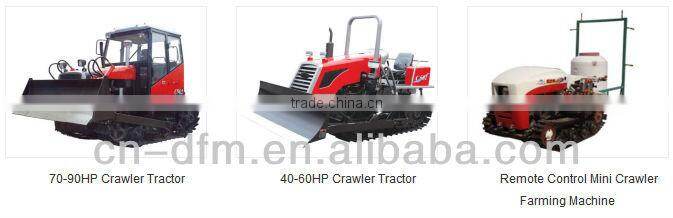

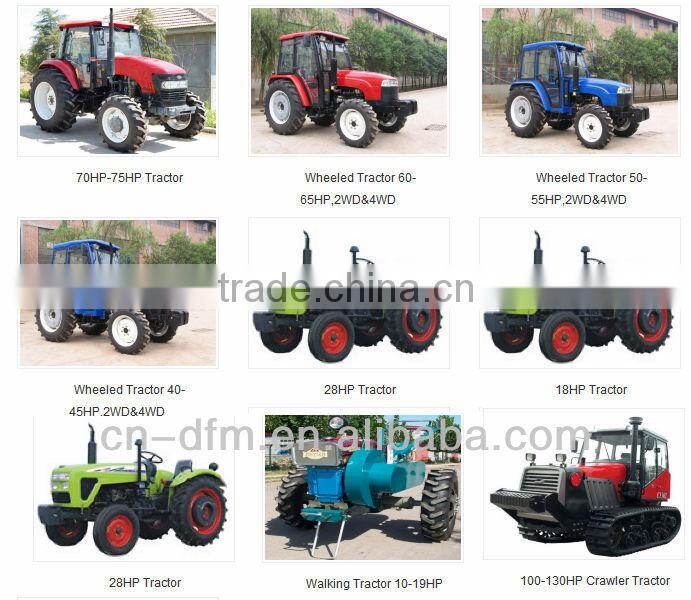

Other Farming Tractor Series:
