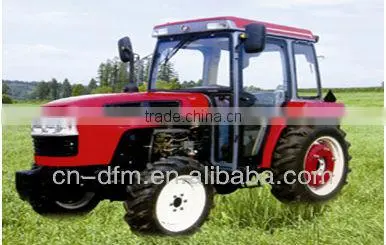

354E Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor)

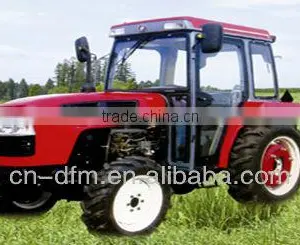

354E Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor) thumbnail-1
354E Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor) photo-1
US$ 5,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 40HP
Certificate EEC
Brand Name Dongfeng
Model Number 404
Place of Origin China
After-sales Service Provided Overseas service center available

Specifications

1, 20~50HP tractor EPA 4 approved
2, 16~50HP tractor EEC approved offer COC report
3, All OECD approved

404 tractor, 40hp 4wd tractor
-3 cylinder diesel engine
-6+2 Gearshift
-Single or dual stage clutch

Tractor
Parameters

Model

DF-404

Drive Type

4WD

Overall Dimensions L*W*H(mm):

3820x1625x2120

Wheel Track (mm)

Front

1300

Rear

1300-1600

Wheel Base(mm)

1943

Ground Clearance (mm)

325

Rated Traction Force(N)



10320

Construction Mass(kg)

2101

Min.Turning Radius(m)

3.5

Theoretical Speed(Without creeper) ( km/h)

forward

2.054,3.017,4.905,6.440,9.224,13.550,22.028,28.923

reverse

3.047,4.477,7.278,9.556

Theoretical Speed(With creeper)(km/h)

forward

0.307,0.452,0.735,0.964,1.381,2.028,3.297,4.328

Reserve

0.456,0.670,1.090,1.431

Engine
Specifications







Model

SL3105/490BT

Type

3/4-Cylinder 4-stroke cycle water cooled

Rated Power(kw/hp)

29.4/40

Rated Speed (rpm)

2200/2400

Bore*Stroke(mm)

105*117/90X105

Total Displacement(L)

3.039/2.672

Drive
System

Clutch

Single-function dry constant meshing

Gear Box

4*(2+1)Sleeve gear

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transmissions

Planeatry reduction gear

Travelling
Mechanism

Tyre

Front

7.50-16

Rear

11.2-28

Steering Gear



Hydraulic steering

Brake

Oil immerszd multiplate disc

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

6700

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000
Or 540/1000

Spline Size

6- 35Rectangular Spline

OPTIONS

SAFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB






Other Farming Tractor Series:

 354E tractor, farming tractor, tractors price (20HP 4WD tractor)354E tractor, farming tractor, tractors price (20HP 4WD tractor)354E tractor, farming tractor, tractors price (20HP 4WD tractor)

Sales manager: Ms. Dream Chen

Dongfeng Group

Dongfeng Mid-south Enterprise Co., Ltd.

Cell: 0086-18538016313

Skype:overseas_dongfeng04
