354E Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor)

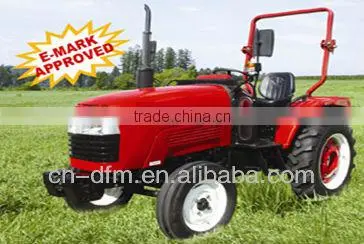

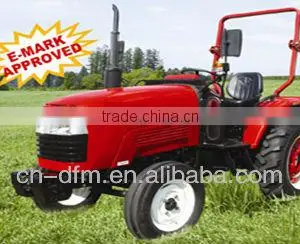

354E Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor) thumbnail-1
354E Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor) photo-1
US$ 5,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 35HP
Certificate EEC
Brand Name Dongfeng
Model Number 354E
Place of Origin China
After-sales Service Provided Overseas service center available

Specifications

1, 20~50HP tractor EPA 4 approved
2, 16~50HP tractor EEC approved offer COC report
3, All OECD approved

354E tractor, 35hp 4wd tractor
-3 cylinder diesel engine
-6+2 Gearshift
-Single or dual stage clutch

Tractor
Parameters

Model

DF-354E

Drive Type

4WD

Overall Dimensions L*W*H(mm):

3352*1485*2420

WheelTra(mm)

Front

1200

Rear

1200-1500

Wheel Base(mm)

1833.5

Ground Clearance (mm)

292

Rated Traction Force(N)

8800

Construction Mass(kg)

1935

Min.Turning Radius(m)

4.15

Theoretical Speed (With out creeper gear(km/h)

Forward

2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867

Reverse

2.861,13.2

Engine
Specifications

Model

4L22T

Type

4-cylinder, Vertical
water-cooled,
4 stroke cycle

Rated Power(kw/hp)

25.7/35

Rated Speed (rpm)

2350

Bore*Stroke(mm)

85*95

Total Displacement(L)

2.156

Drive
System

Clutch

Dual stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmissions

Spur Gear,External,Gearing

Travelling
Mechanism

Tyre

Front

7.50-16

Rear

11.2-24

Steering Gear

Power Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

5800

3-Point Suspension

Category:I

P.T.O
Shaft

Rotating
Speed (rpm)

540/1000

Spline Size

6- 35Rectangular Spline

OPTIONS

ROLL BAR,CANOPY,HYDRAULIC STEERING,DUAL STAGE CLUTCH



Other Farming Tractor Series:

 354E tractor, farming tractor, tractors price (20HP 4WD tractor)354E tractor, farming tractor, tractors price (20HP 4WD tractor)354E tractor, farming tractor, tractors price (20HP 4WD tractor)
